Home >> Honda >> 1990 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cooling System >> System Diagram

System Diagram

Component Location:



Engine Block Drain Bolt:

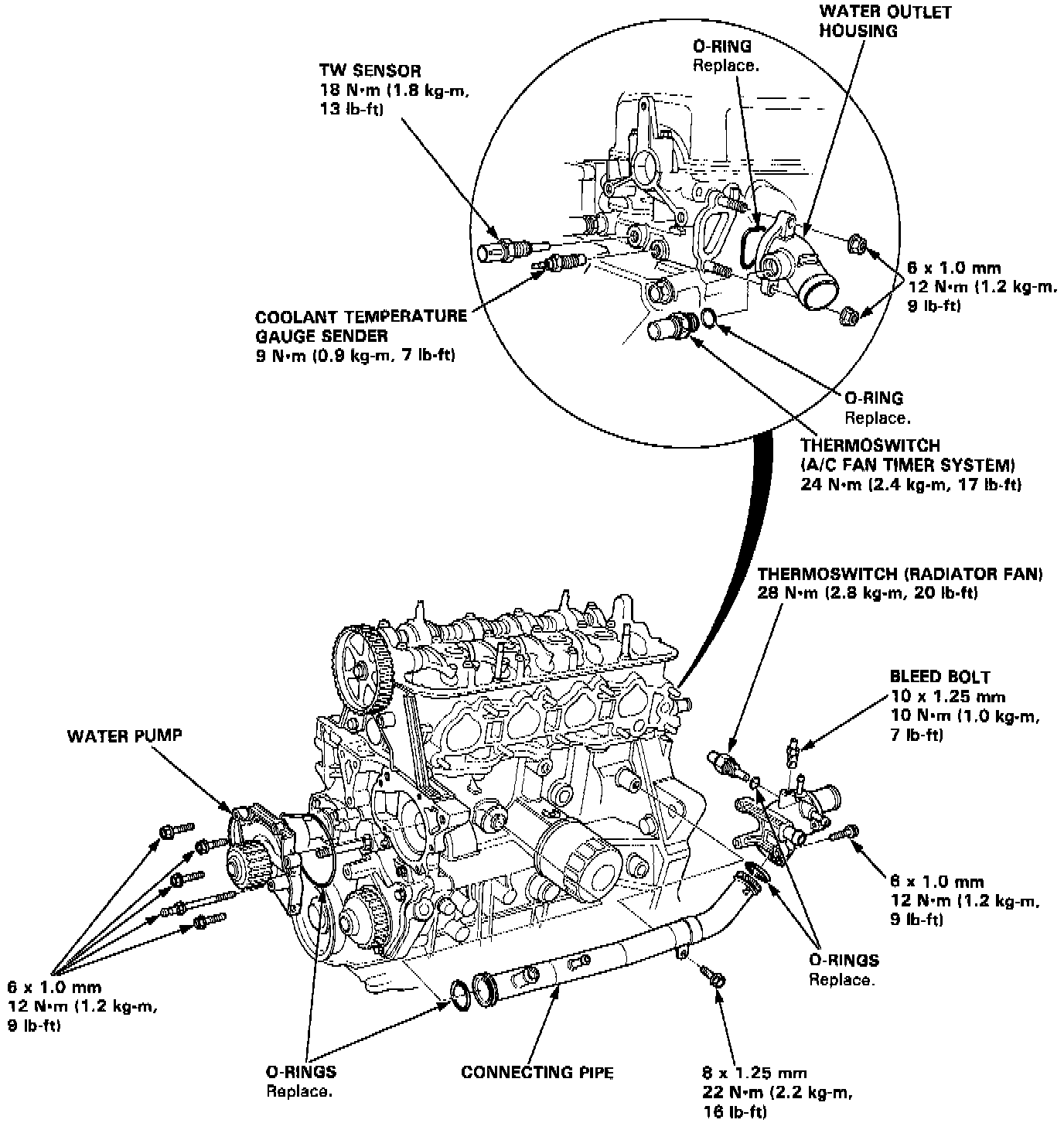

Cooling System Components:



Cooling Fan Components:
