Home >> Honda >> 1987 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Control Box Component Locations (M/T)

Control Box Component Locations (M/T)

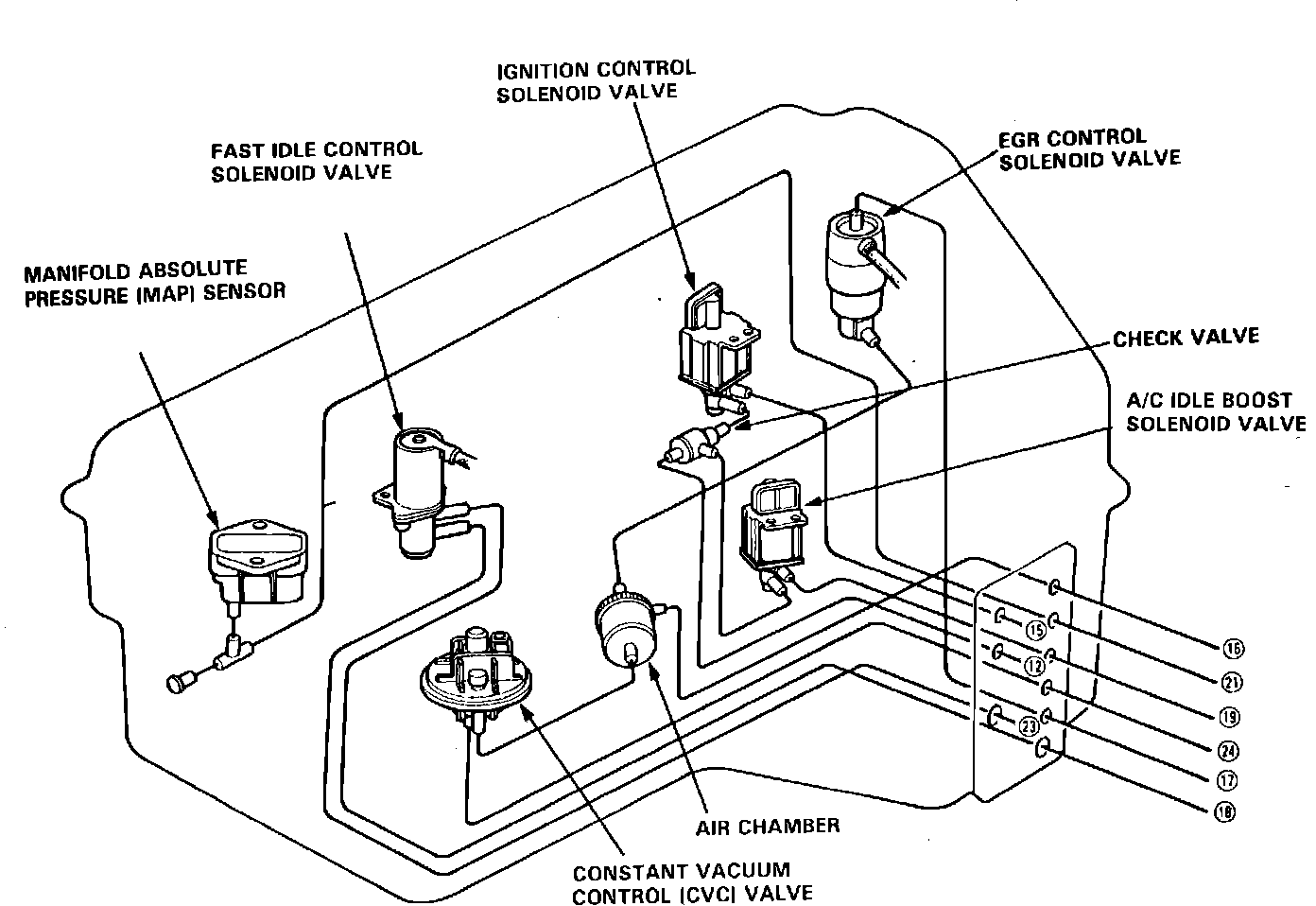

Fig. 268 Control Box Manual Transmission:
