Engine Compartment Reference Diagram

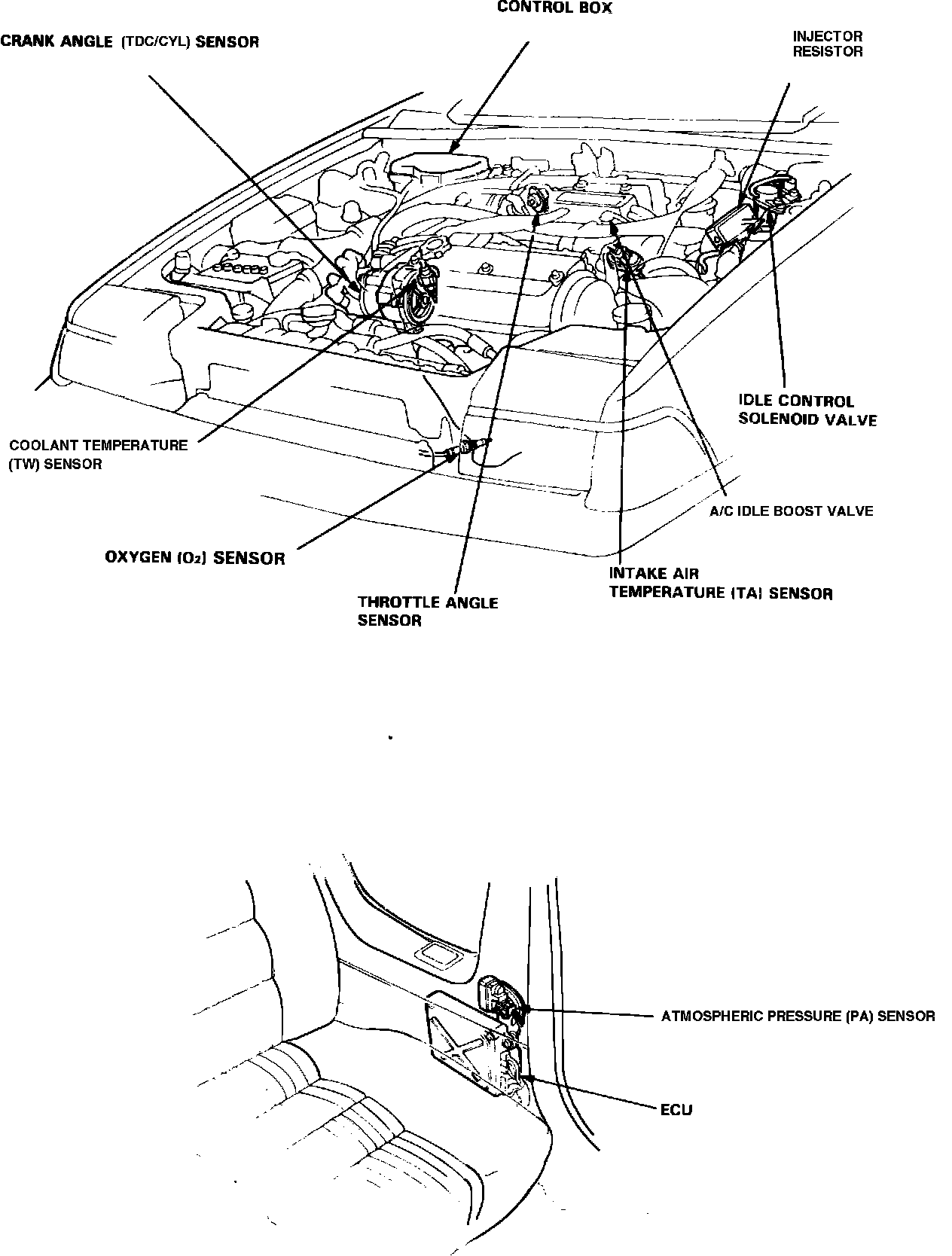

Fig. 23 Engine Compartment Reference Diagram. W/Fuel Injected Engine:

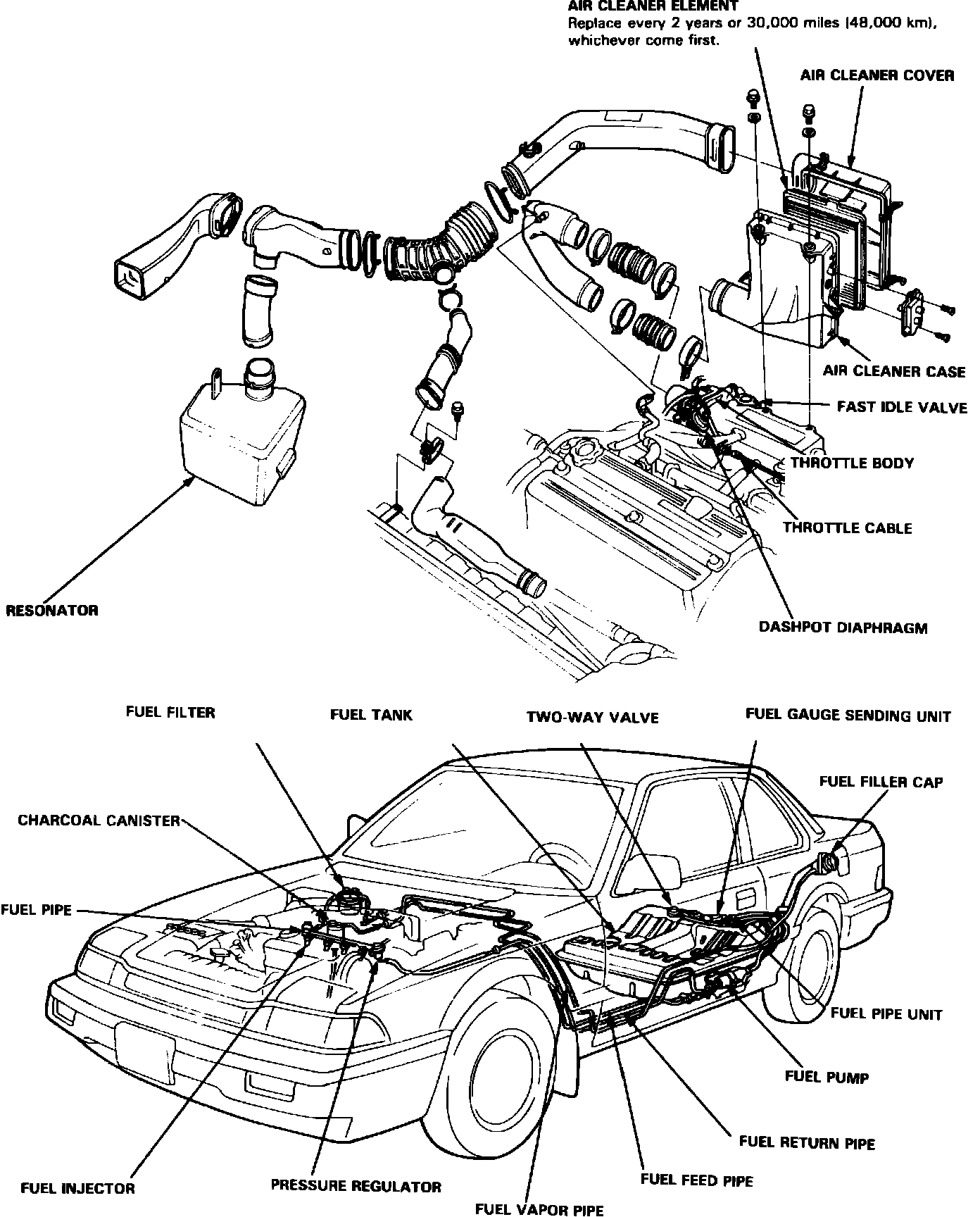

Fig. 23 Engine Compartment Reference Diagram. W/Fuel Injected Engine:
