Computers and Control Systems: Diagrams

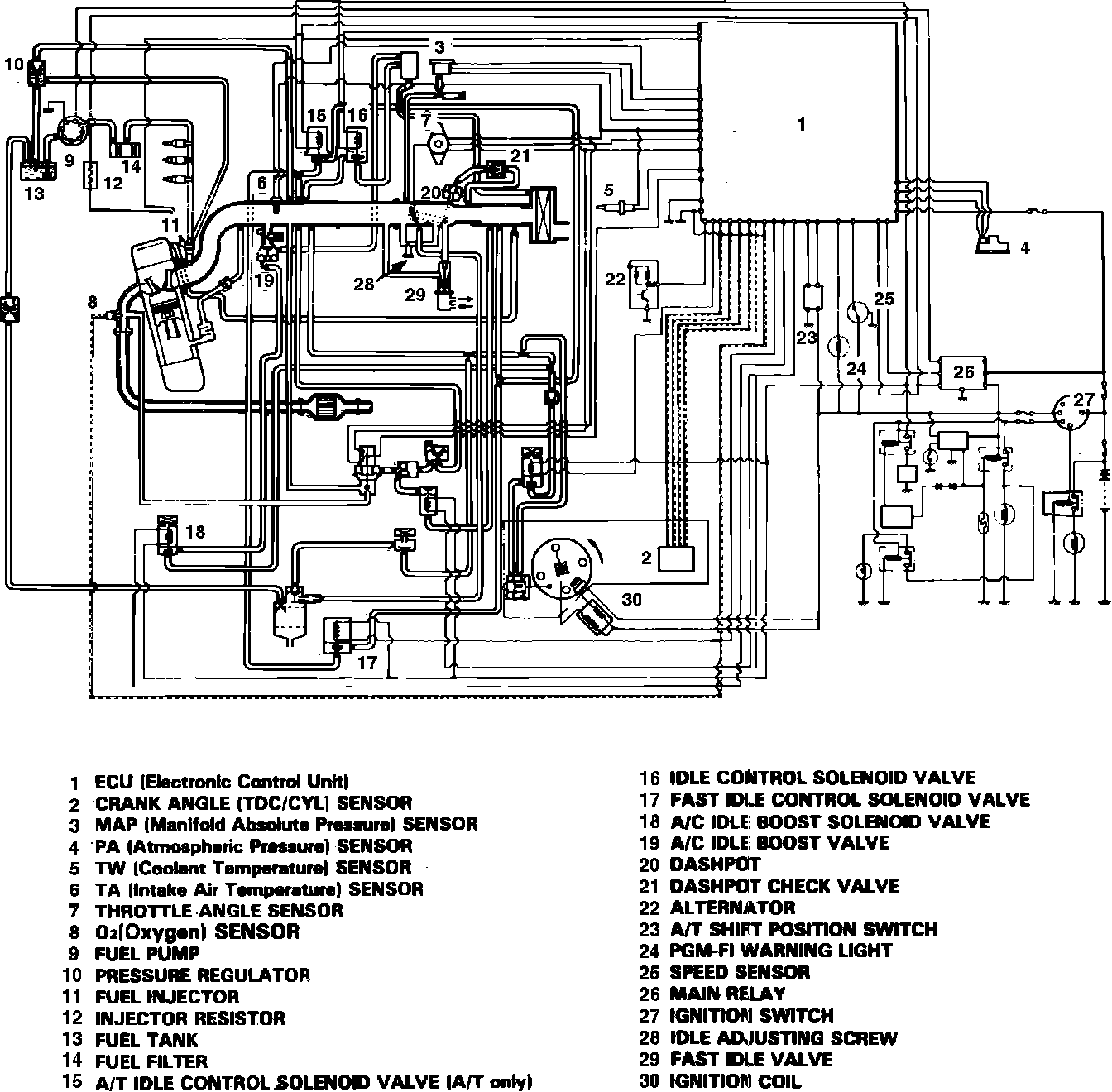

Fig. 19 Emission Control Vacuum Hose Routing. W/Fuel Injected Engine:
