Home >> Honda >> 1987 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Distributor, Ignition >> Hitachi

Hitachi

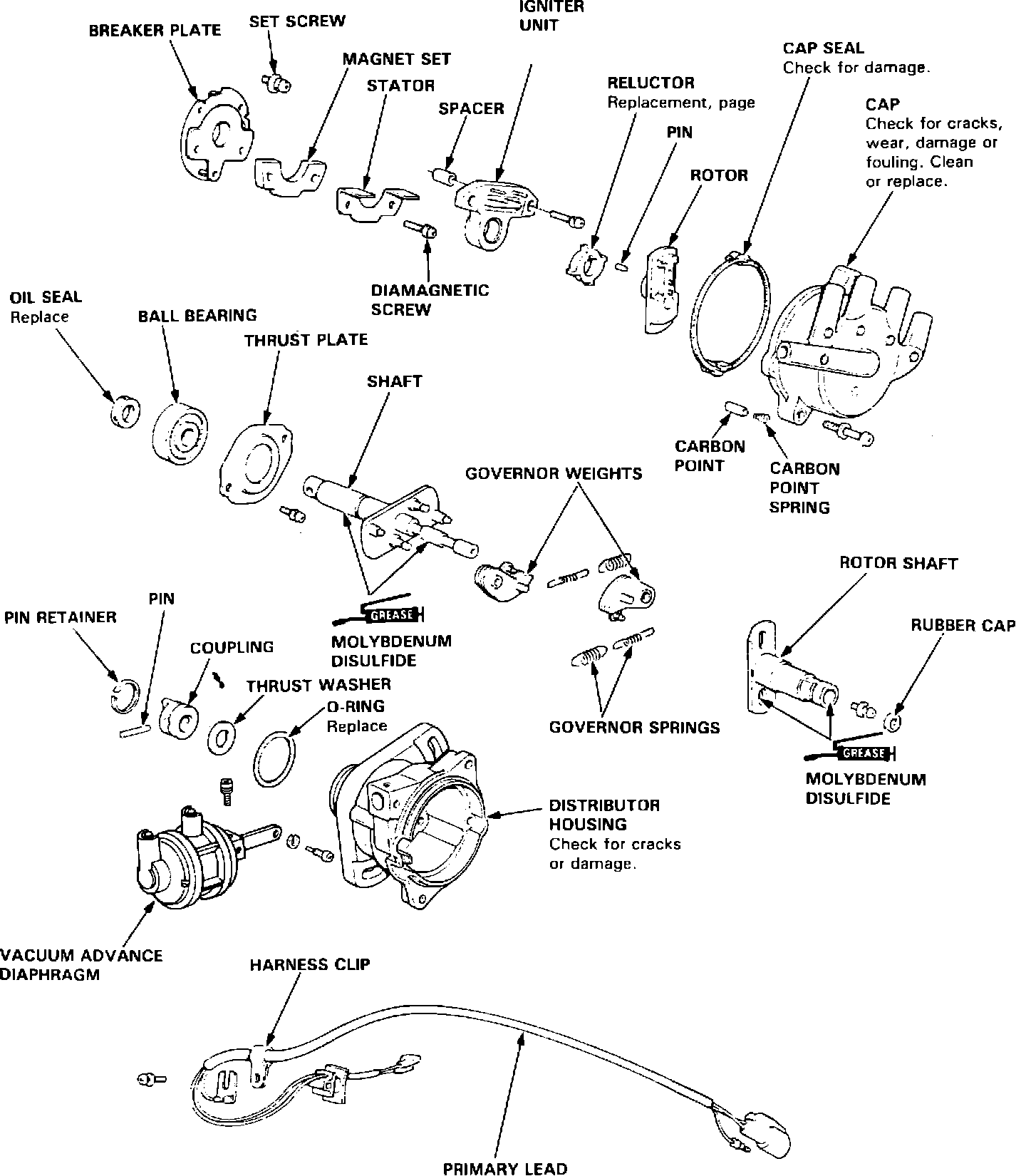

Fig. 11 Typical Hitachi Electronic Distributor Exploded View.:
