Engine Compartment Reference Diagram
Engine Compartment Reference Diagram

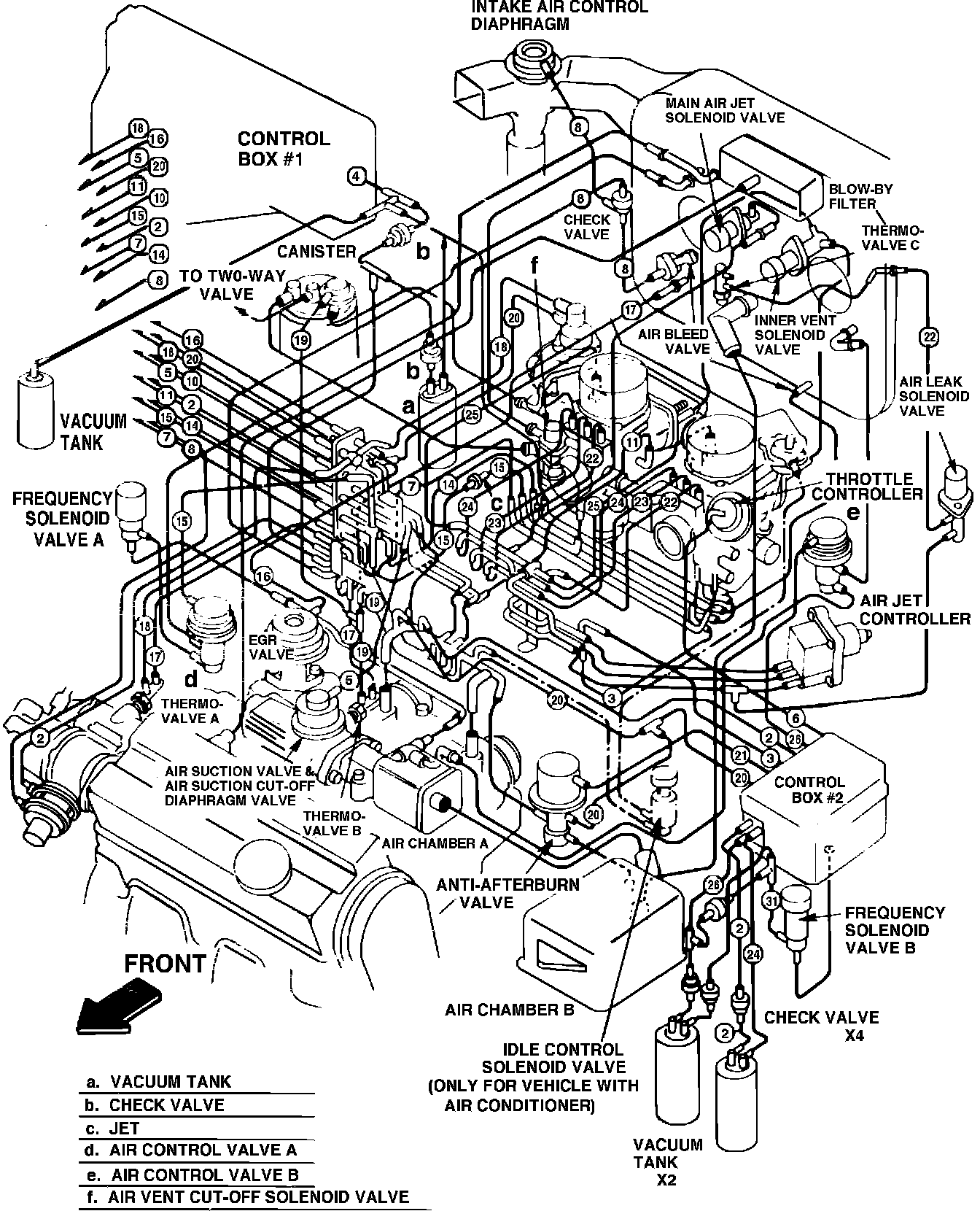

Fig. 54 Engine Compartment Reference Diagram.:
