Home >> Honda >> 1987 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams

Computers and Control Systems: Diagrams

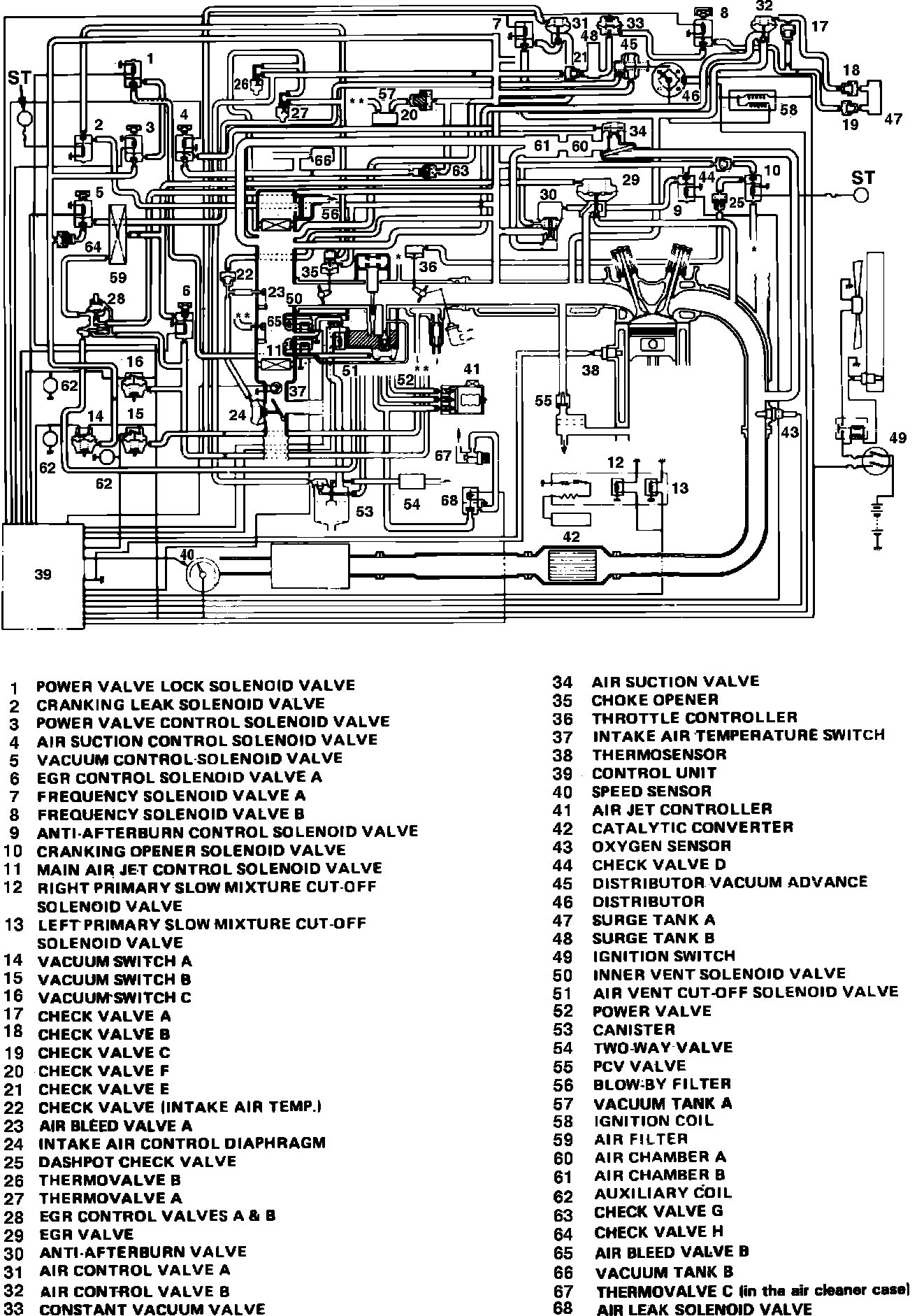

Fig. 18 Emission Control Vacuum Hose Routing. W/Carbureted Engine:
