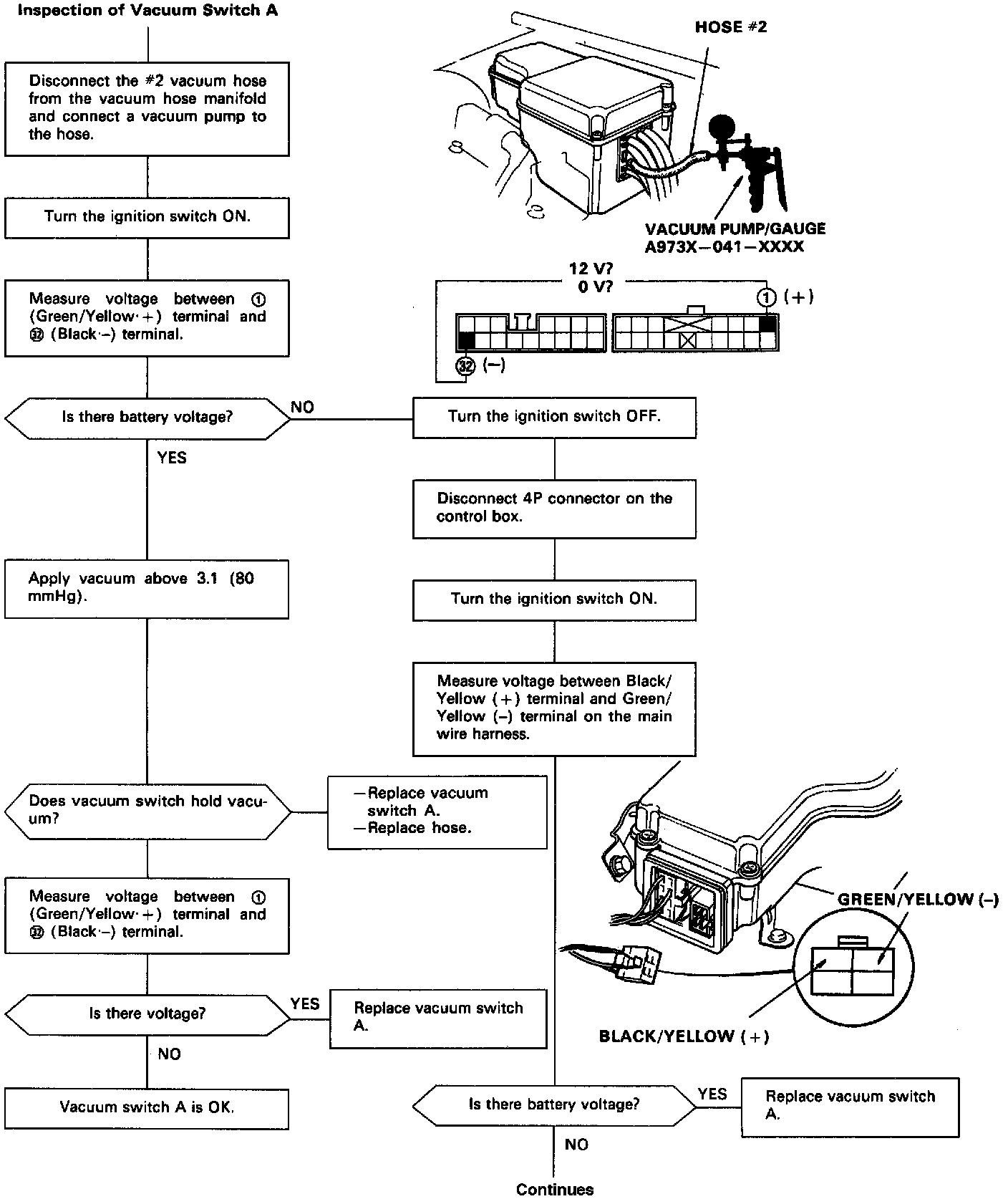

Vacuum Switch A
Vacuum Switch A
The vacuum switch A signals the
[1]
[2]
control unit
when the vacuum level is below 3.1" (80 mmHg).
