Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests

Component Tests

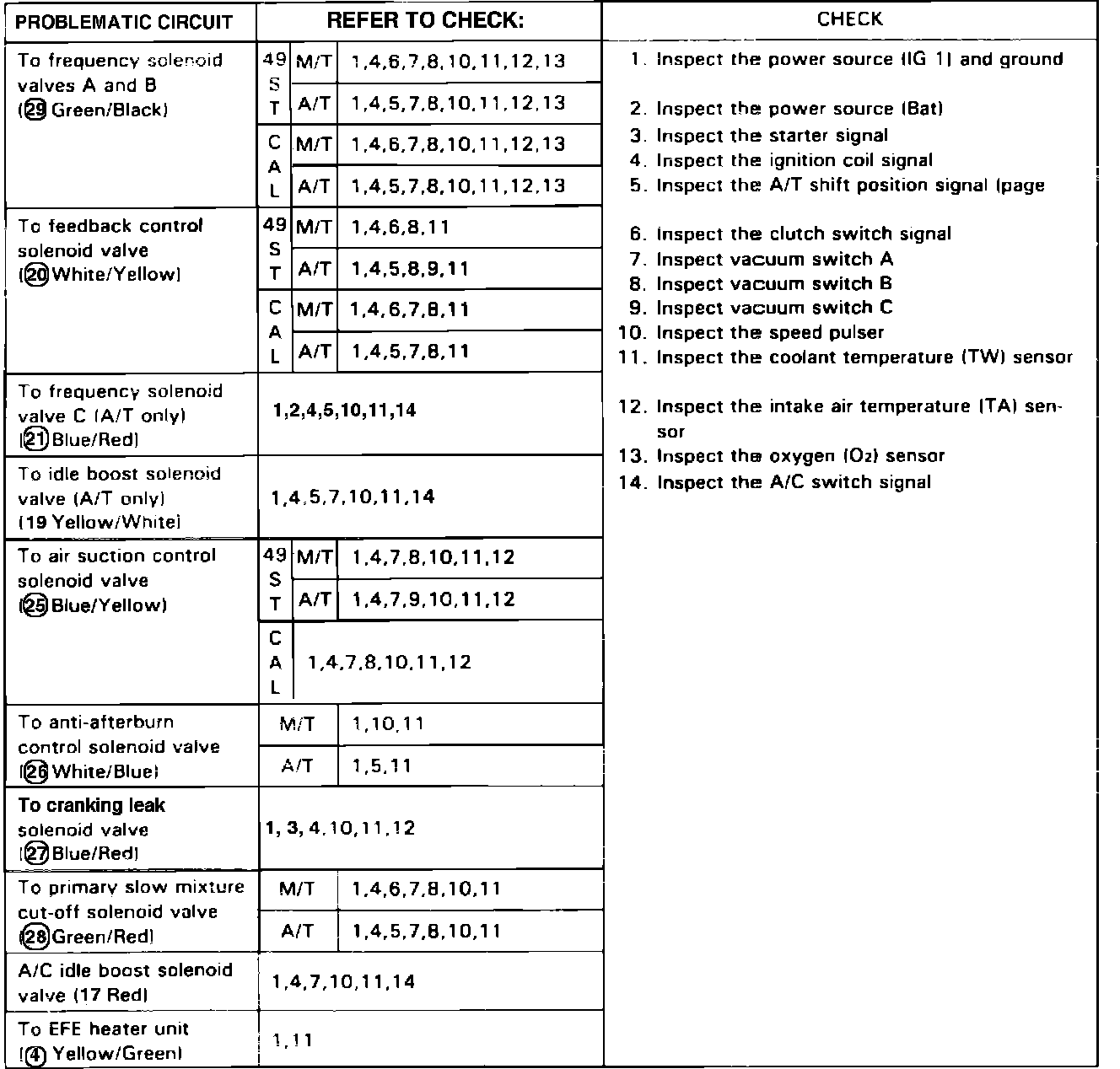

Fig. 29 Control Unit Input Troubleshooting Chart.:
