Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> ECM Pinout / Terminal I.D. Charts

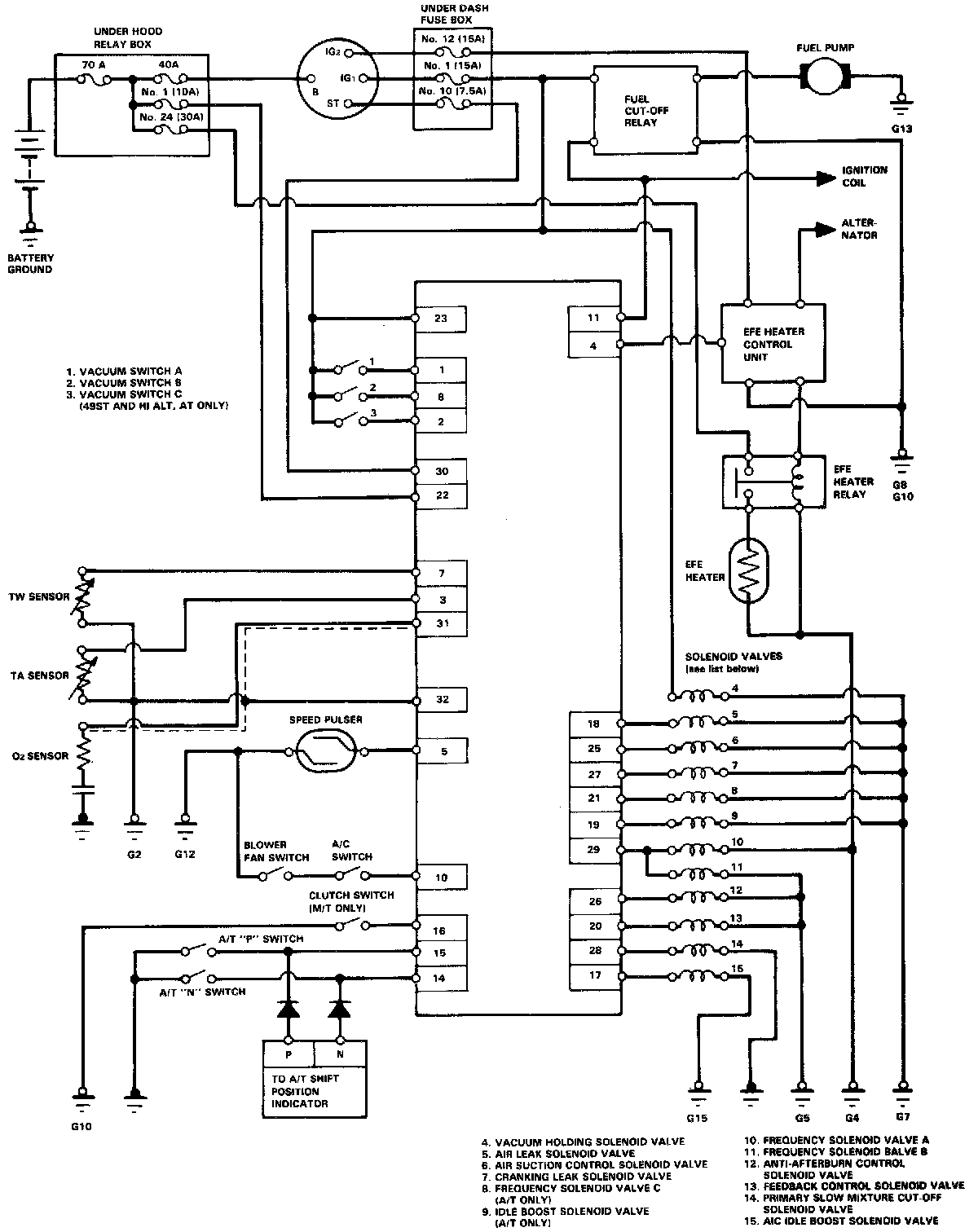

ECM Pinout / Terminal I.D. Charts
