Service Specifications

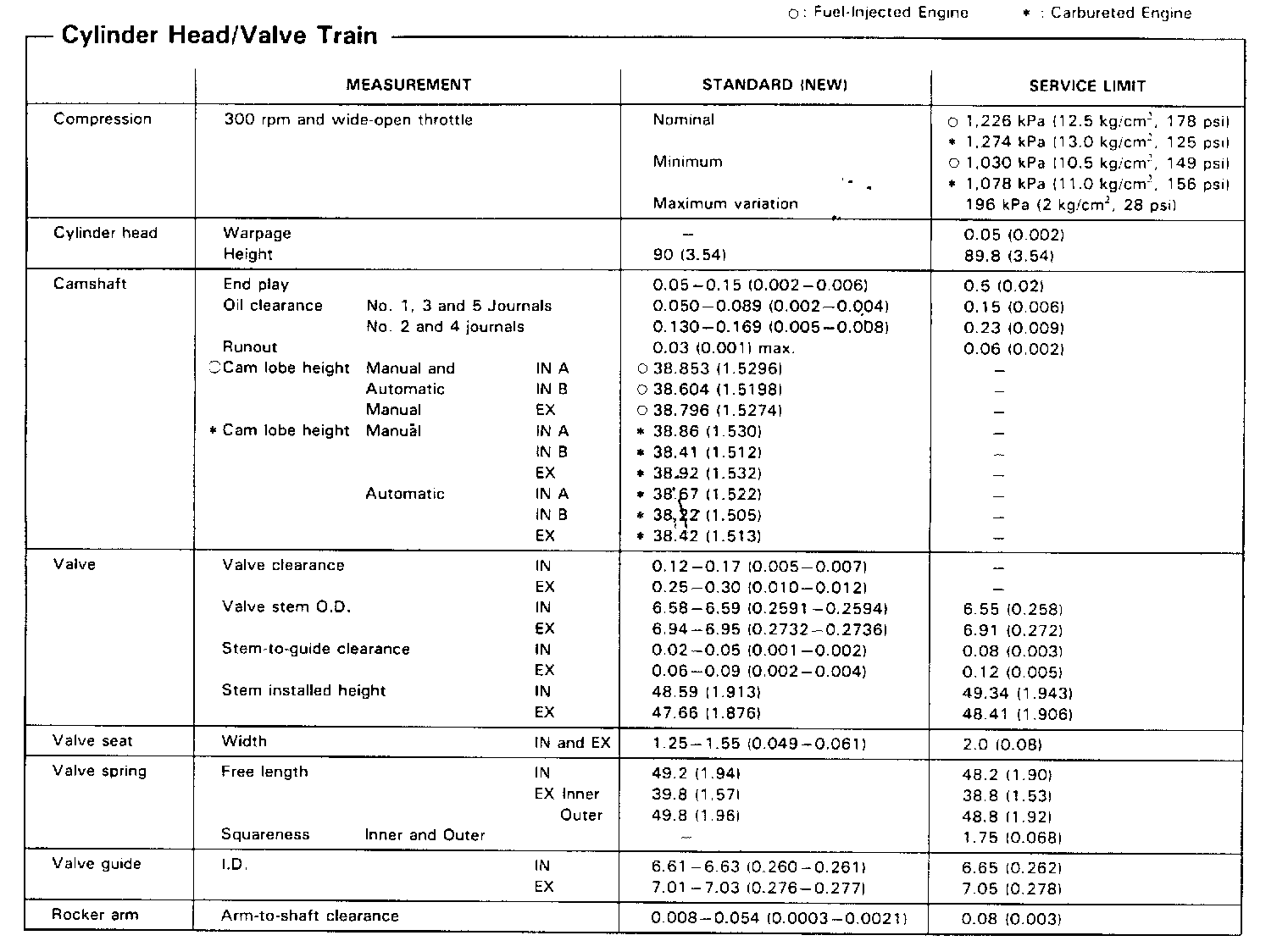

Cylinder Head and Valve Train

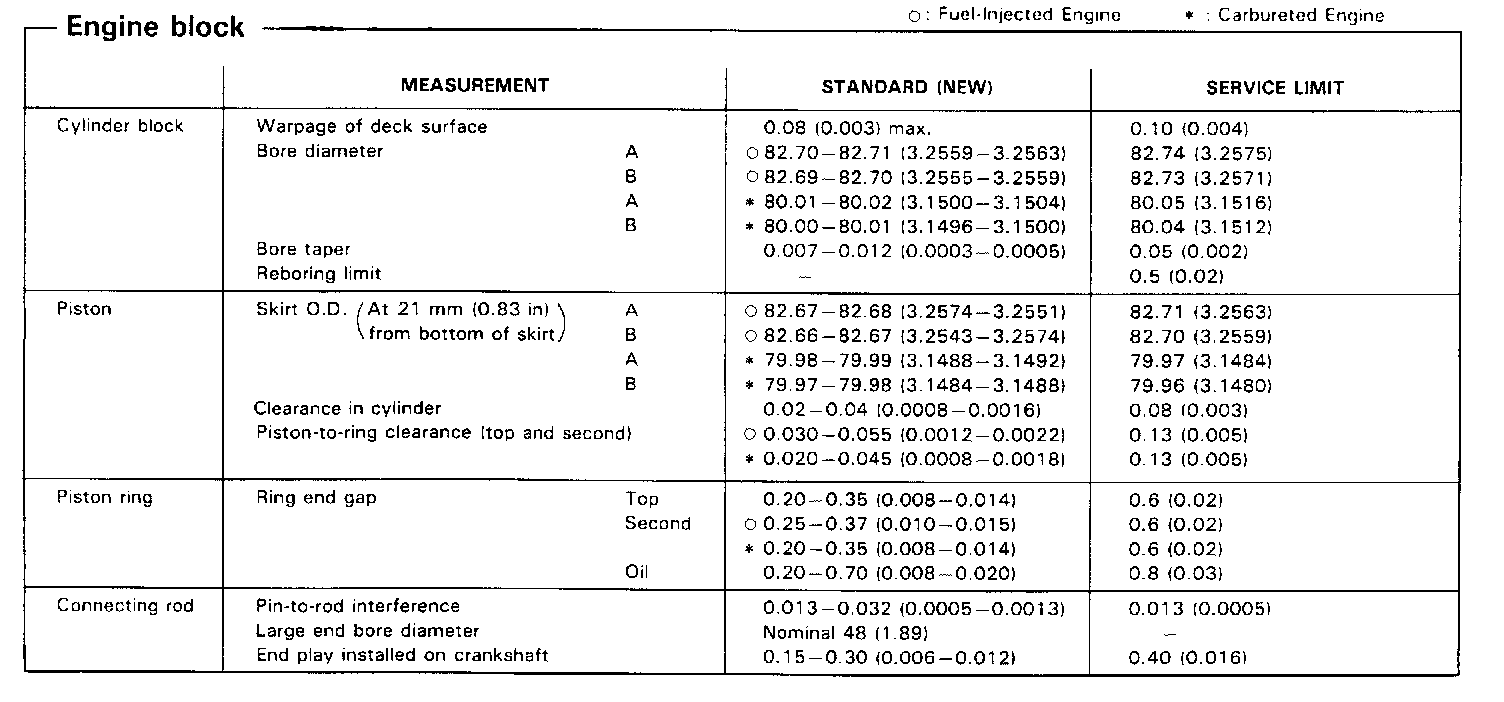

Engine Block








Engine Lubrication

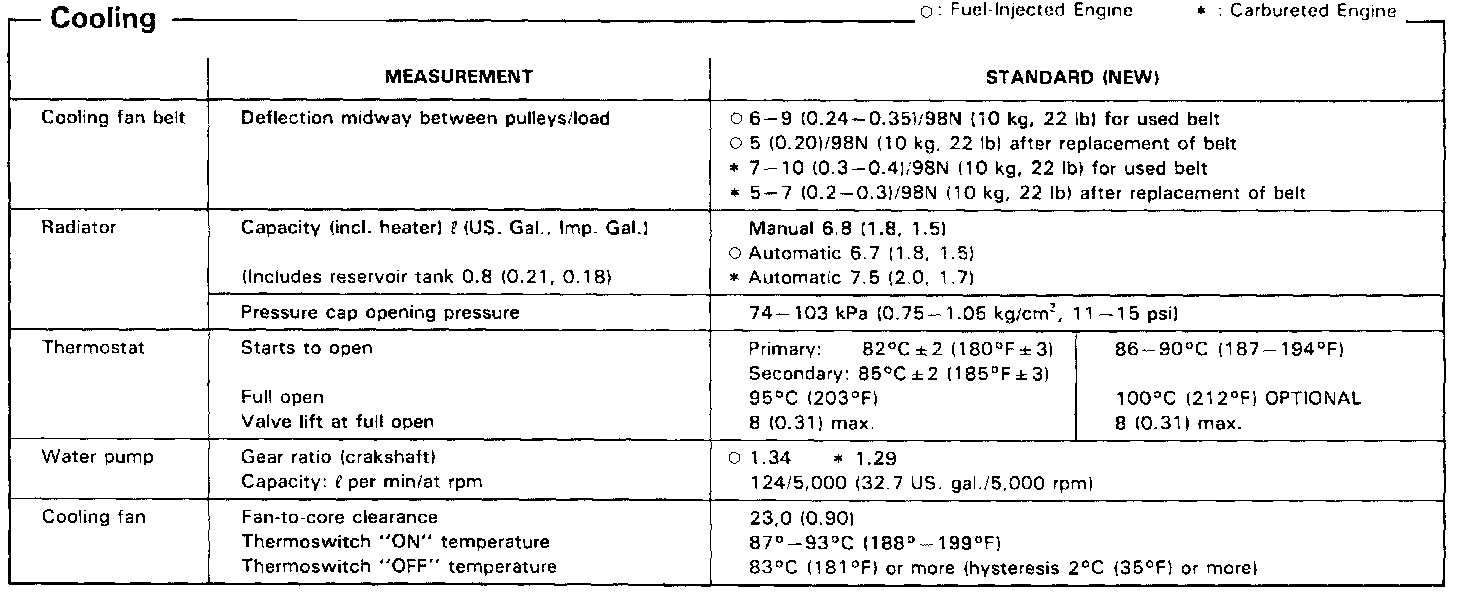

Cooling





Fuel
