Home >> Honda >> 1985 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Adjustments

Computers and Control Systems: Adjustments

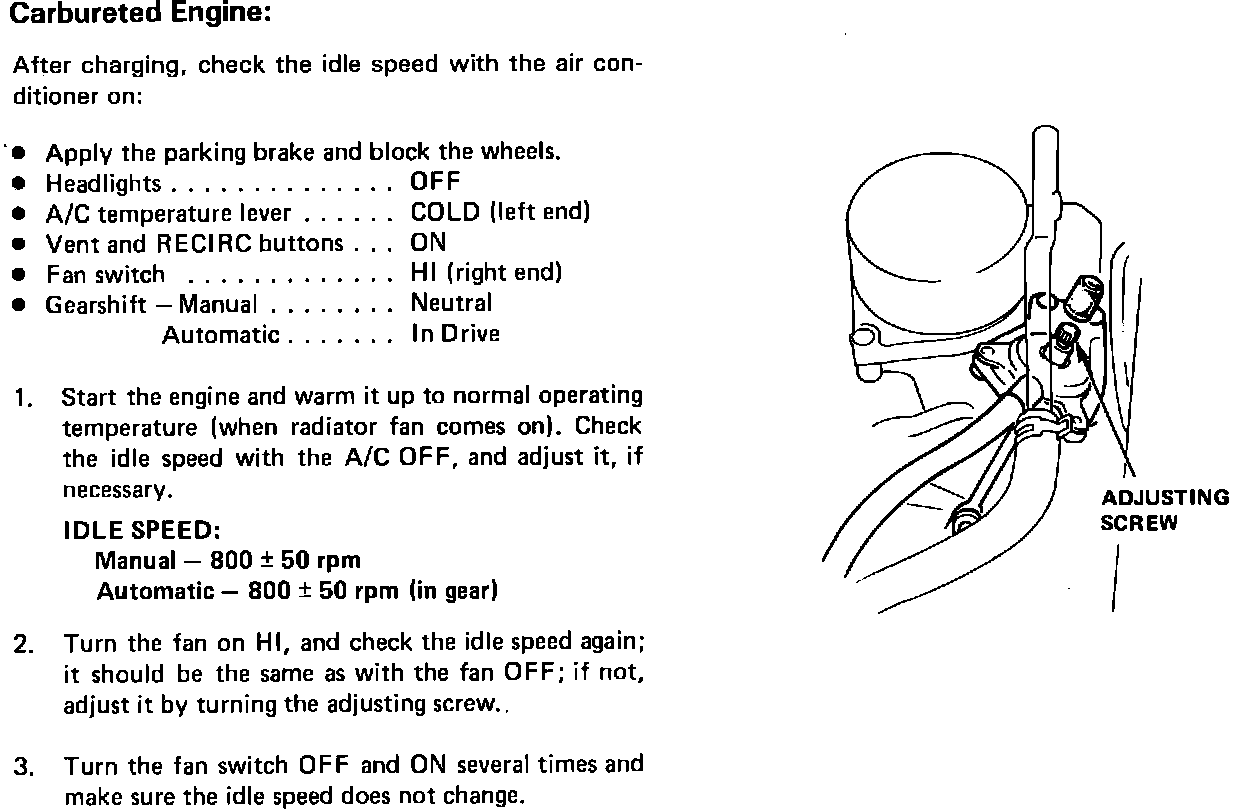

Fig. 40 Idle speed adjustment.:
