Home >> Honda >> 1985 >> Accord L4-1829cc 1.8L SOHC ES, ET 3-bbl >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Control Module >> Locations

Power Window Control Module: Locations

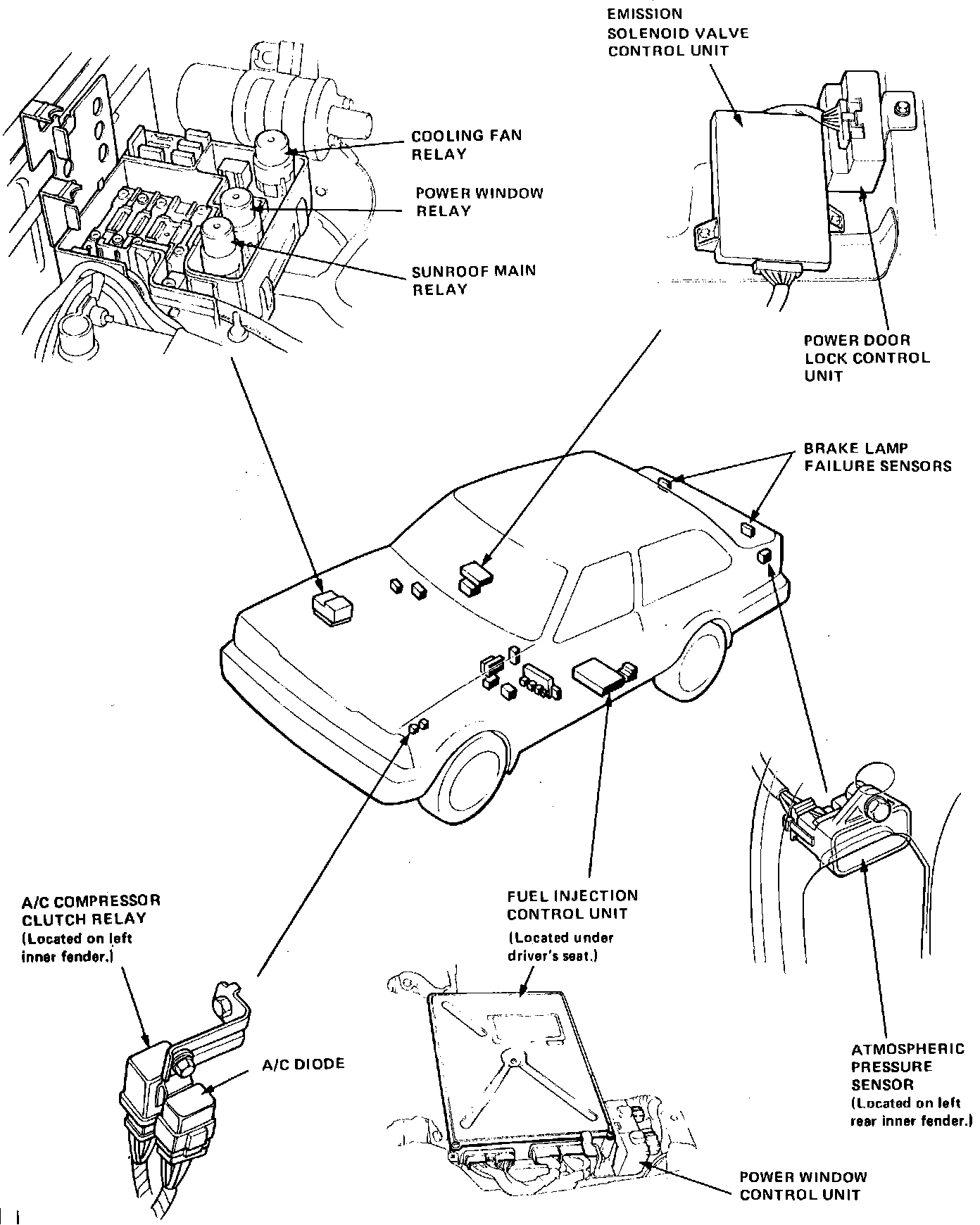

Fig. 24 Relay, Amplifier And Control Unit Locations:
