Home >> Honda >> 1984 >> Accord L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

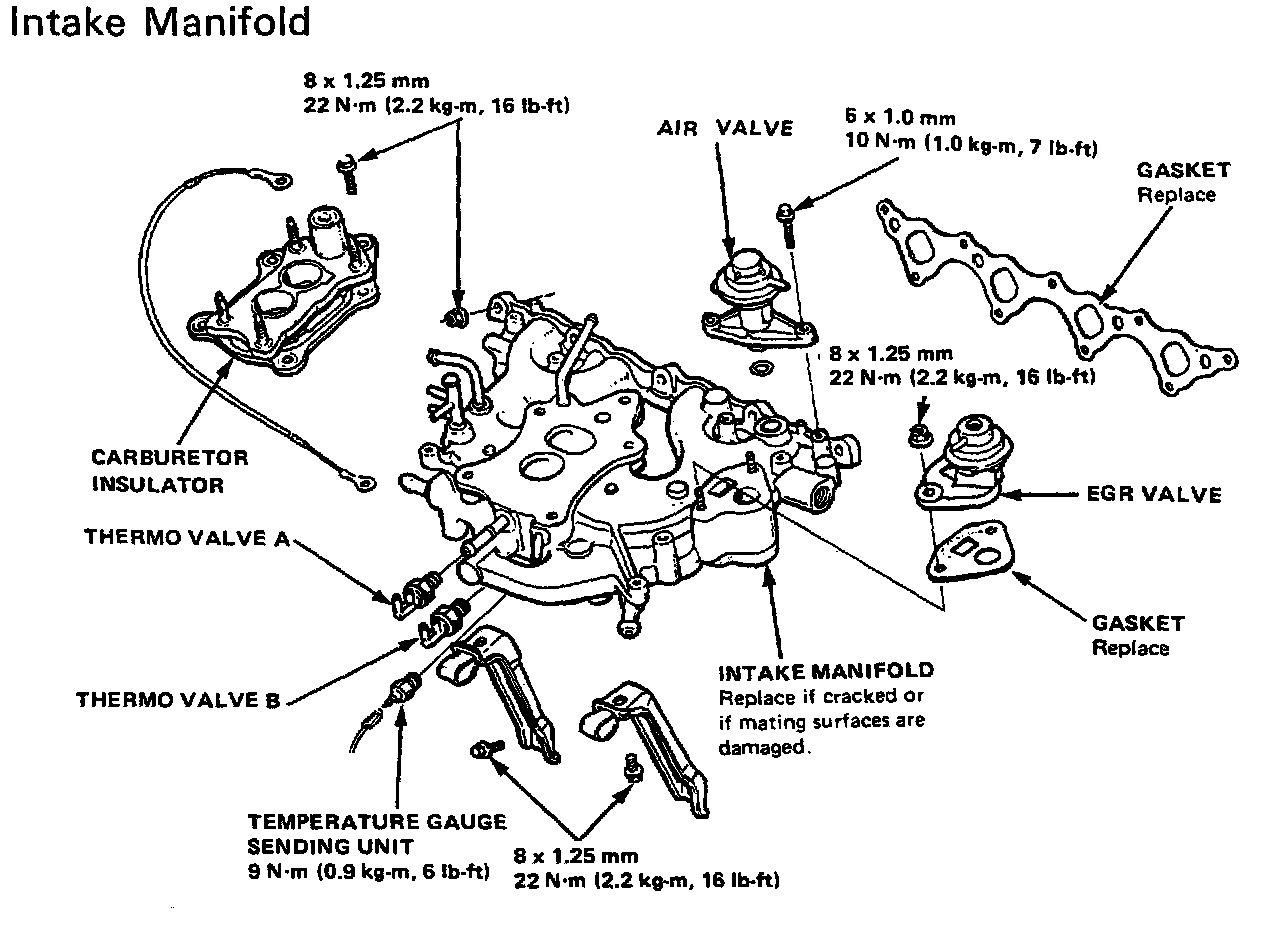

Intake Manifold

Intake Manifold, Air Valve, EGR Valve, Thermo Valves And Temp. Sender:
