Distributor: Specifications

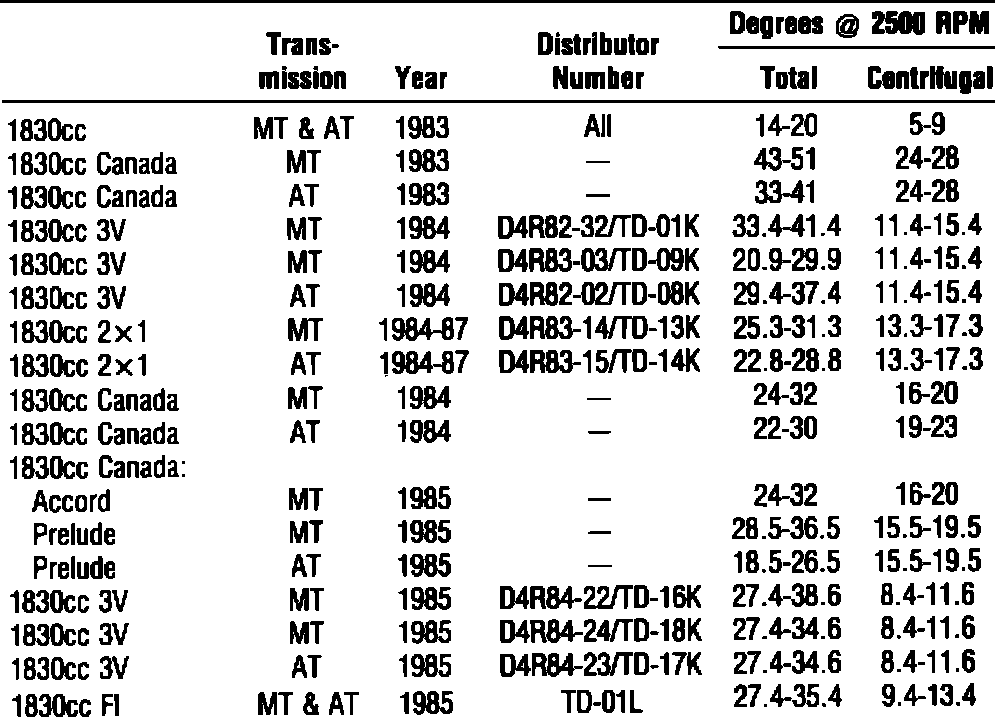

Fig. 48 Distributor specifications:



Fig. 015 Distributor Timing Advance Specifications:
