Home >> Honda >> 1982 >> Prelude L4-1751cc 1800 EK1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Distributor, Ignition >> Toyodenso

Toyodenso

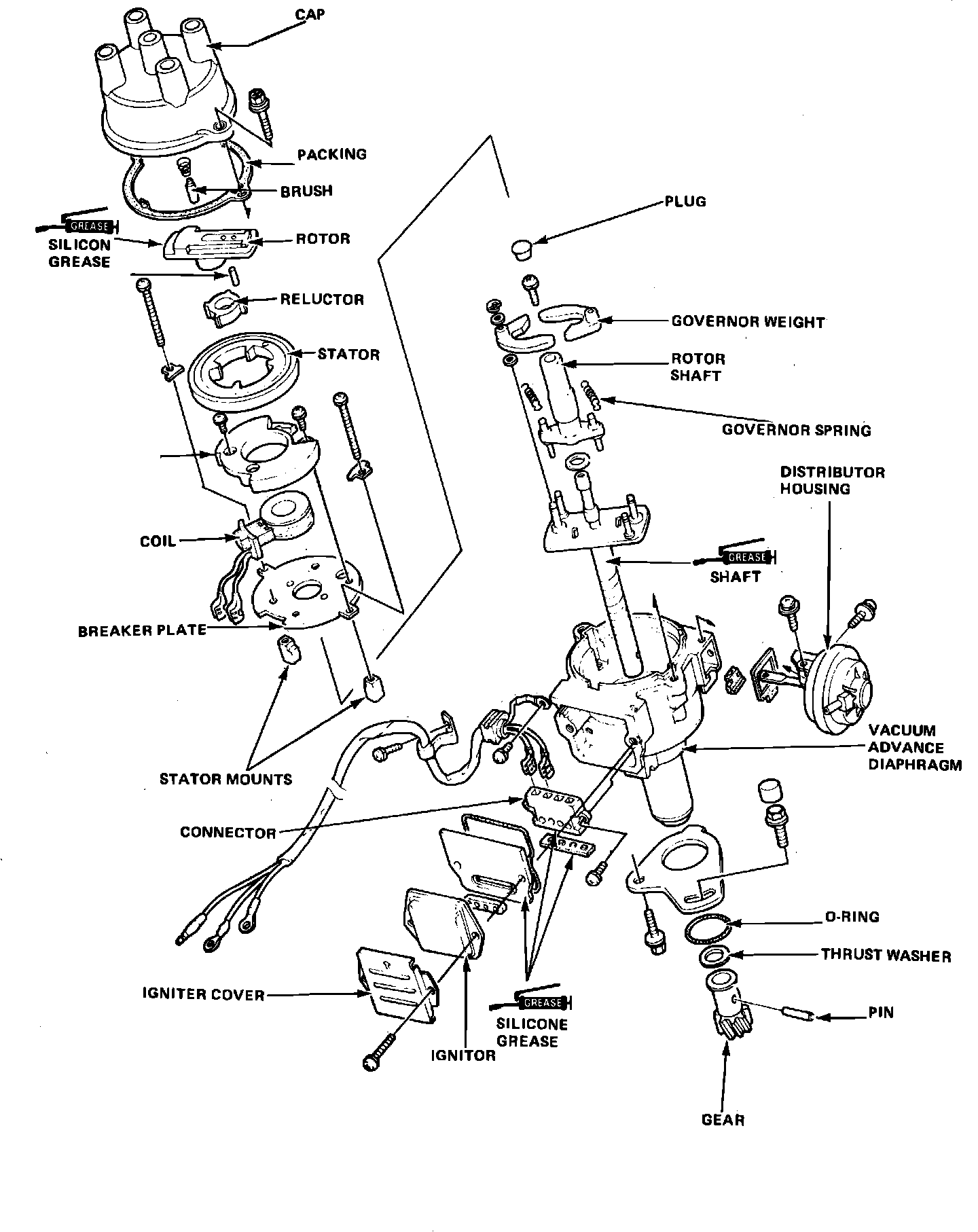

Fig. 44 Toyo Denso electronic distributor exploded view.:
