Home >> Honda Truck >> 1995 >> Odyssey L4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection

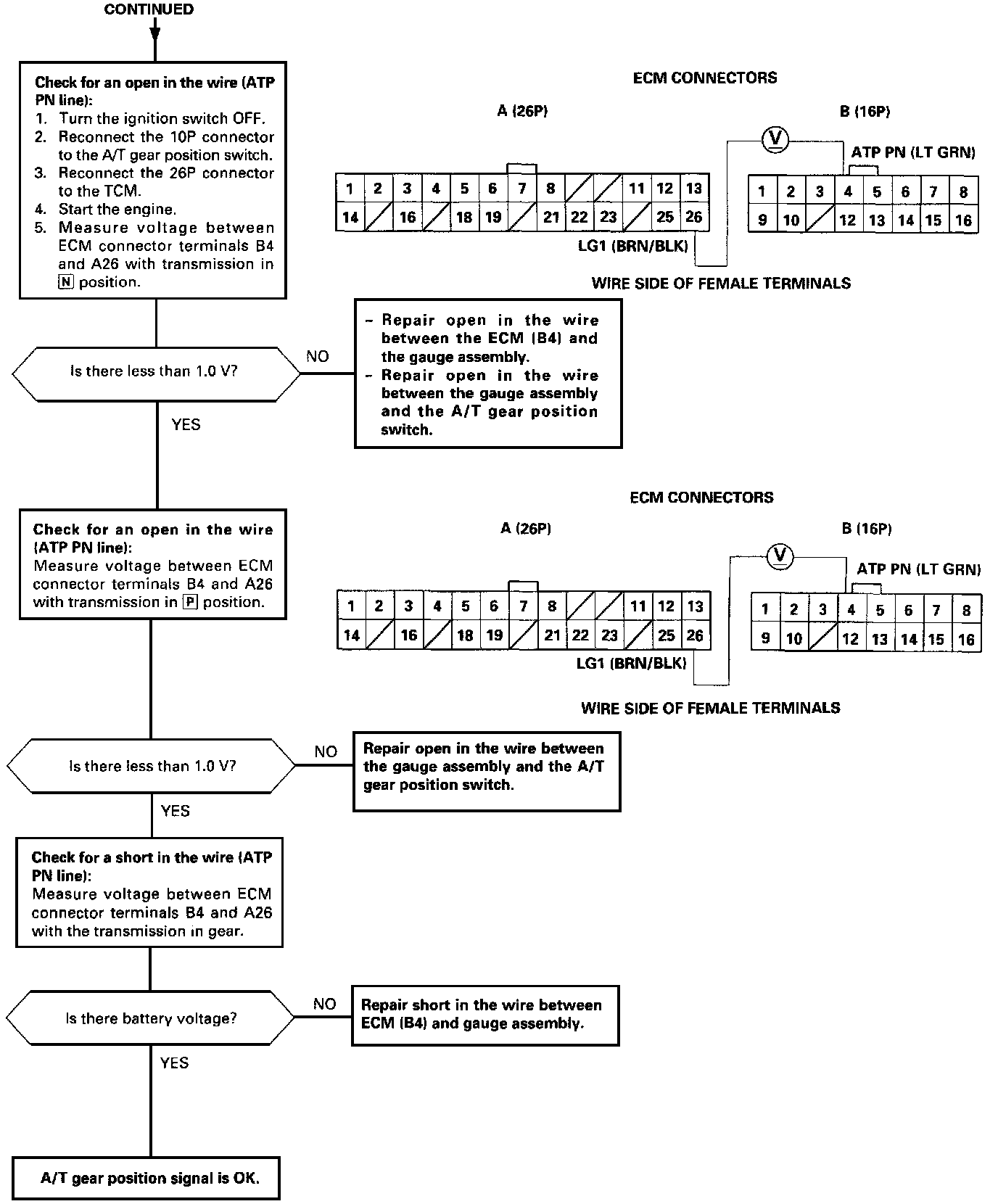

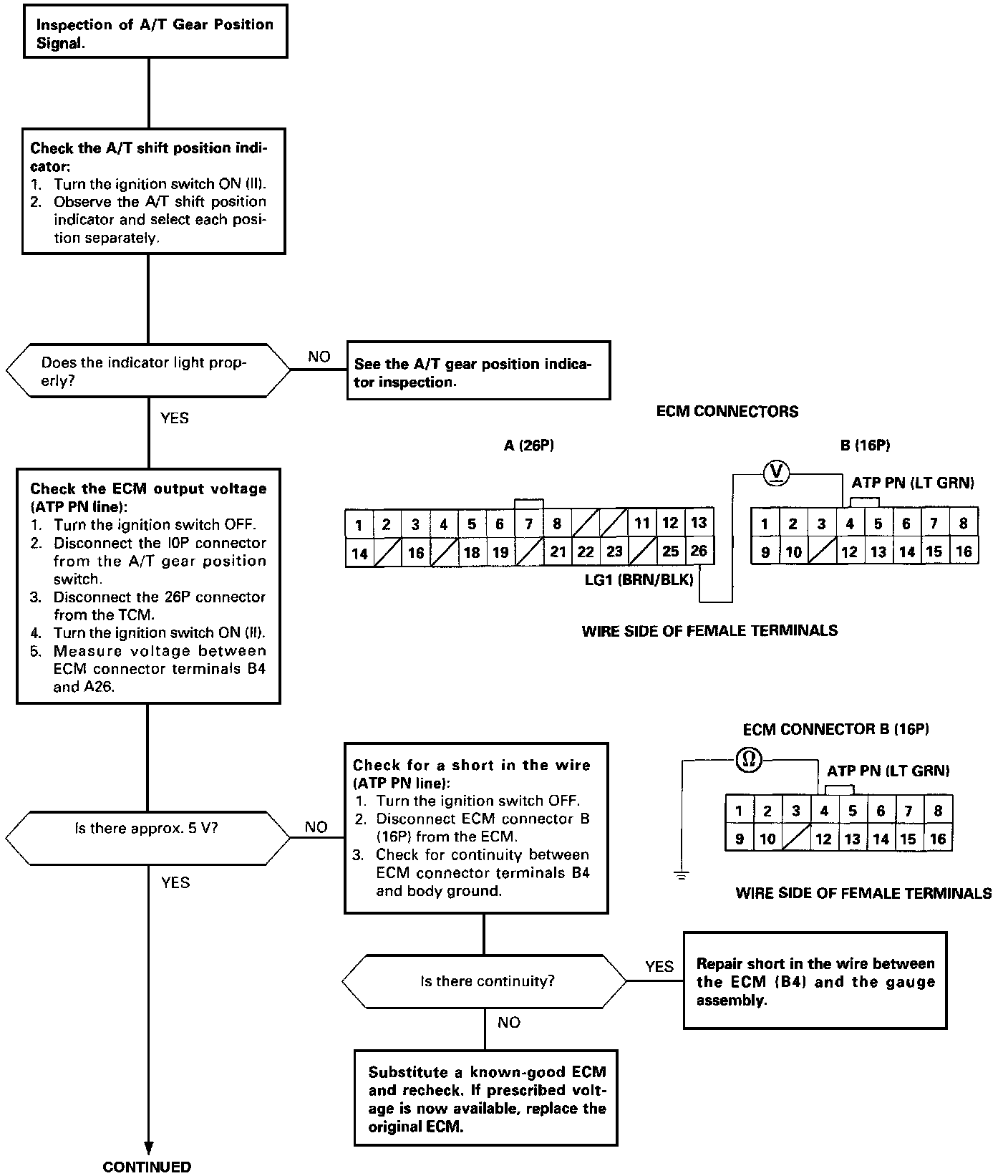

Transmission Position Sensor/Switch: Testing and Inspection








This signals the Engine Control Module (ECM) when the Transmission is in N or P position.
