Electronic/Powertrain Control Module (ECM/PCM)

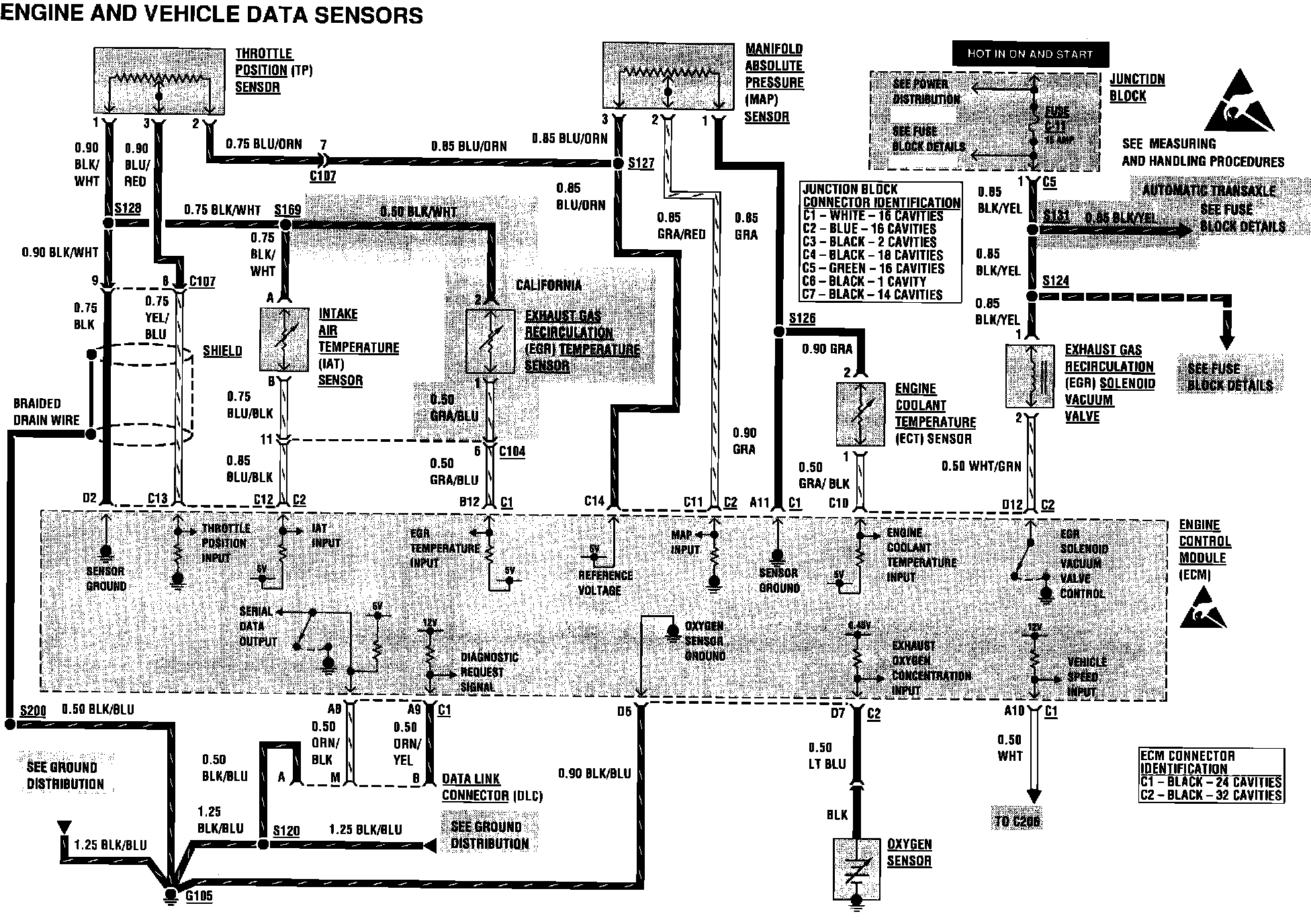

ECM Schematic:



ECM Schematic:



ECM Schematic:

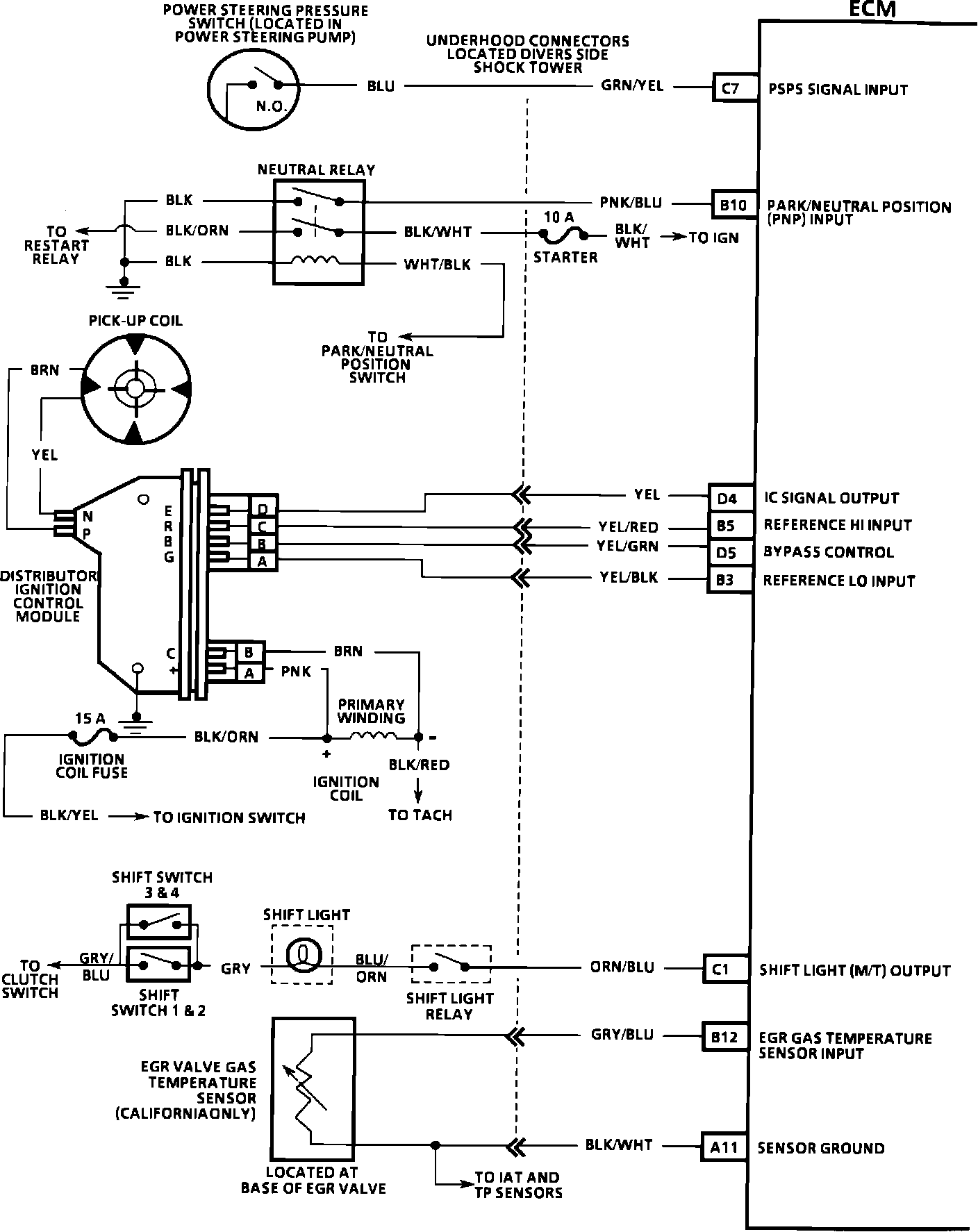

ECM Wiring Diagram 1.6L Storm:

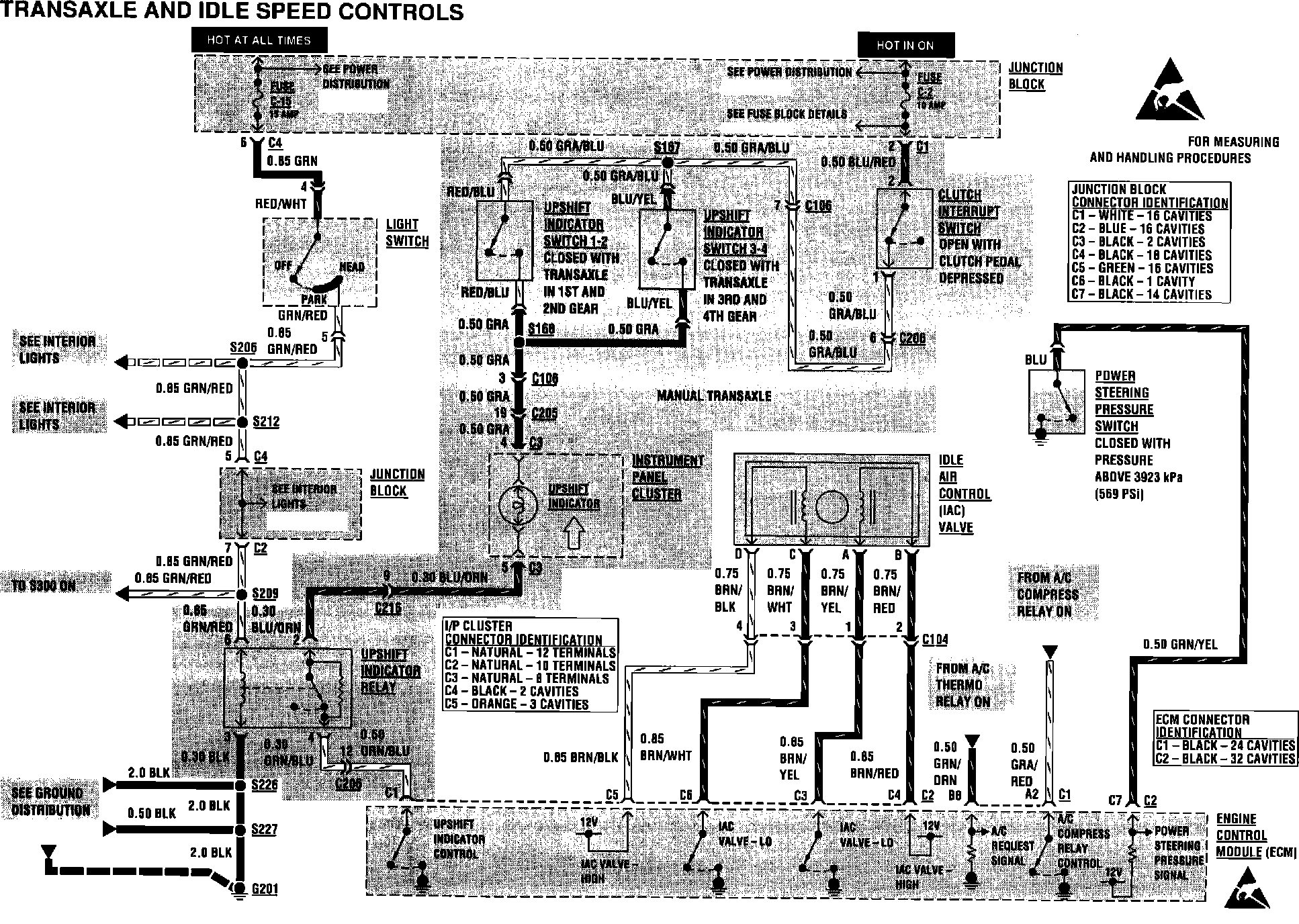

ECM Wiring Diagram:

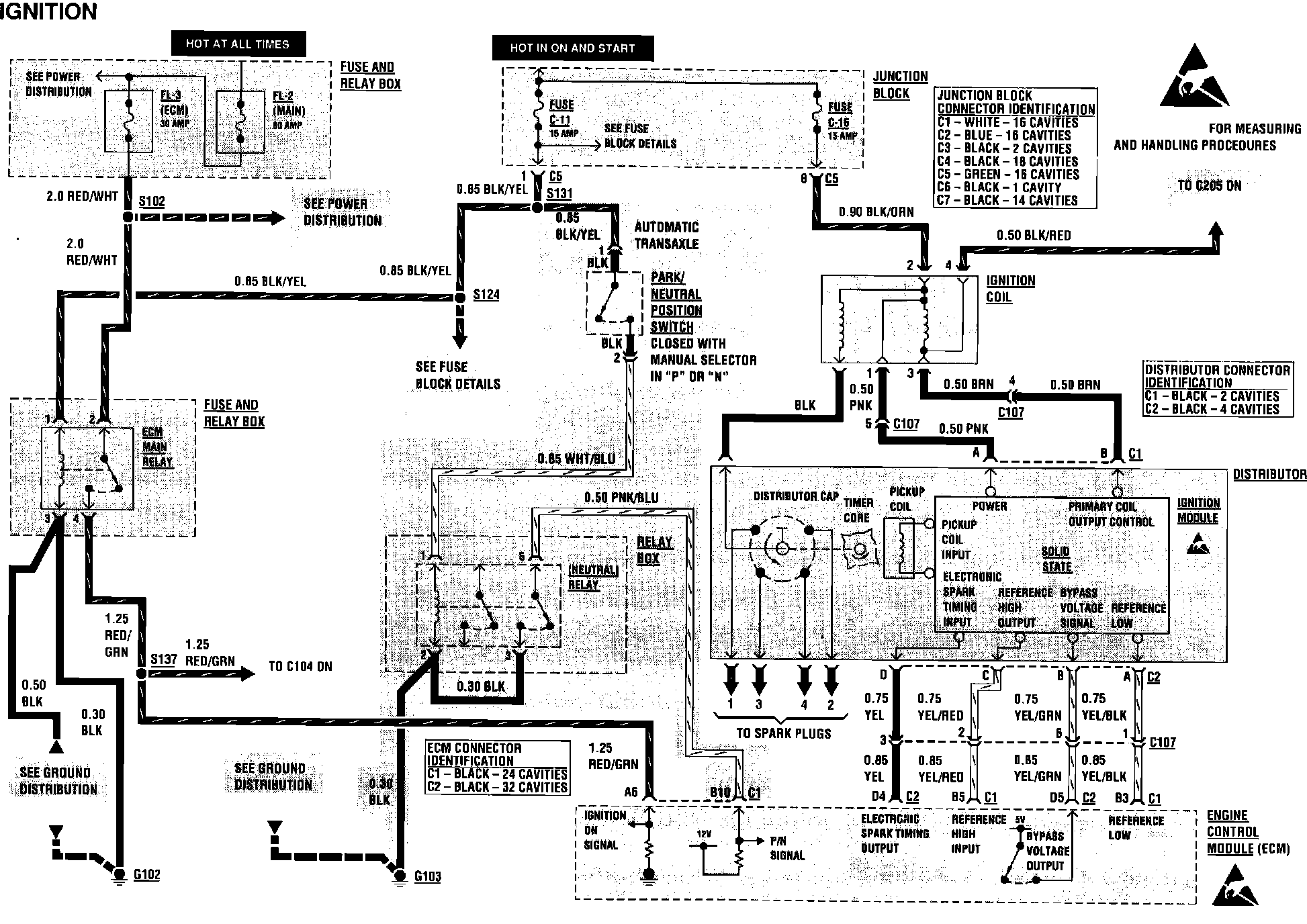

ECM Wiring Diagram:



ECM Wiring Diagram:



ECM Wiring Diagram:
