Home >> Geo >> 1992 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

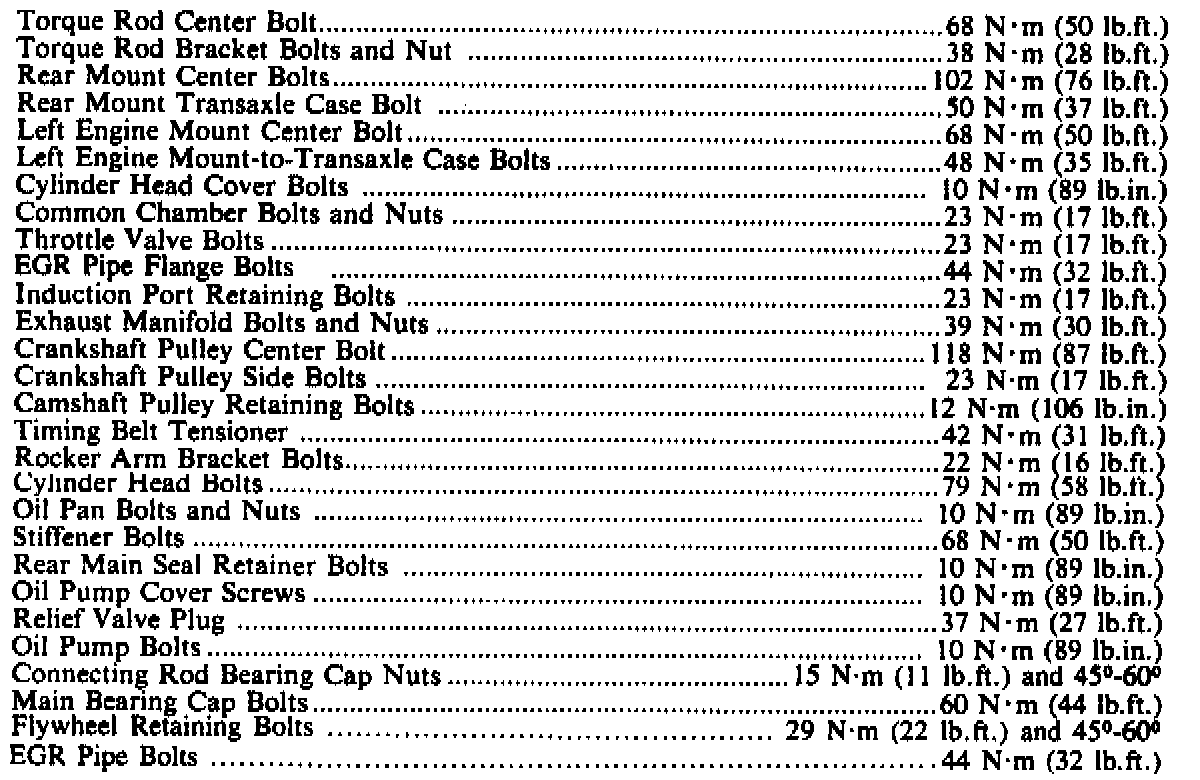

Torque Specifications:




Torque Specifications (continued):

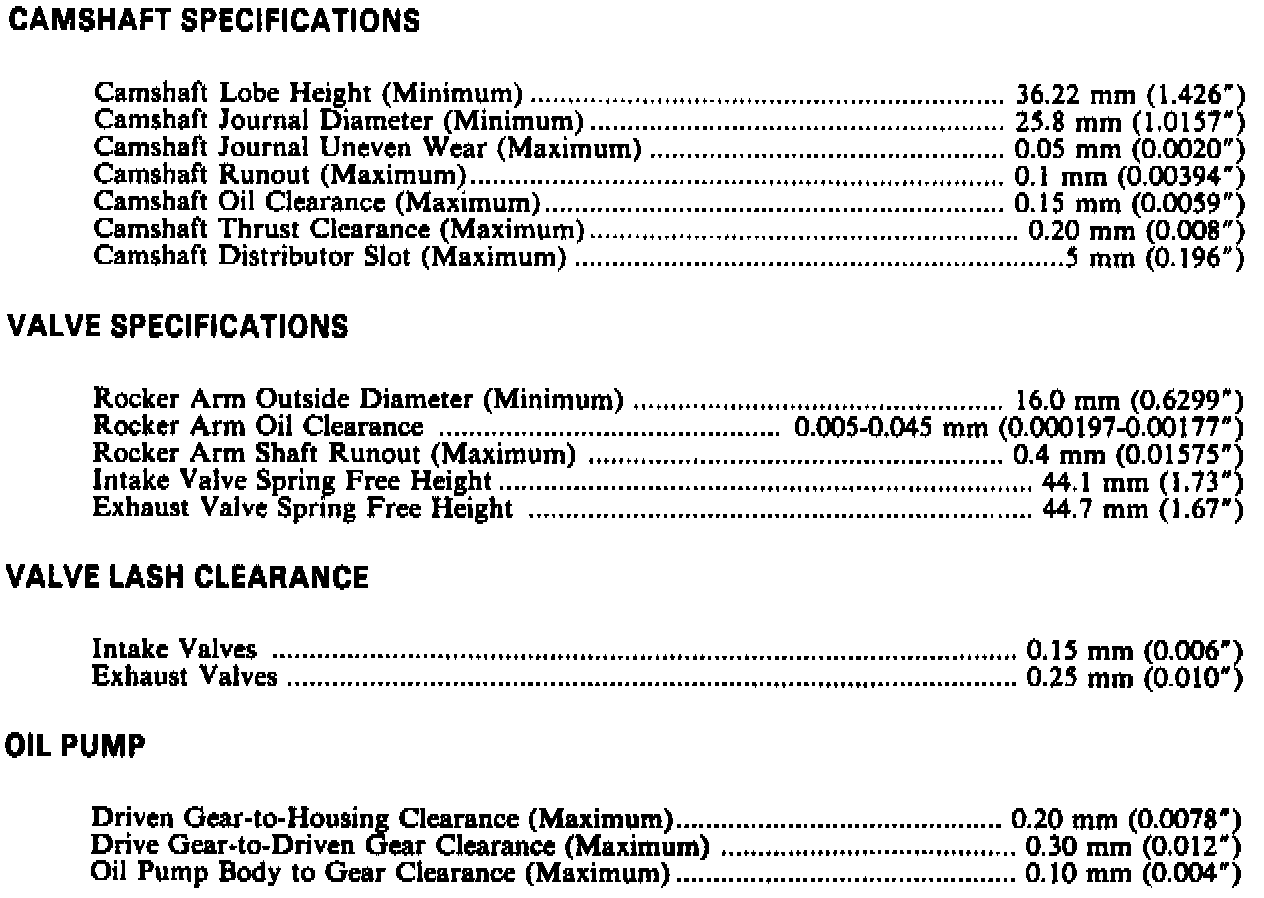

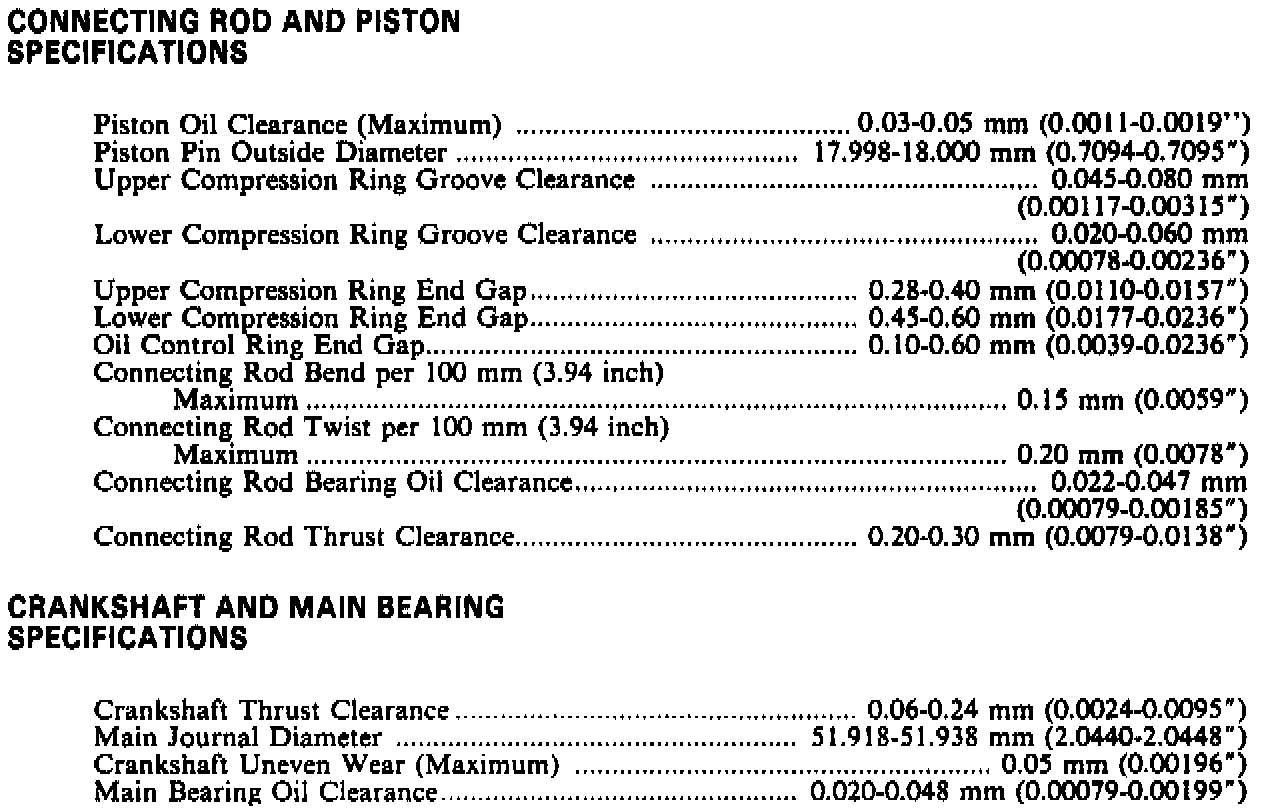

Engine Specifications:




Engine Specifications (continued):





Cylinder Head Sequence:
