Geo
>>
1992
>>
Storm L4-1600cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse Block
Fuse Block

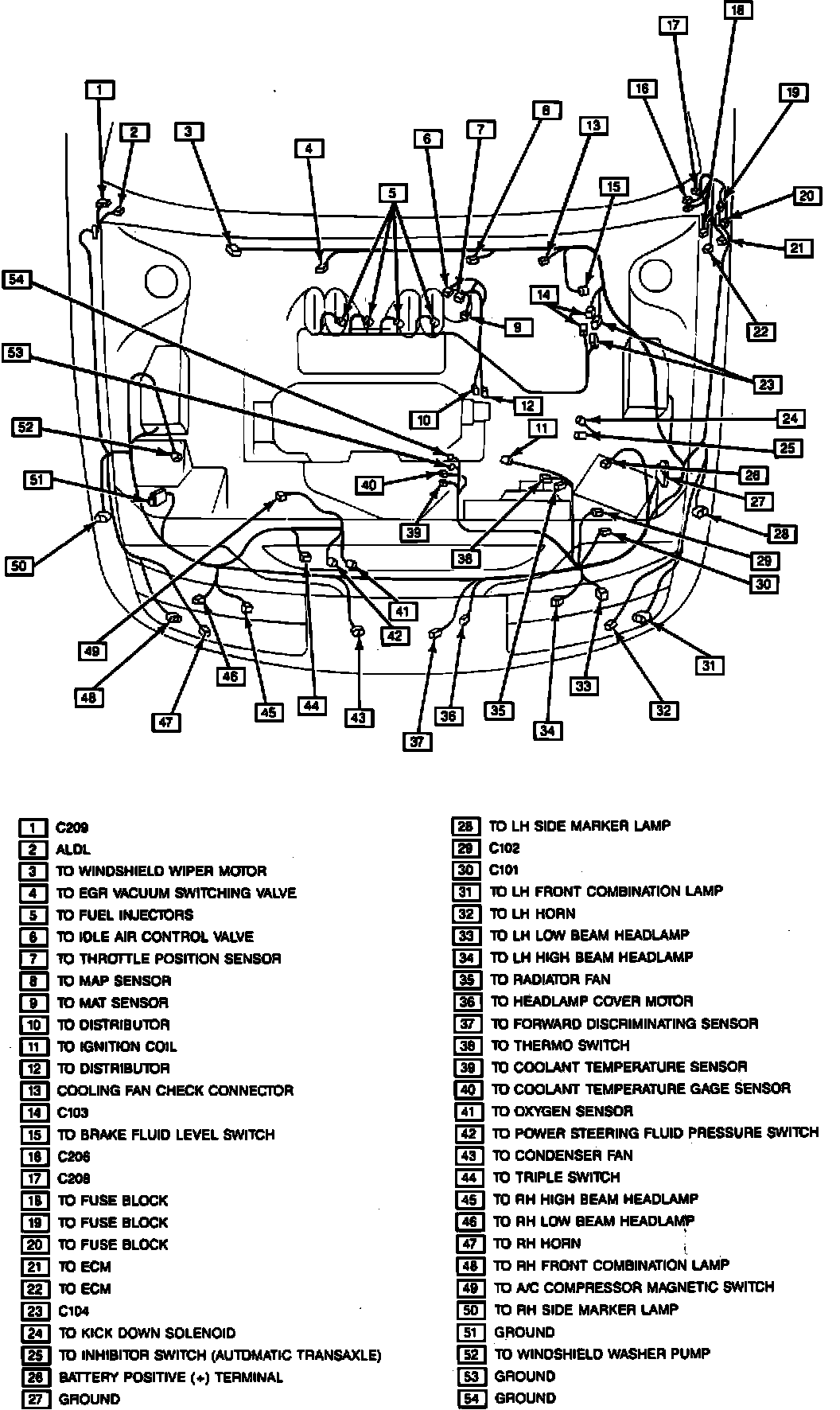

Engine Compartment Components.:
Behind LH Side Of I/P, Attached To Junction Block
Applicable to: 1.6L SOHC Engine
