Home >> Geo Truck >> 1994 >> Tracker 4x4 L4-1.6L SOHC TBI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

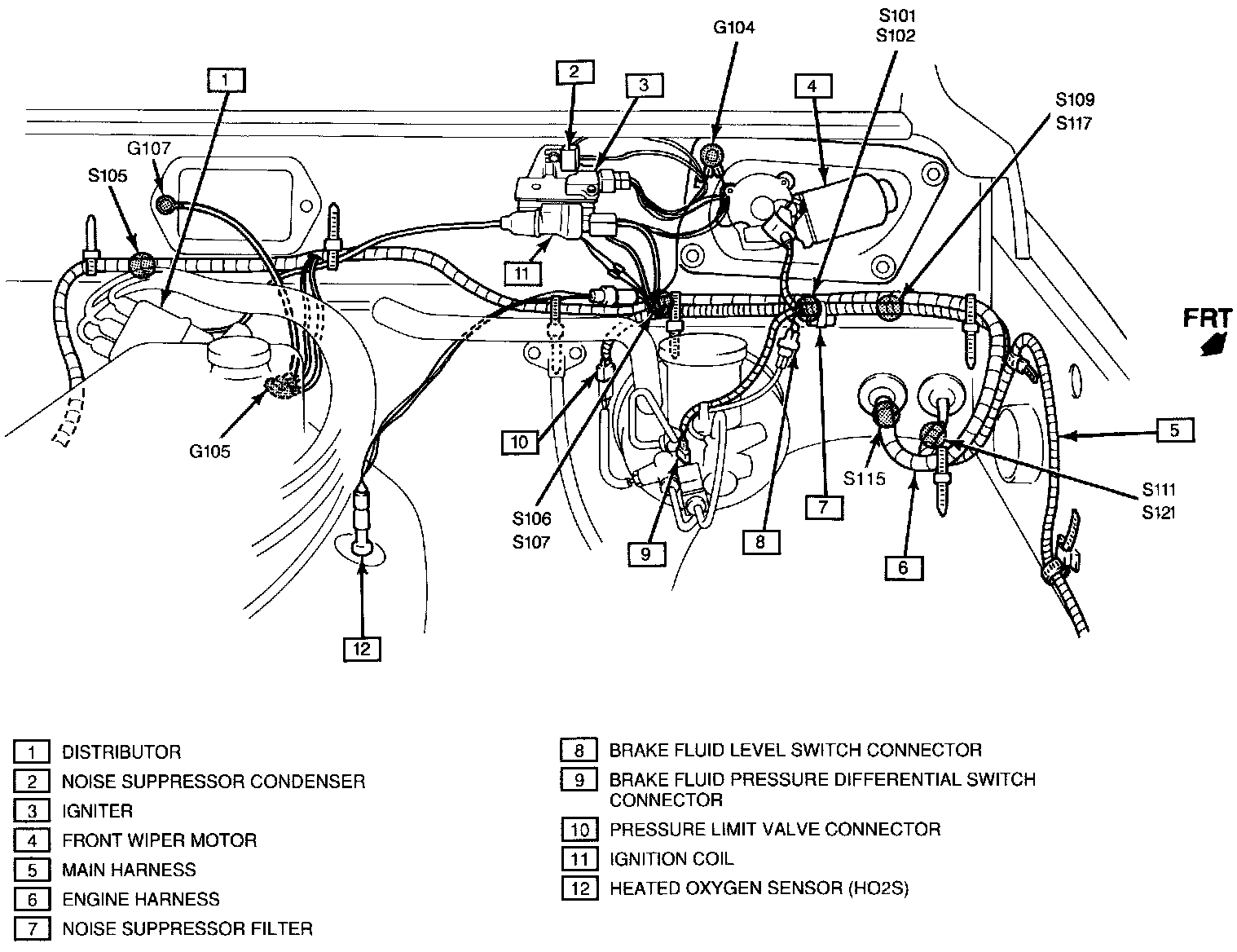

Ignition Control Module: Locations

LH Rear Engine Compartment:
