Home >> GMC Truck >> 2011 >> Yukon 2WD V8-6.0L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Hybrid Power Control Module >> Diagrams >> Accessory DC Power Control Module X3

Accessory DC Power Control Module X3




Component Connector End Views

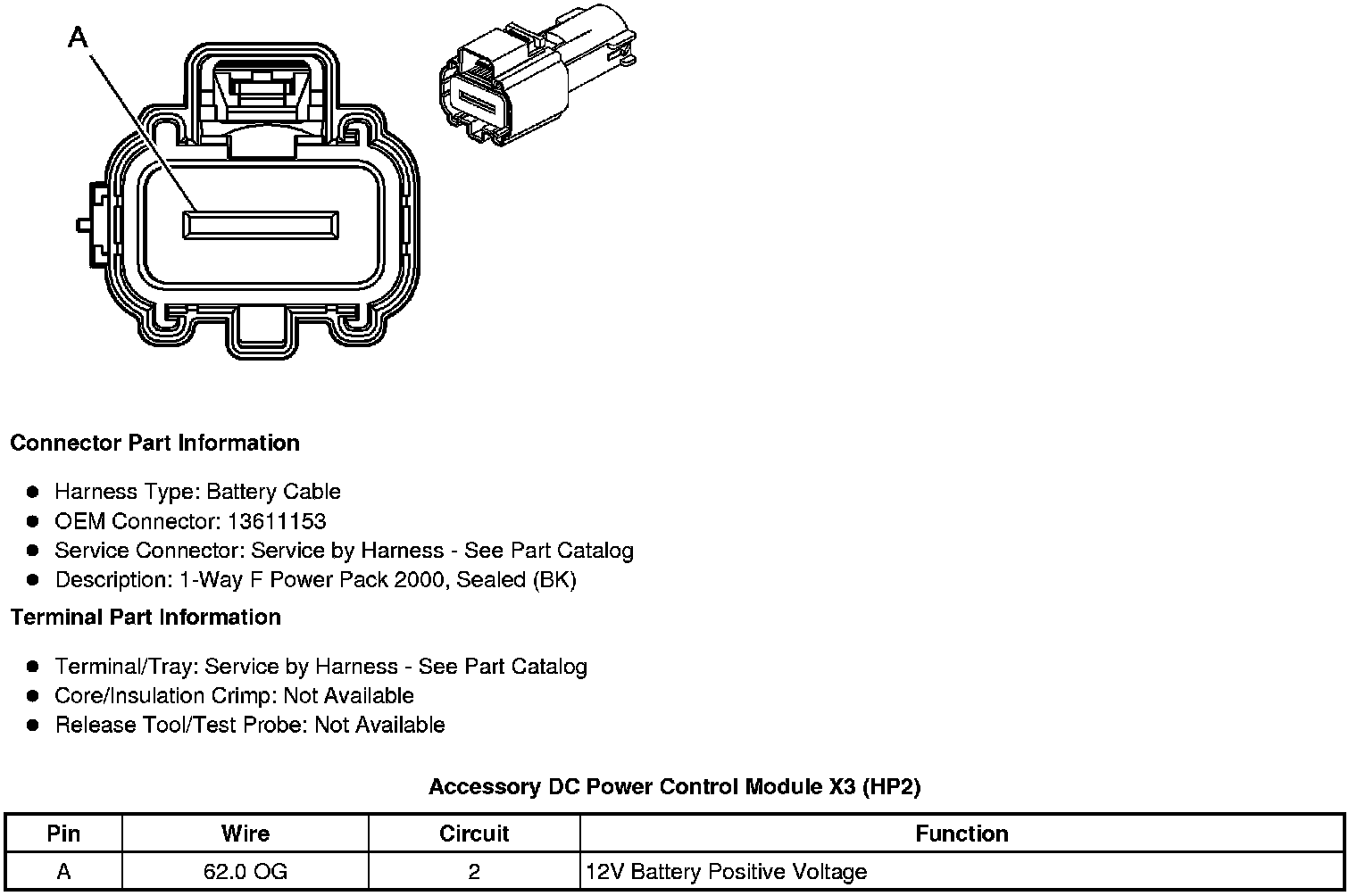

Accessory DC Power Control Module X3 (HP2)
