Accessory AC/DC Power Control Module X2
Accessory AC/DC Power Control Module X2

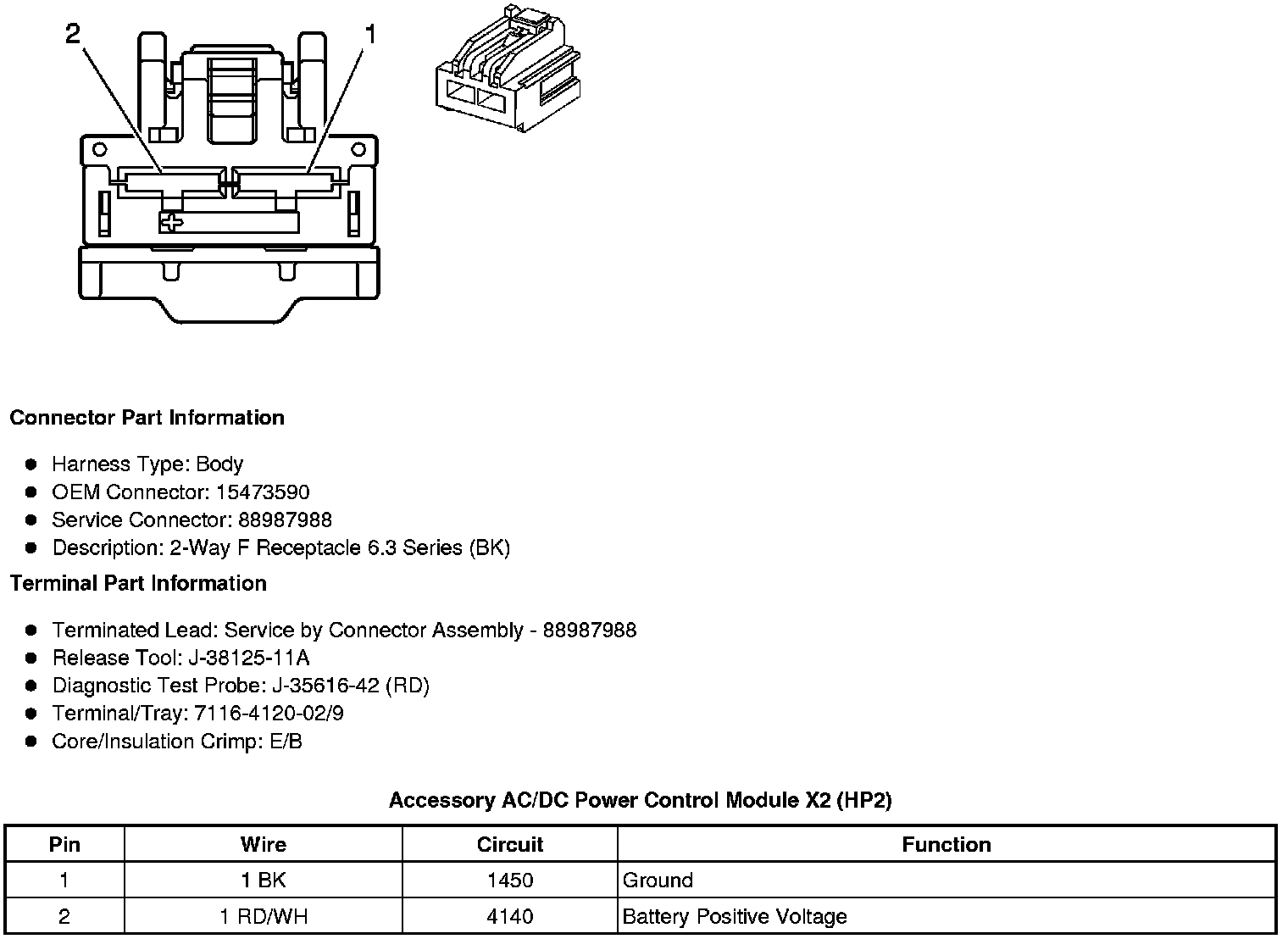

Component Connector End Views
Accessory AC/DC Power Control Module X2 (HP2)
