Home >> GMC Truck >> 2011 >> Yukon 2WD V8-6.0L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Control Module >> Diagrams >> Drive Motor Generator Battery Control Module X2

Drive Motor Generator Battery Control Module X2




Component Connector End Views

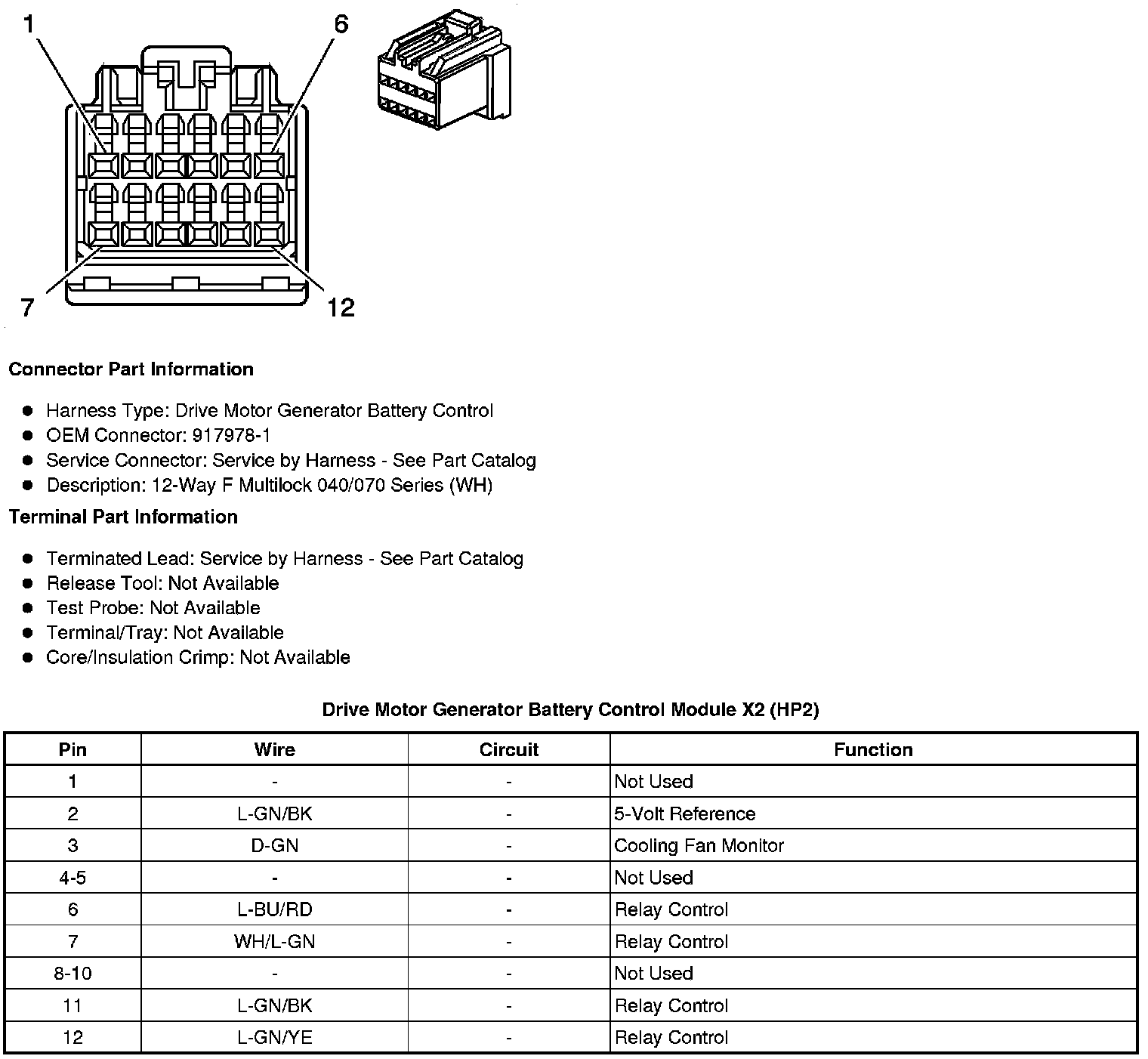

Drive Motor Generator Battery Control Module X2 (HP2)
