Home >> GMC Truck >> 2005 >> Safari Van 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

Body Control Module Connectors:

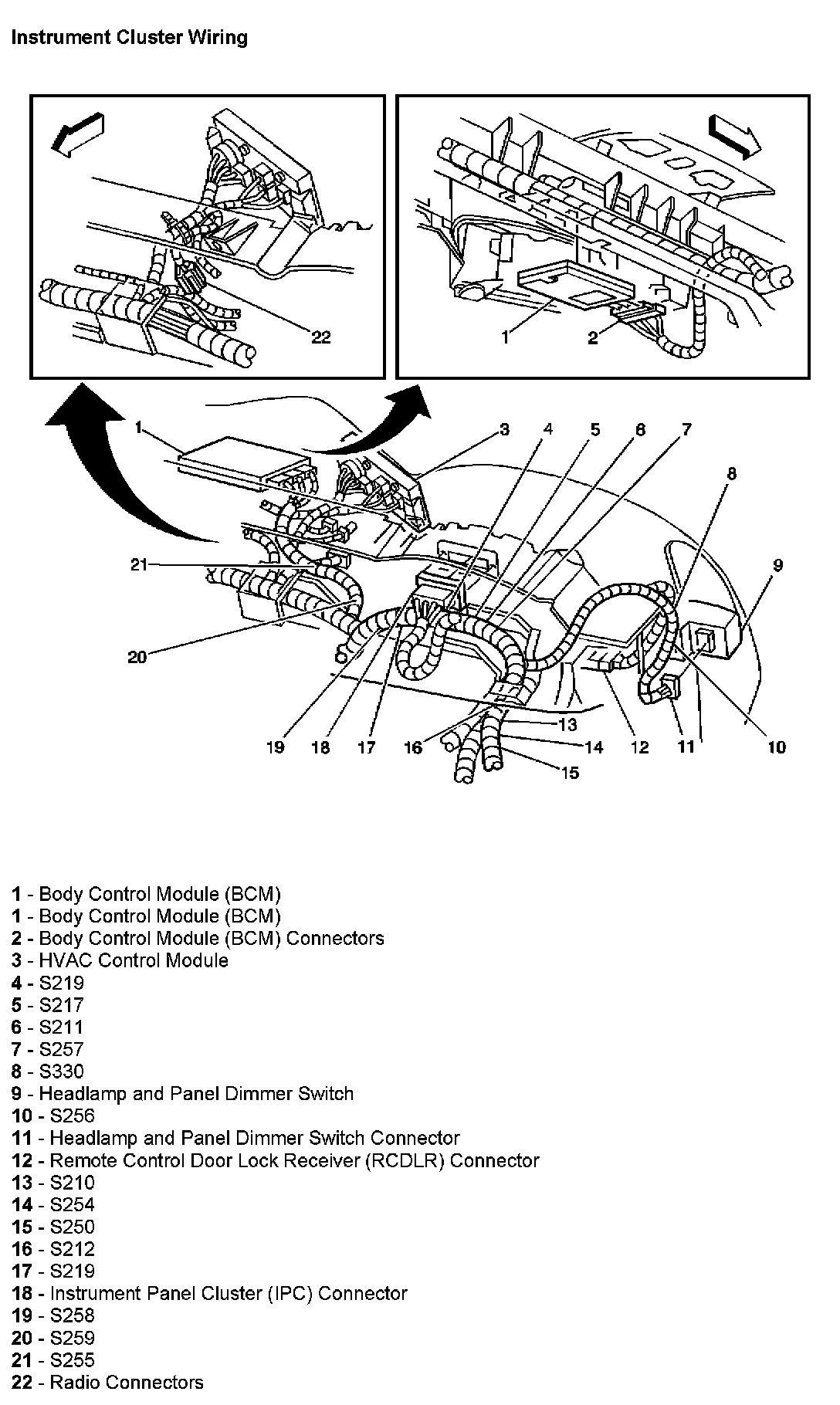

Instrument Cluster Wiring:
