GMC Truck
>>
2004
>>
Canyon 2WD L4-2.8L VIN 8
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
Coolant Temperature Sensor/Switch (For Computer): Locations

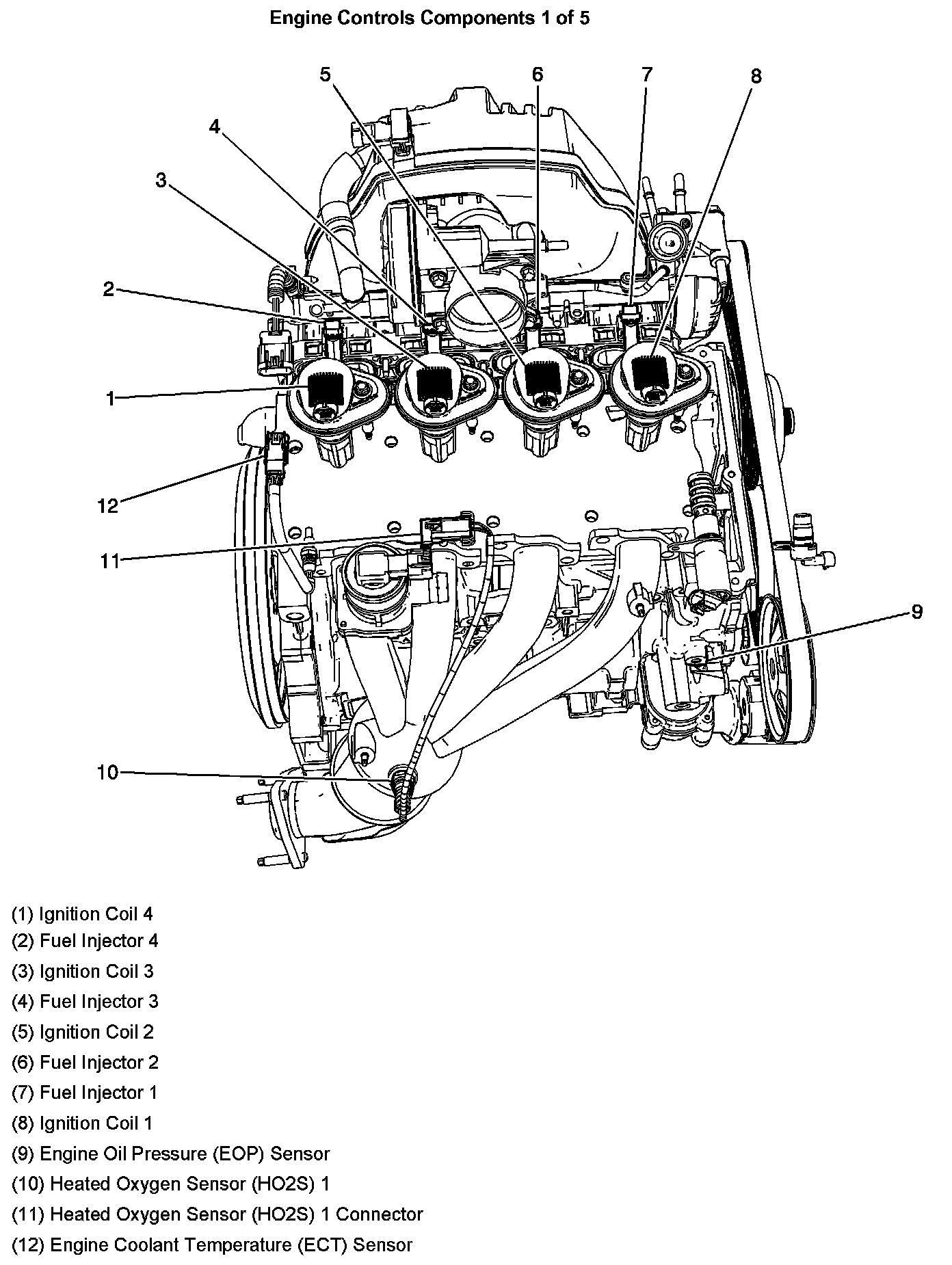

Engine Controls Components:

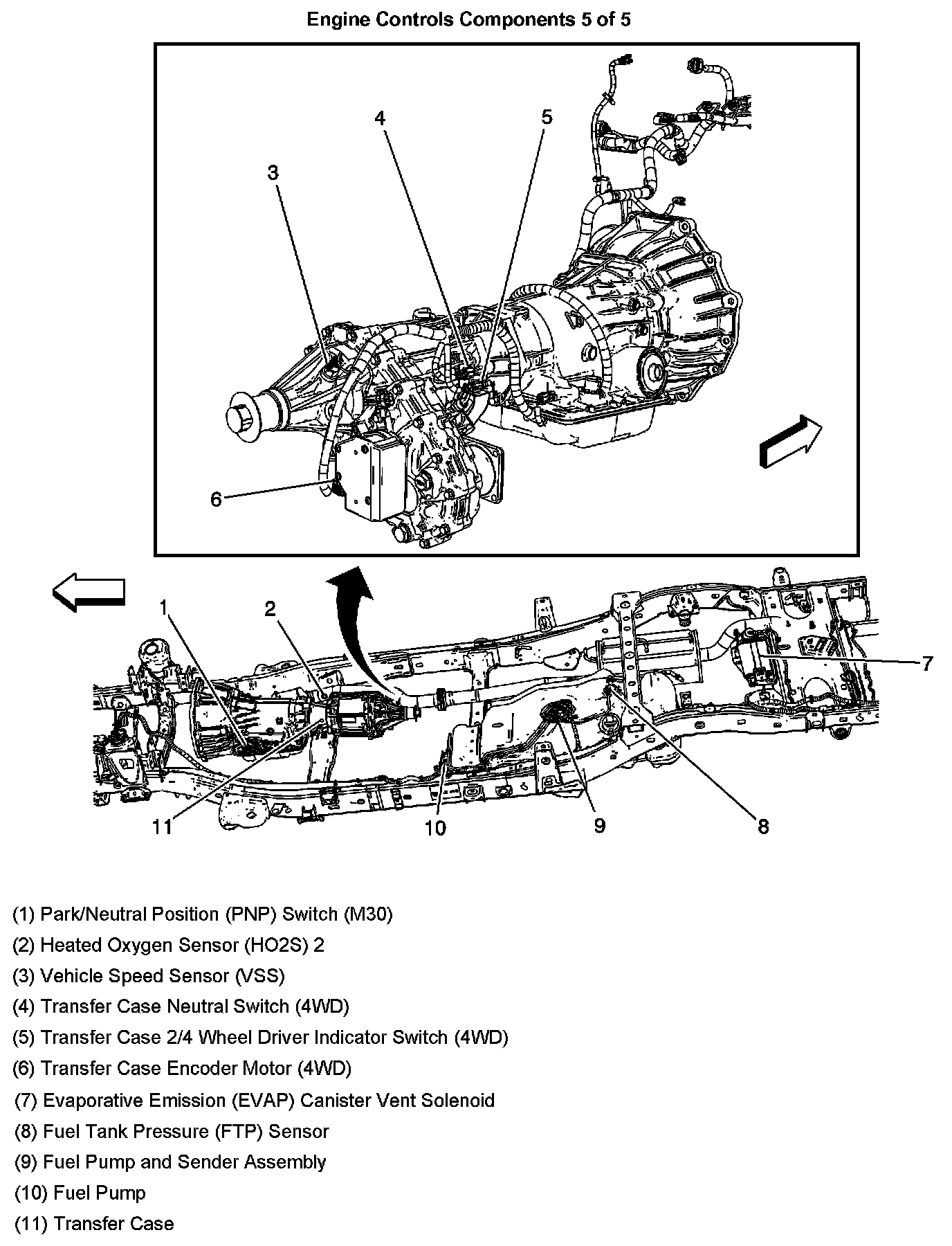

Engine Controls Components:

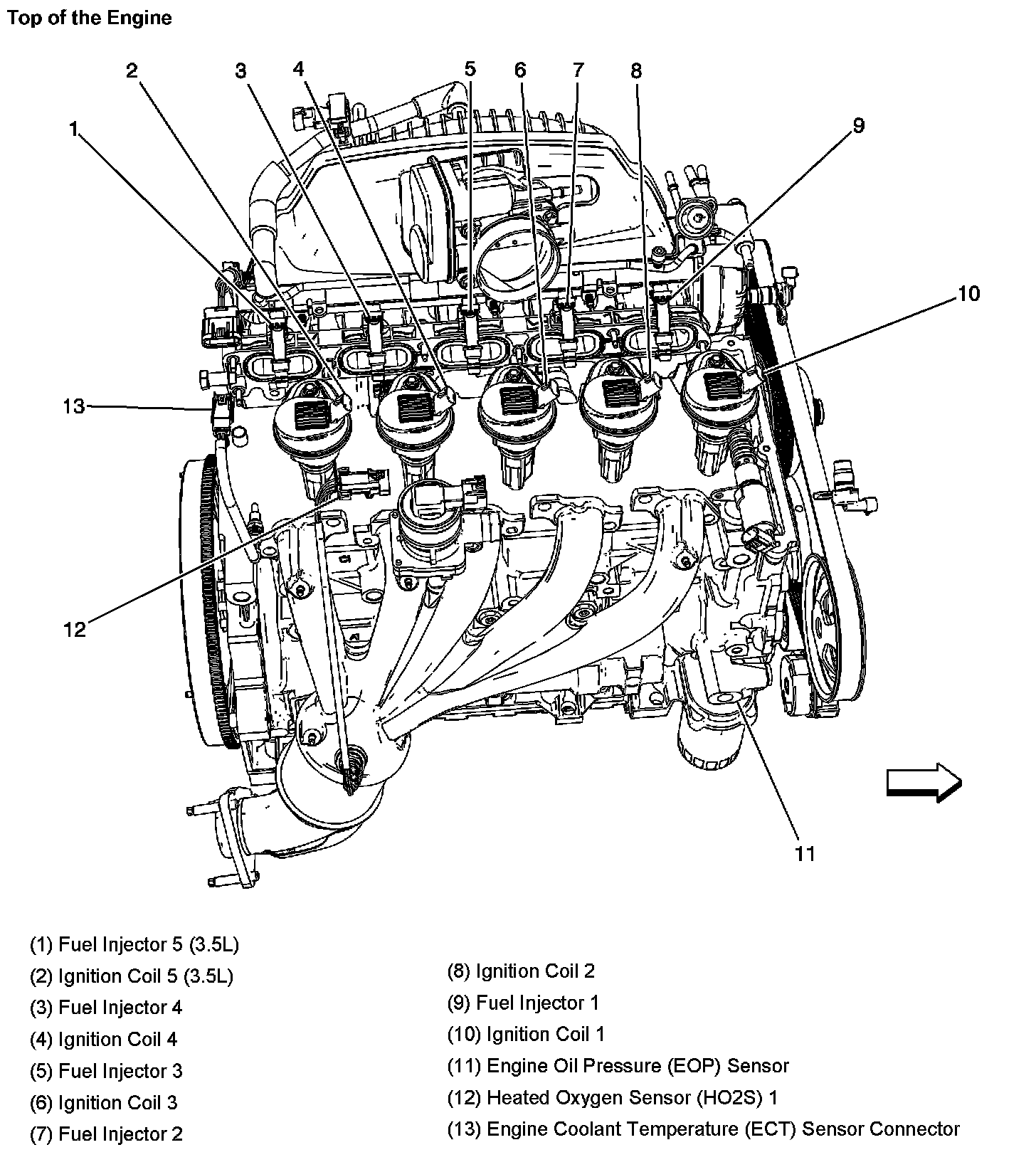

Top Of The Engine:

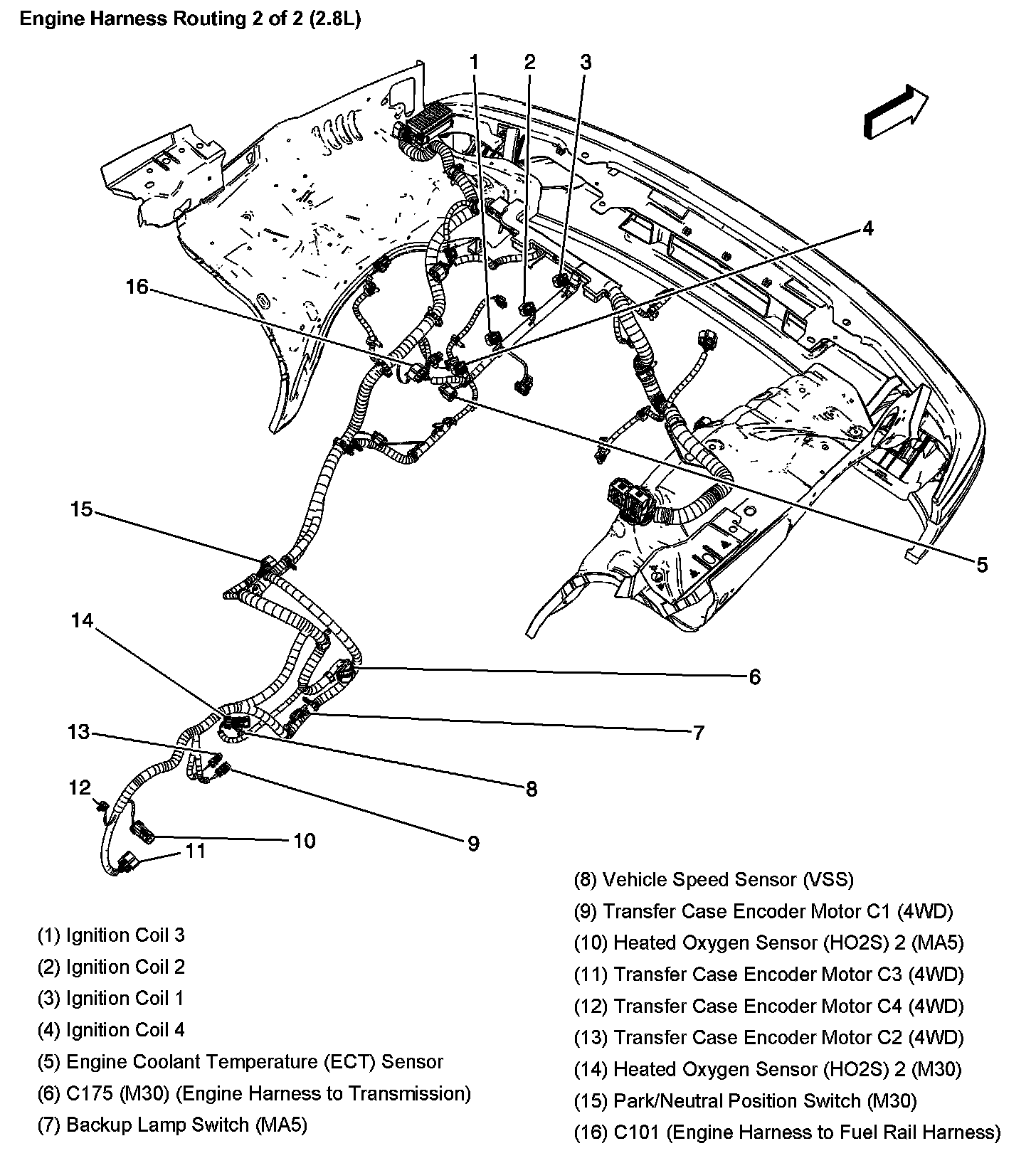

Engine Harness Routing (2.8L) Part 2:
