Control Module HVAC: Locations

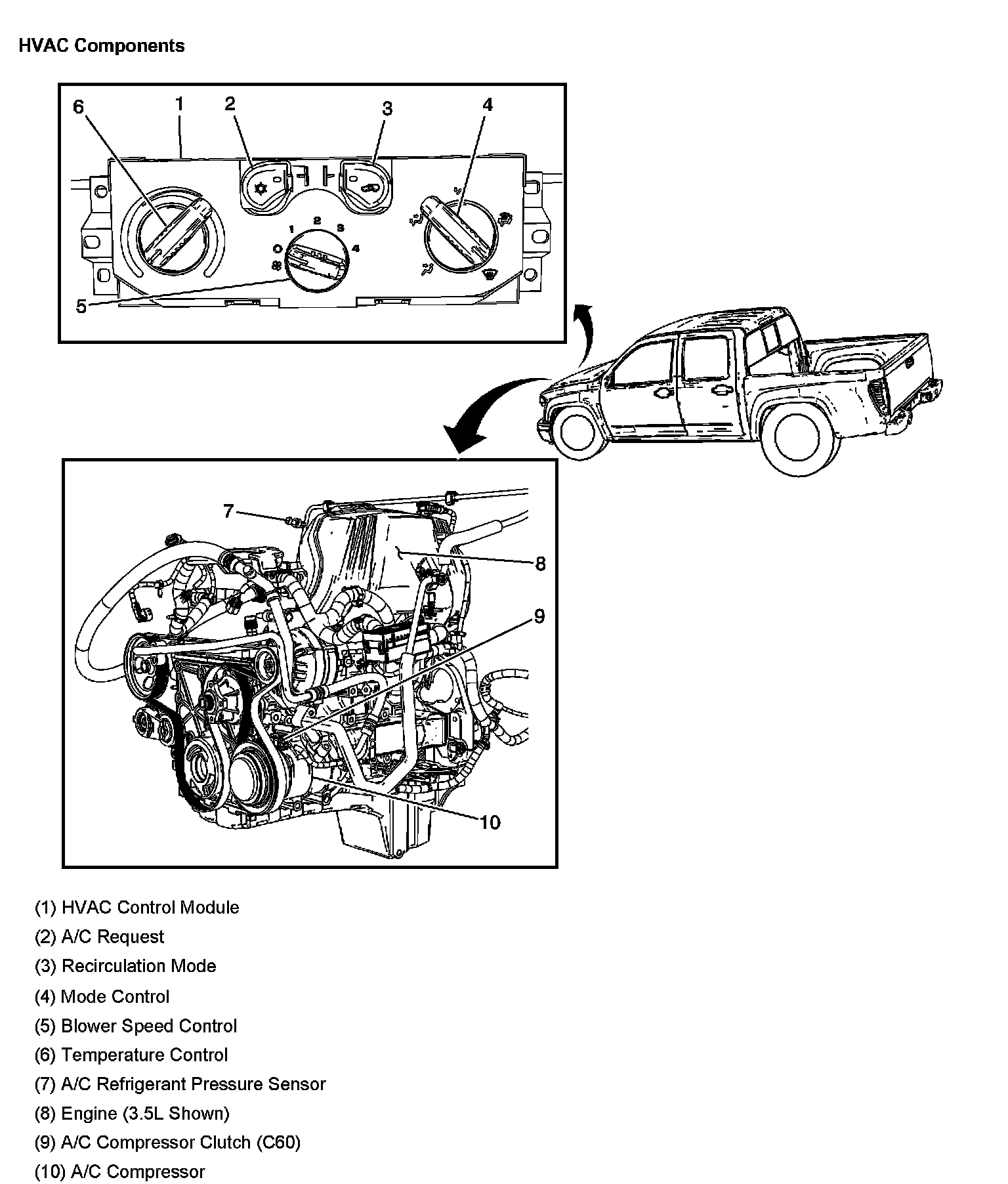

HVAC Components:

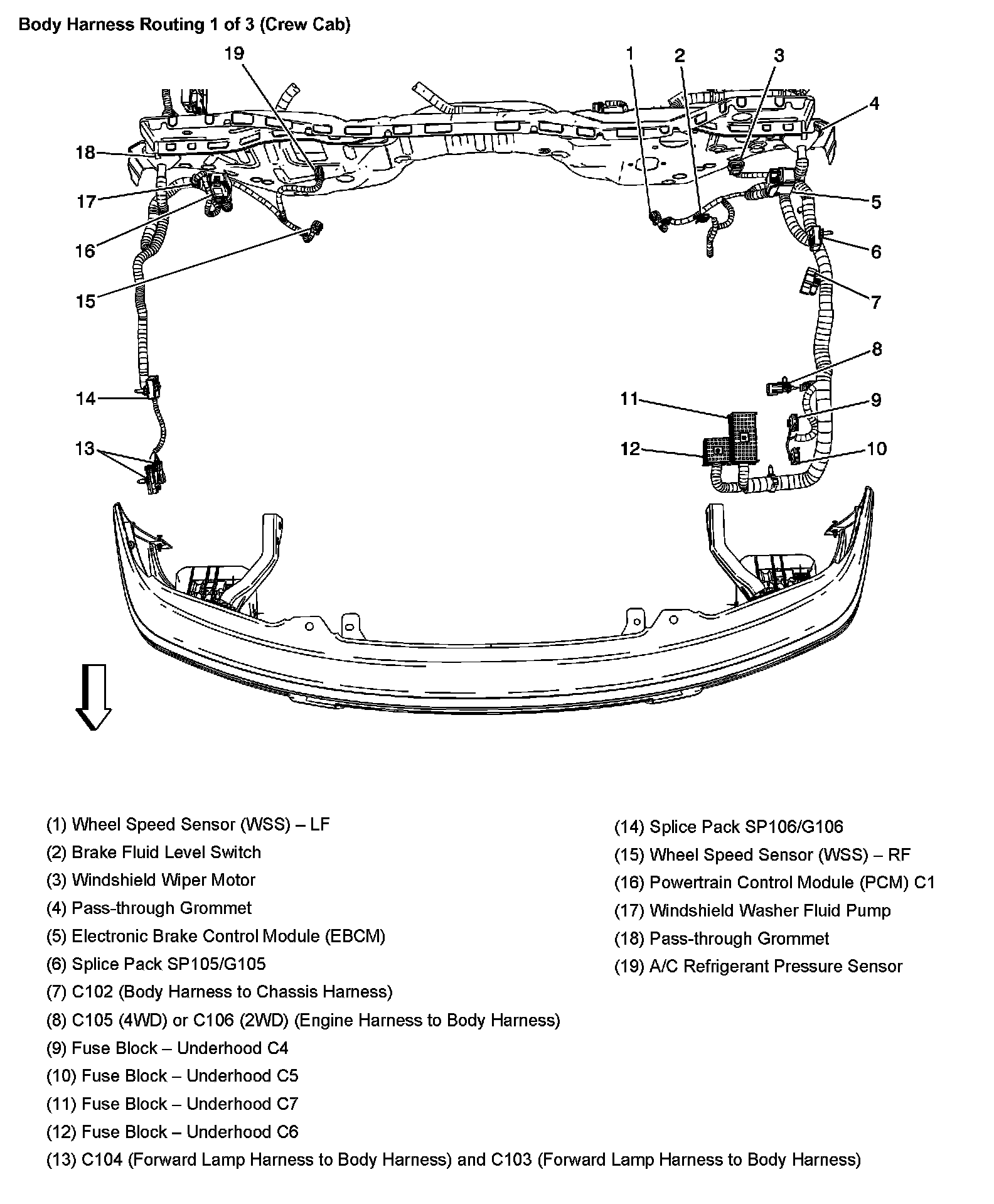

Body Harness Routing (Crew Cab) Part 1:

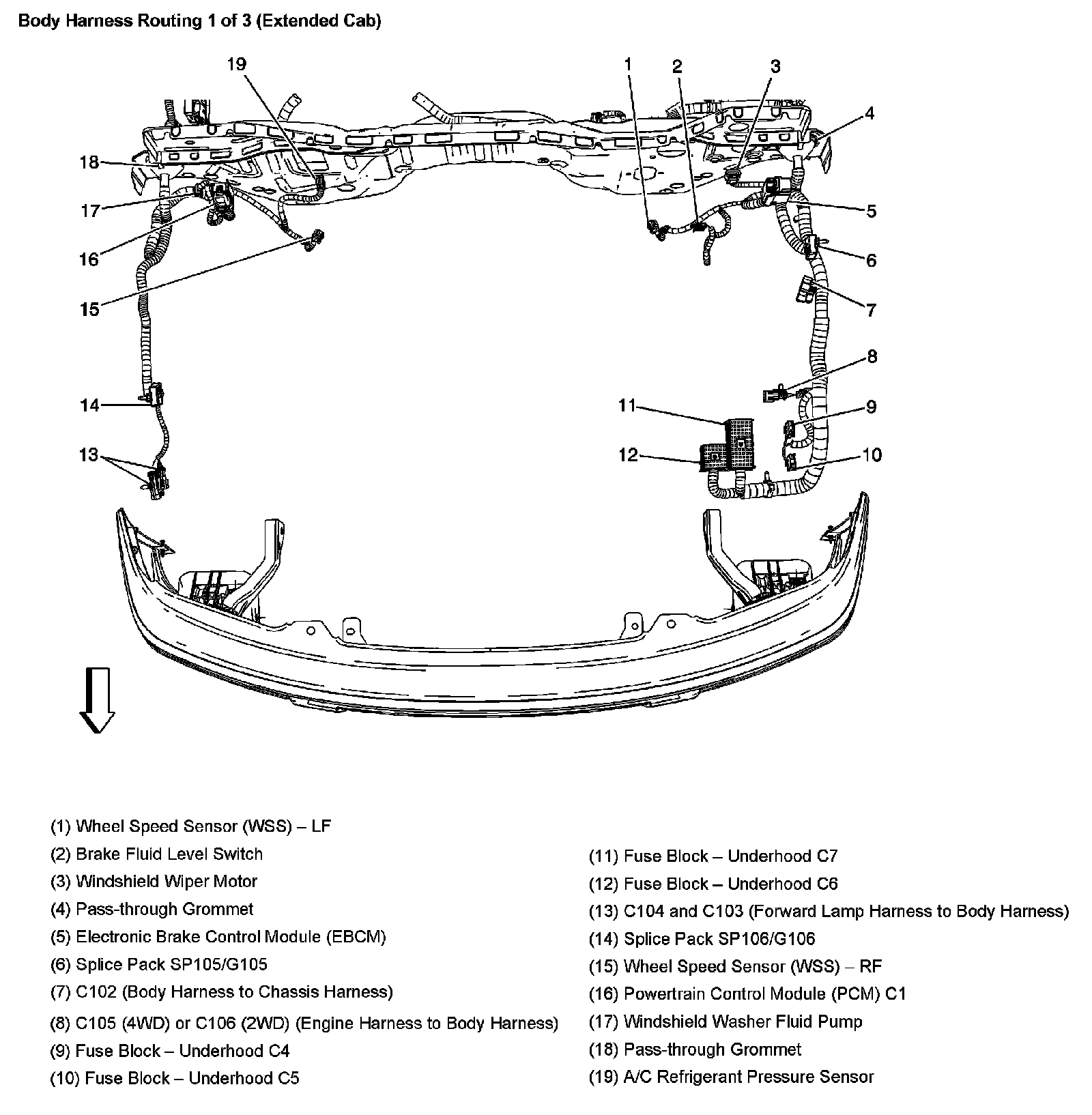

Body Harness Routing (Extended Cab) Part 1:

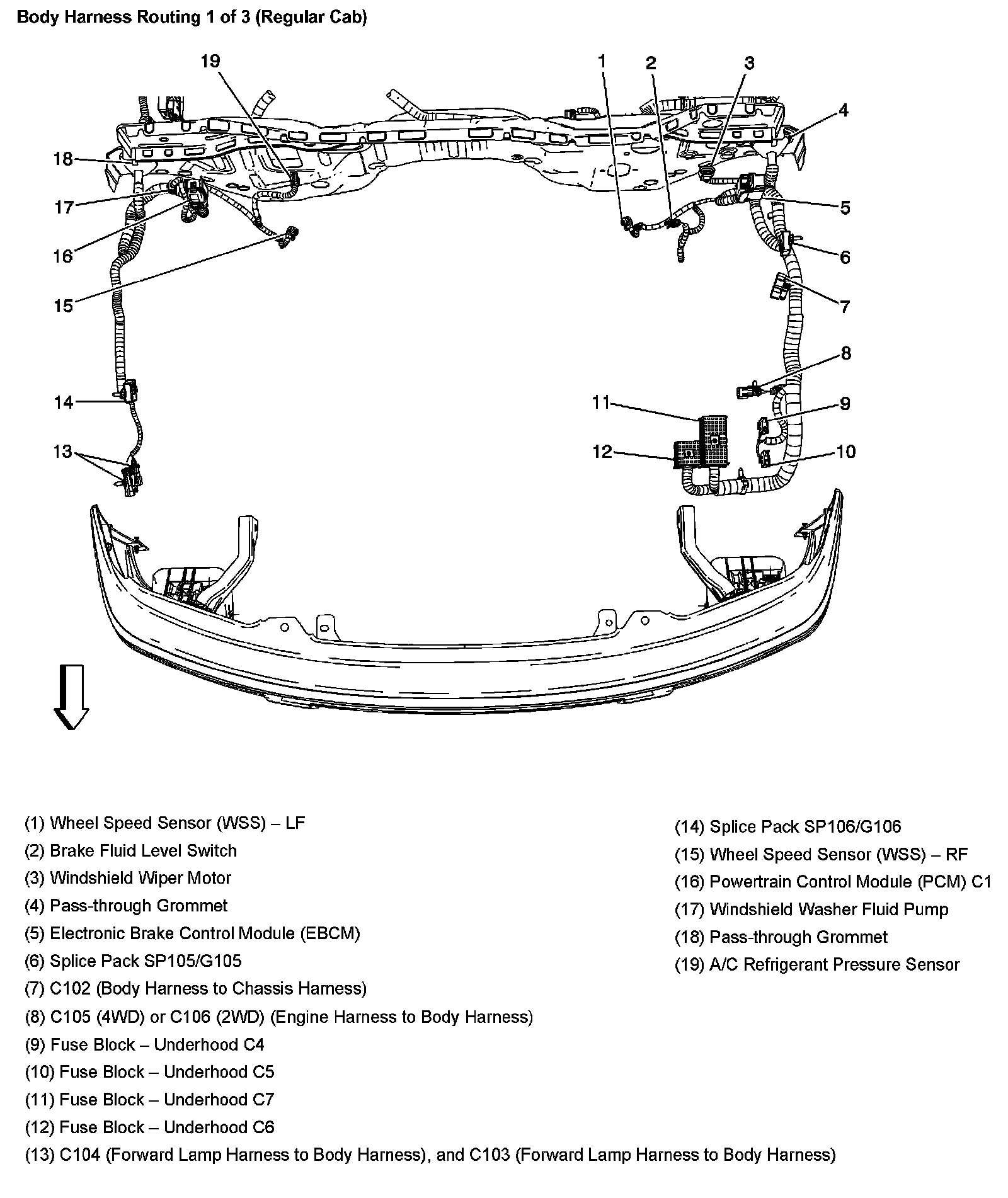

Body Harness Routing (Regular Cab) Part 1:
