Home >> GMC Truck >> 1997 >> Yukon 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue)

C1 (Blue)

Connector End View:





Connector View

Description:

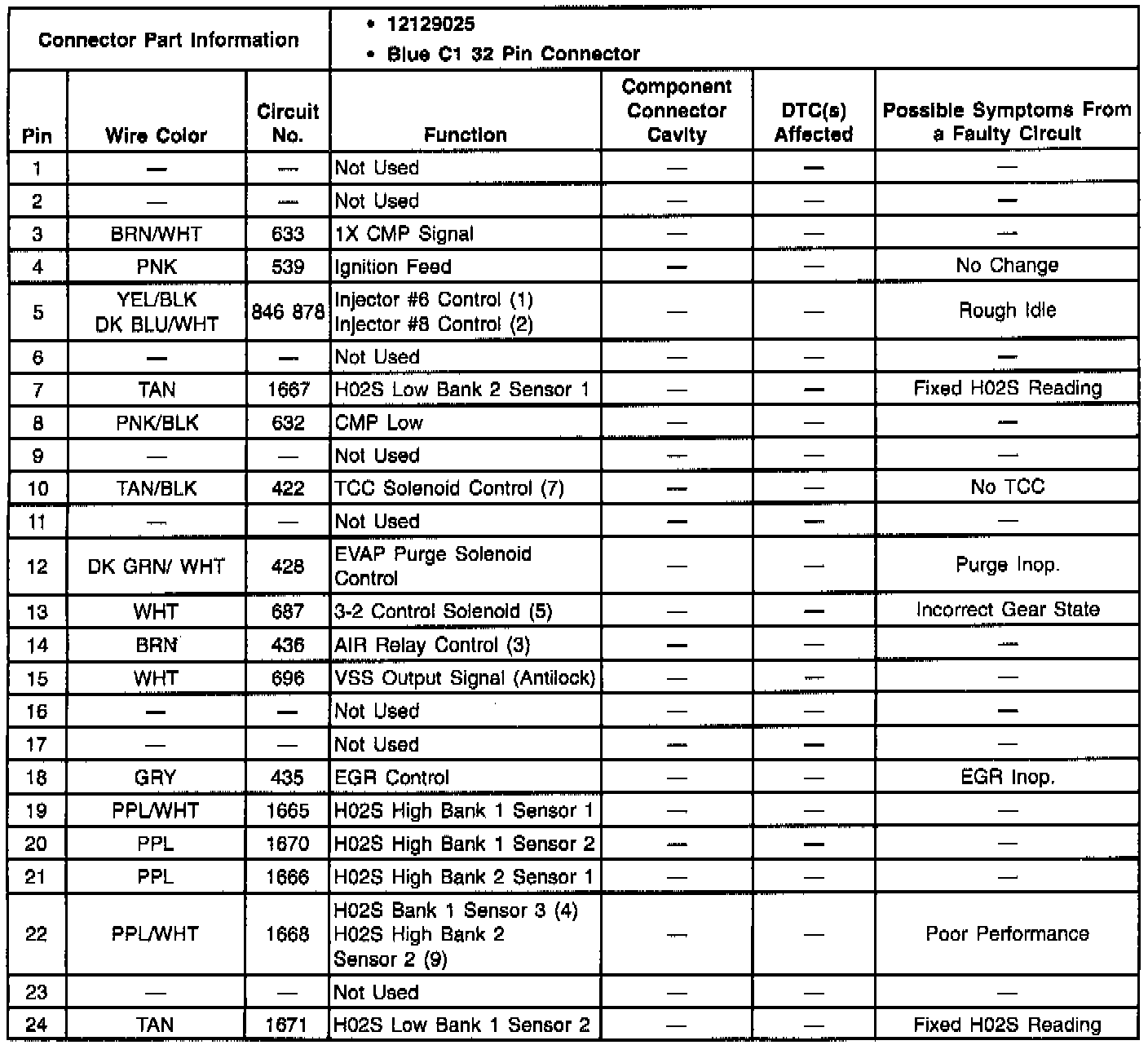

Pins 1-24

Description:





Pins 25-32
