C2 (Red)

Connector End View:





Connector View

Description:





Pins 1-5

Description:

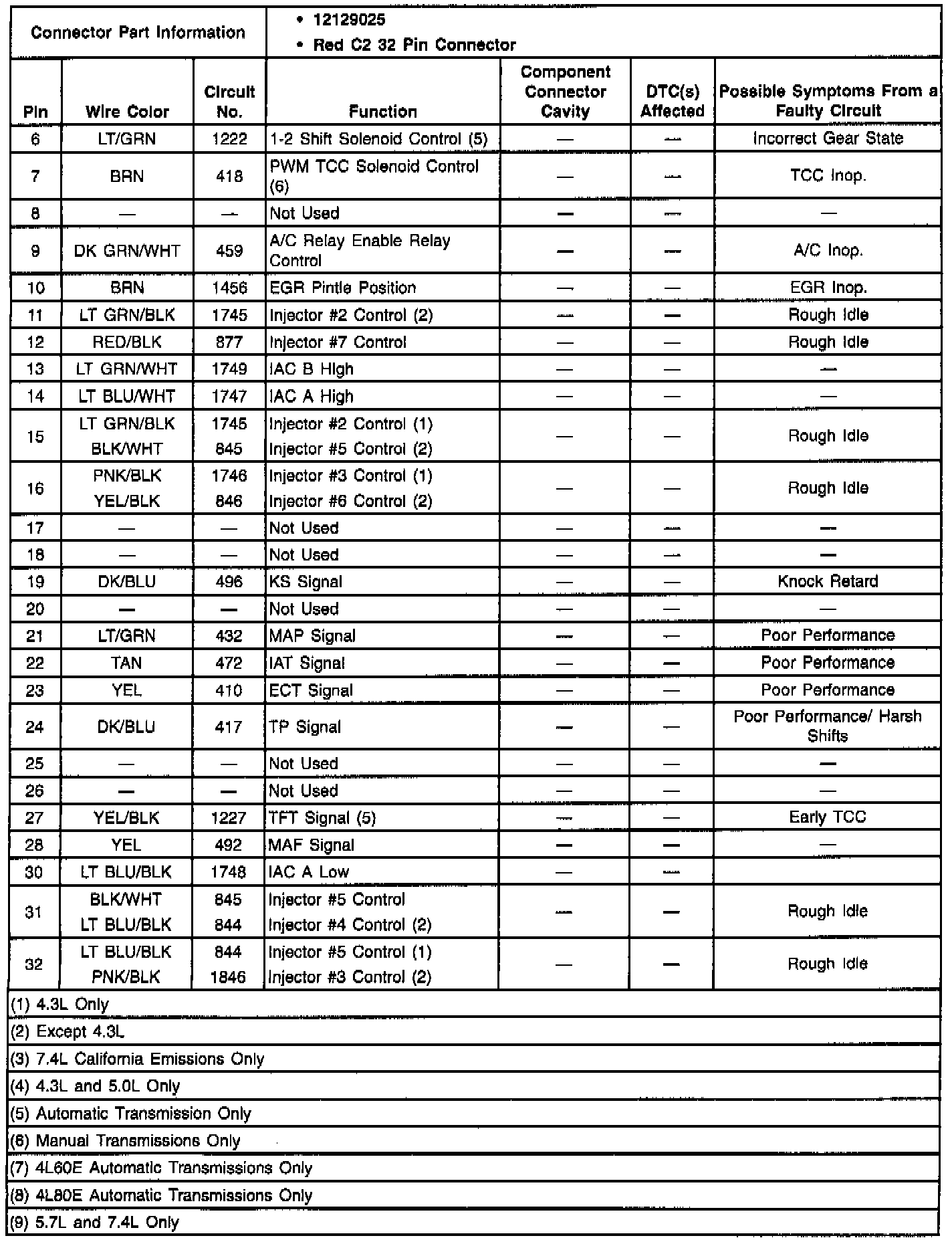

Pins 6-32
