Auxiliary Heater and A/C Control Module

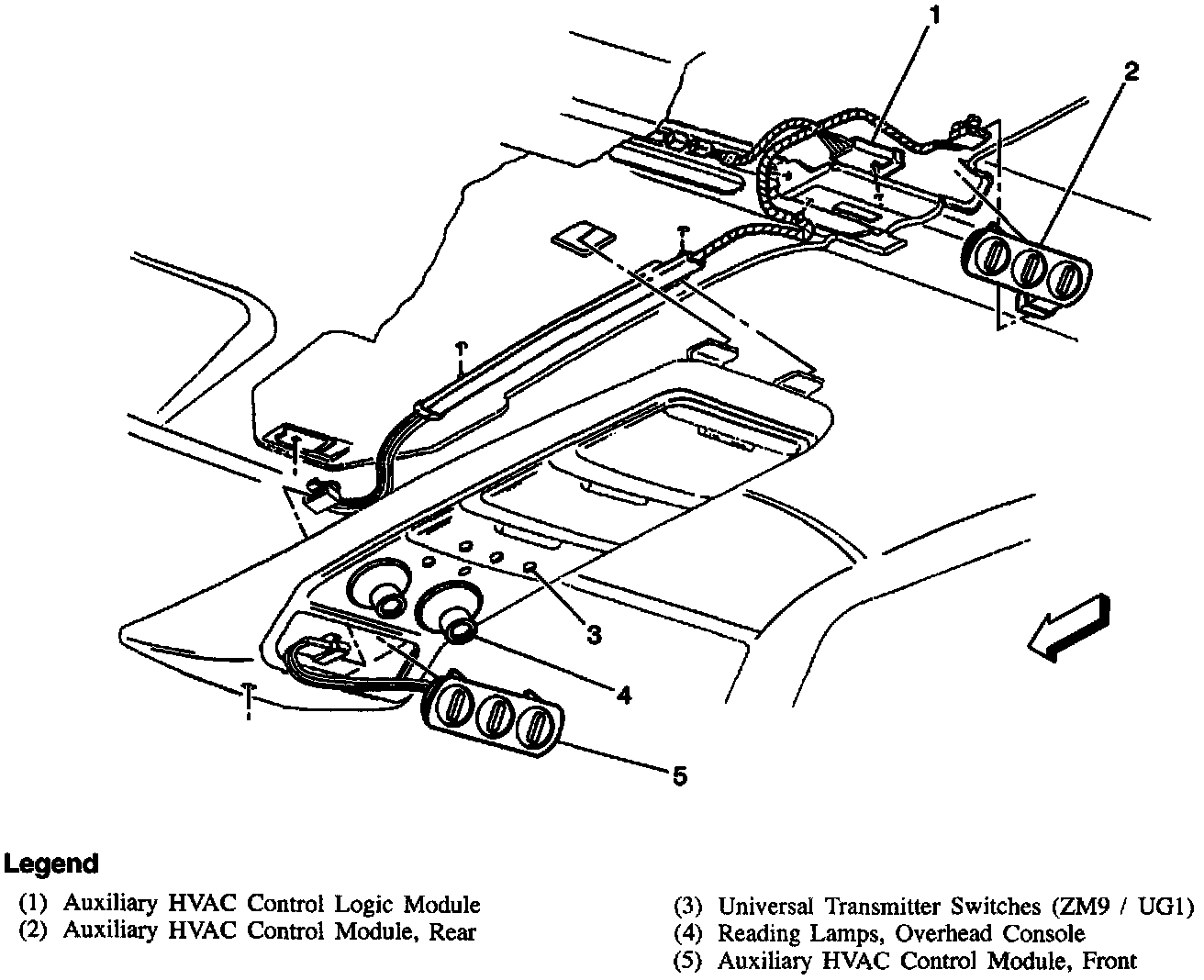

Overhead Console:





Control Modules are attached to Control Assemblies.
