Home >> GMC Truck >> 1993 >> Safari Van AWD V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> 4WAL Module

4WAL Module

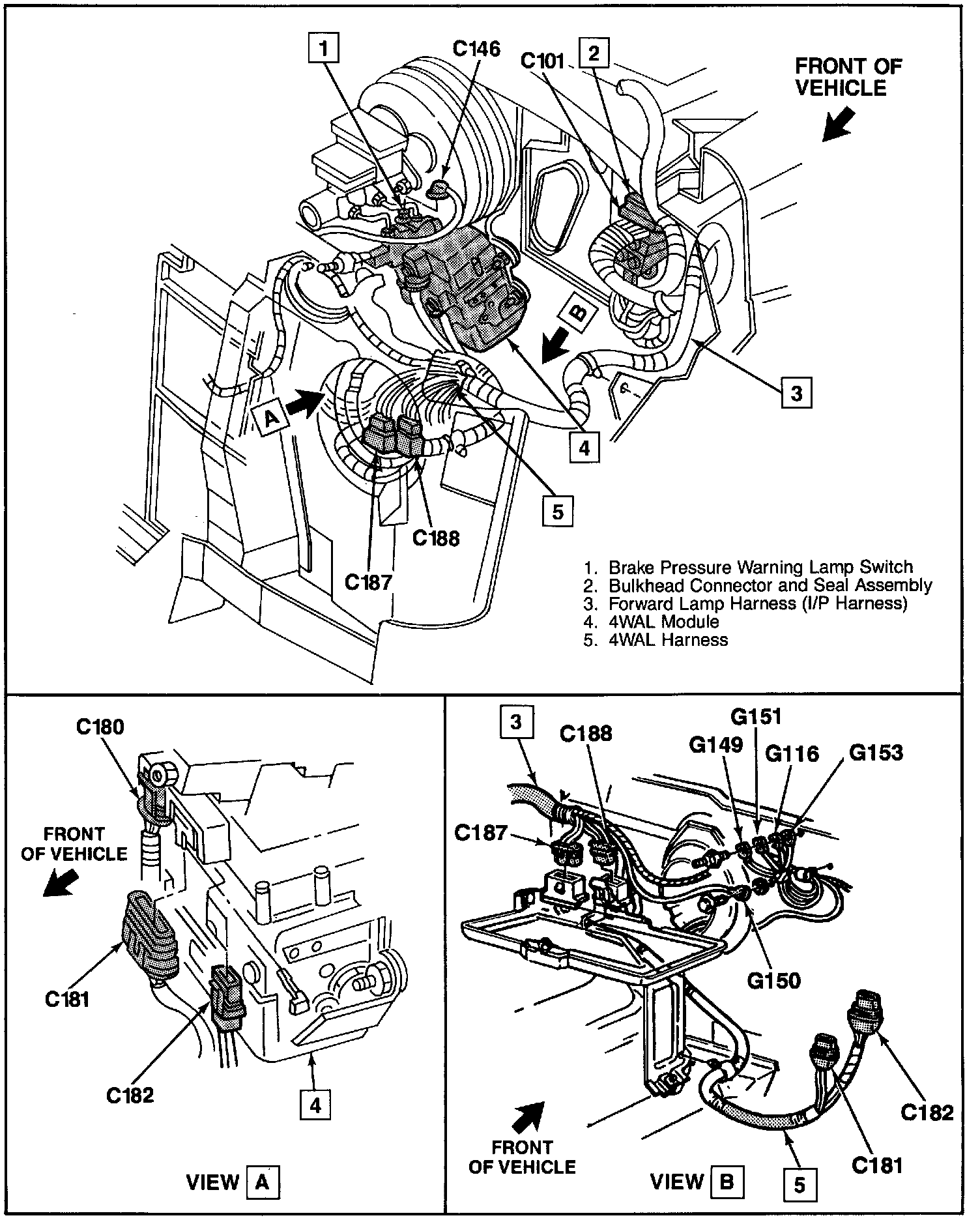

Four-wheel Antilock Brake Wiring, Engine Compartment:
