Home >> GMC Truck >> 1992 >> Syclone V6-262 4.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

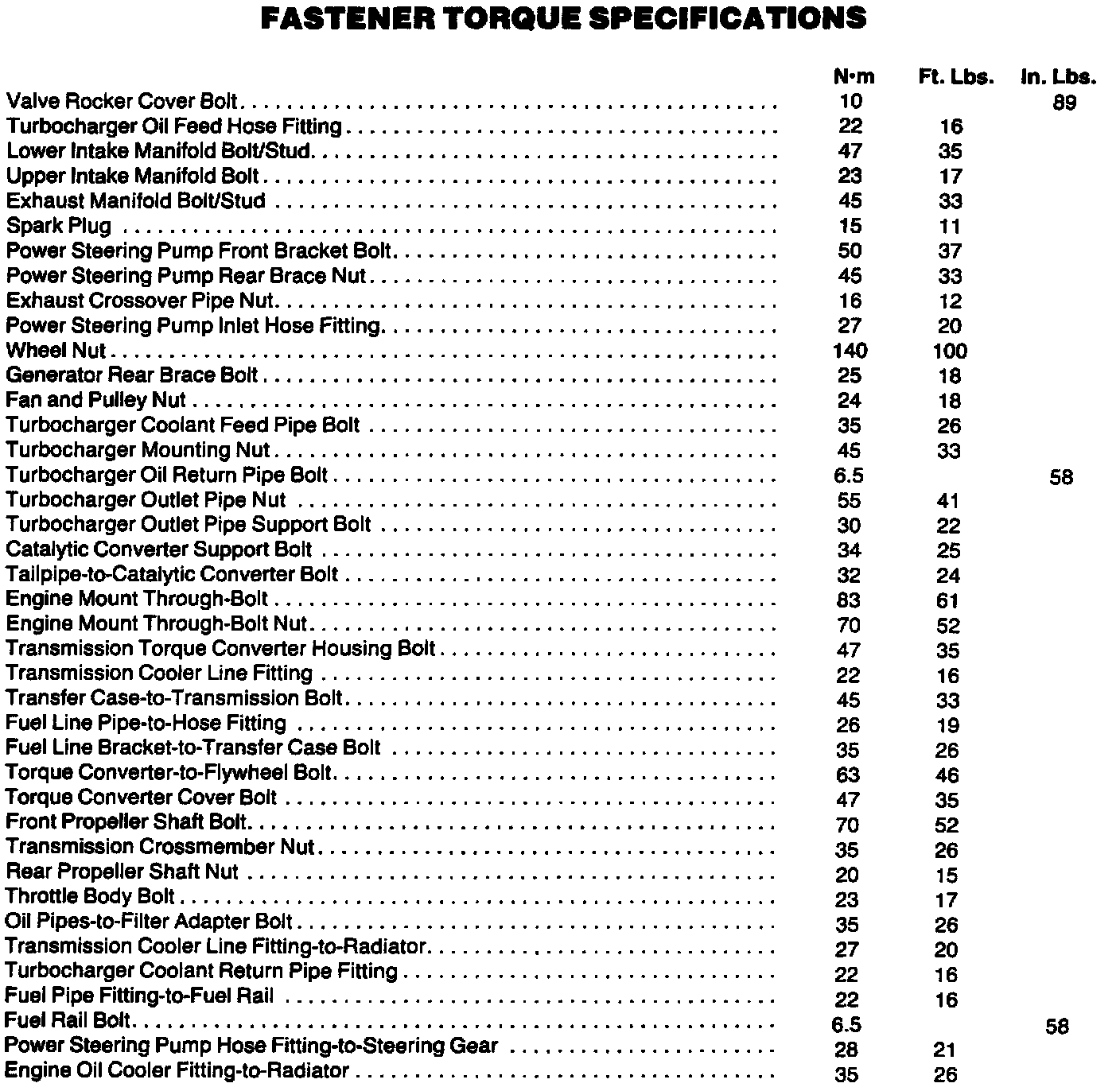

Torque Specifications:

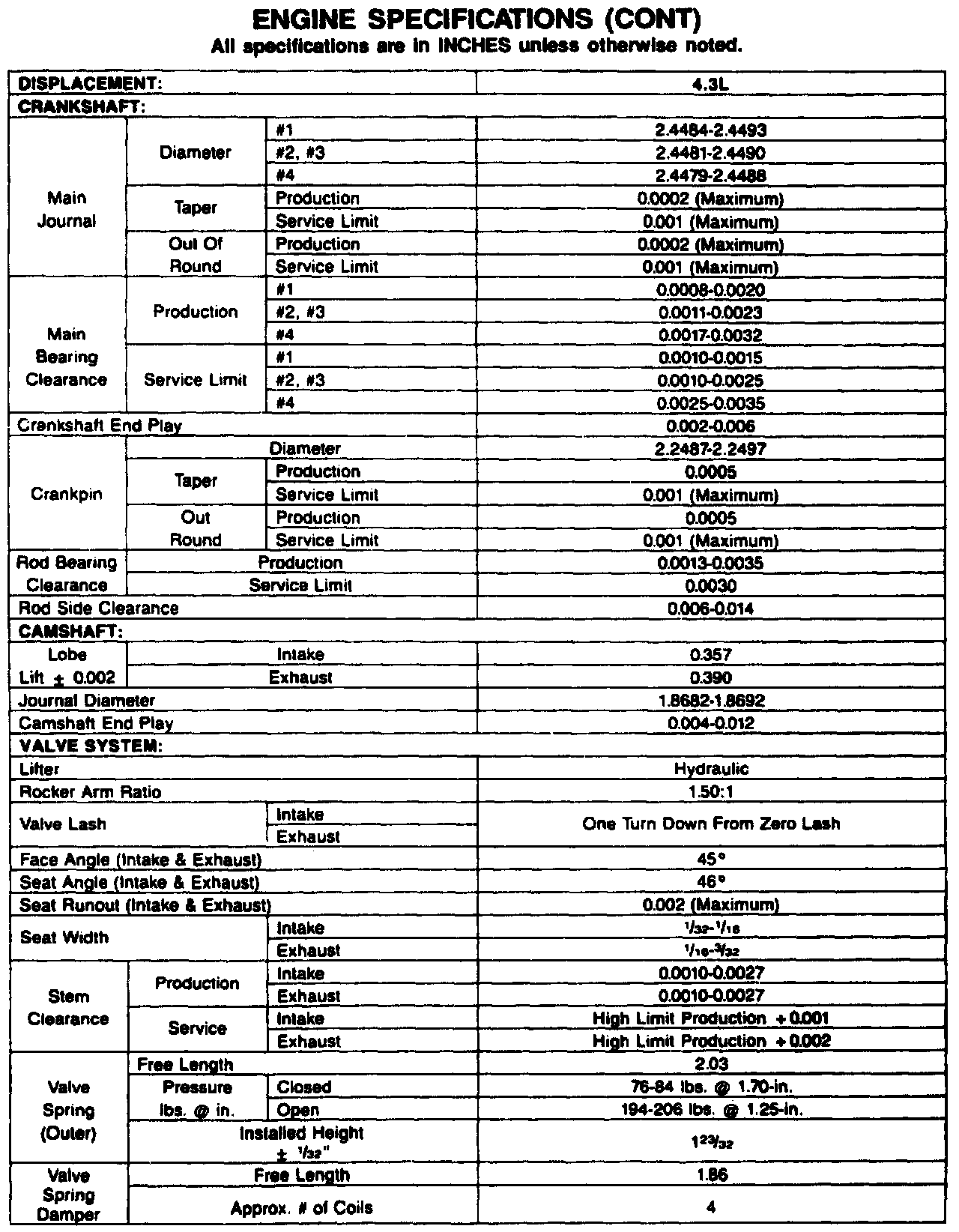

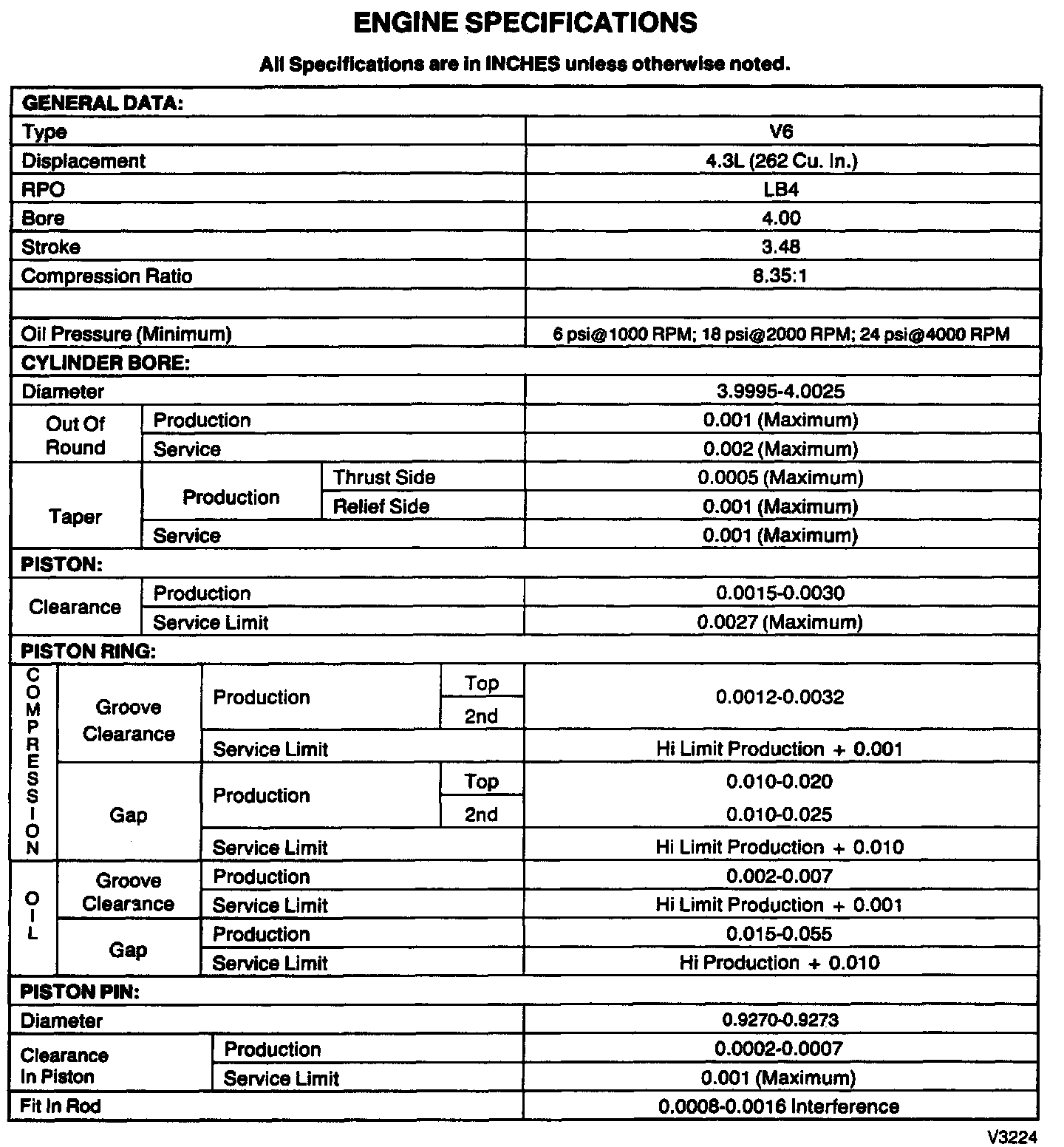

Engine Specifications:

Engine Specifications:
