Electronic Control Module Pinouts

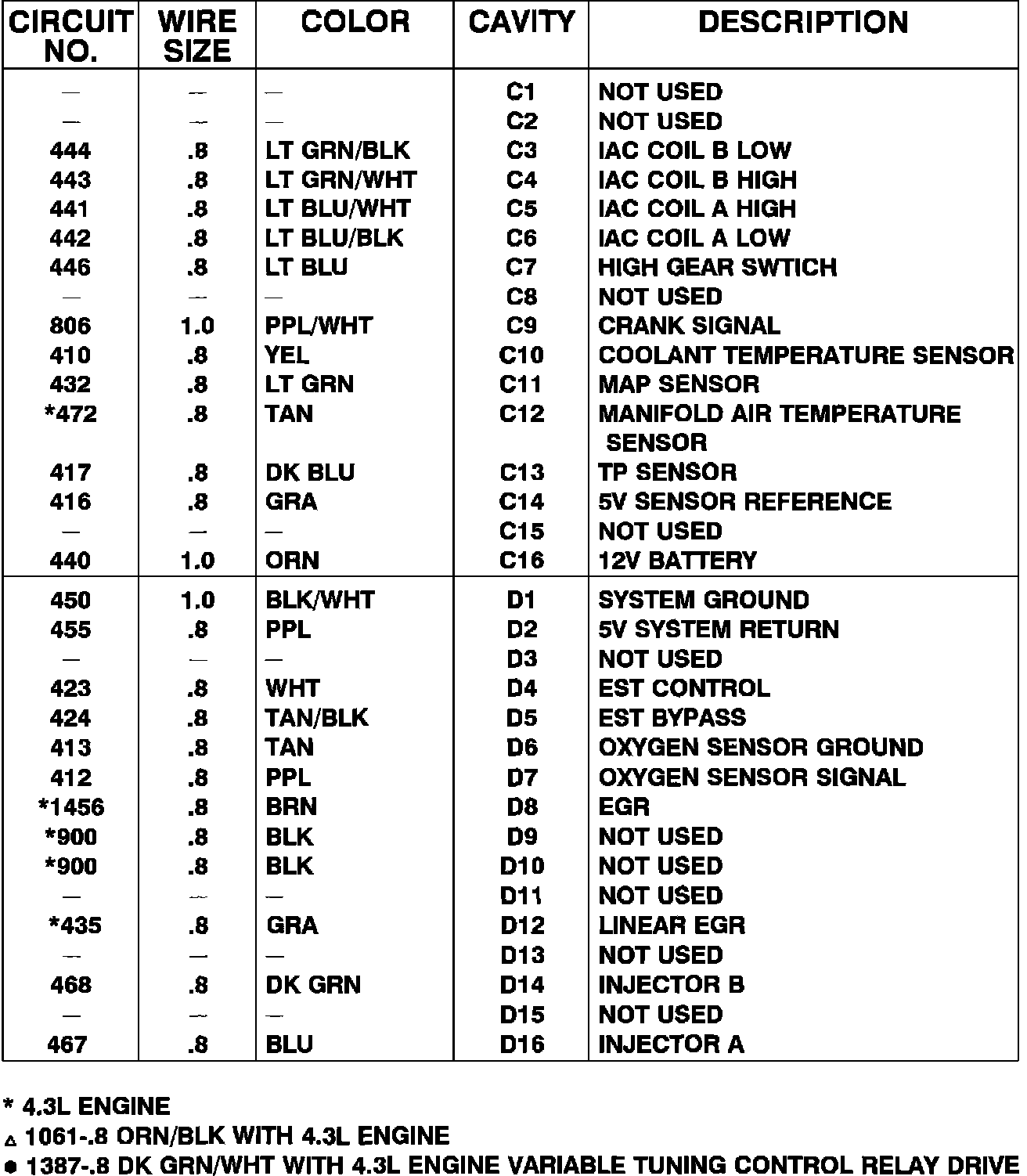

Electronic Control Module Pinouts:

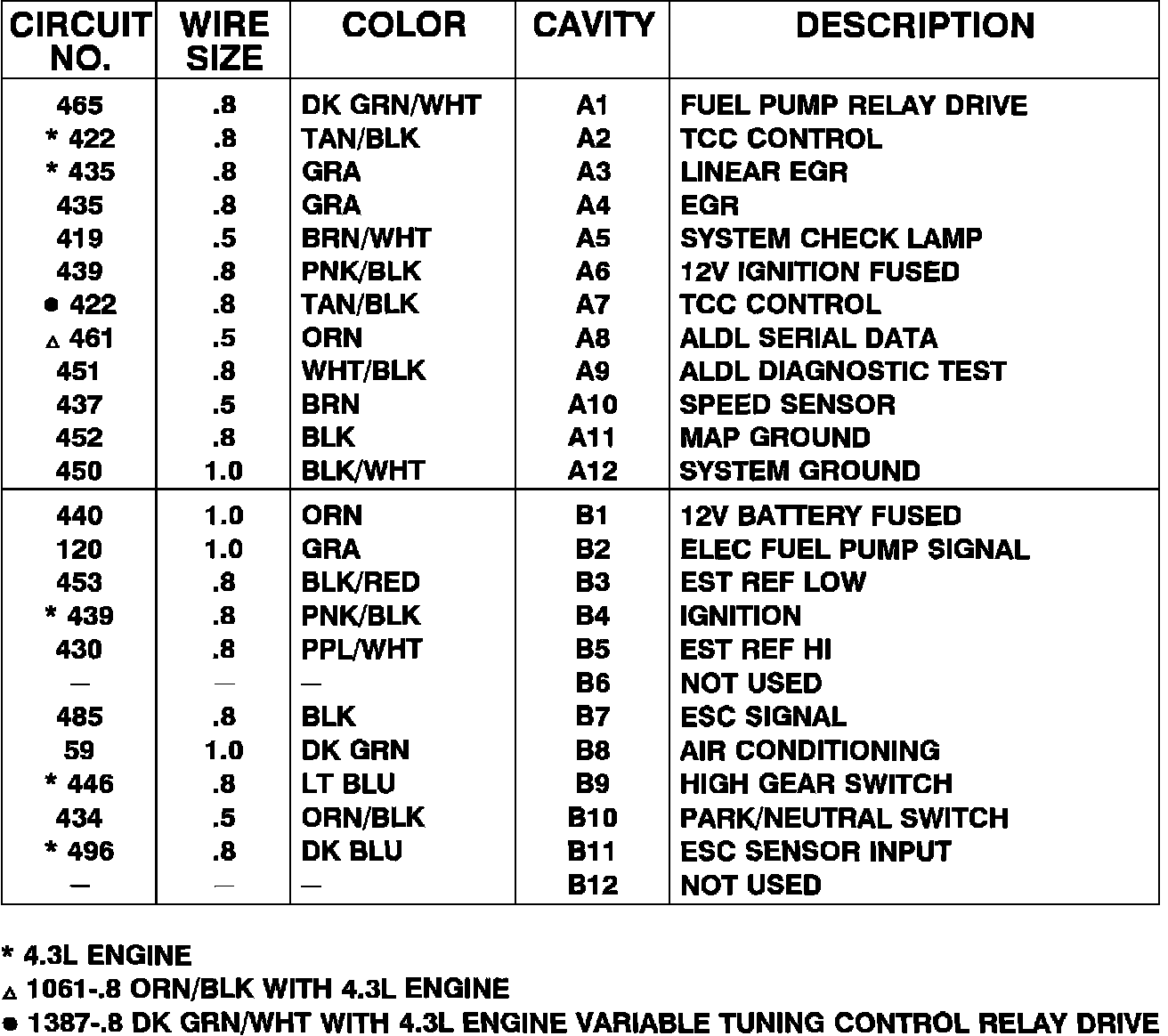

Electronic Control Module Pinouts:
