Electronic Spark Control Module: Locations

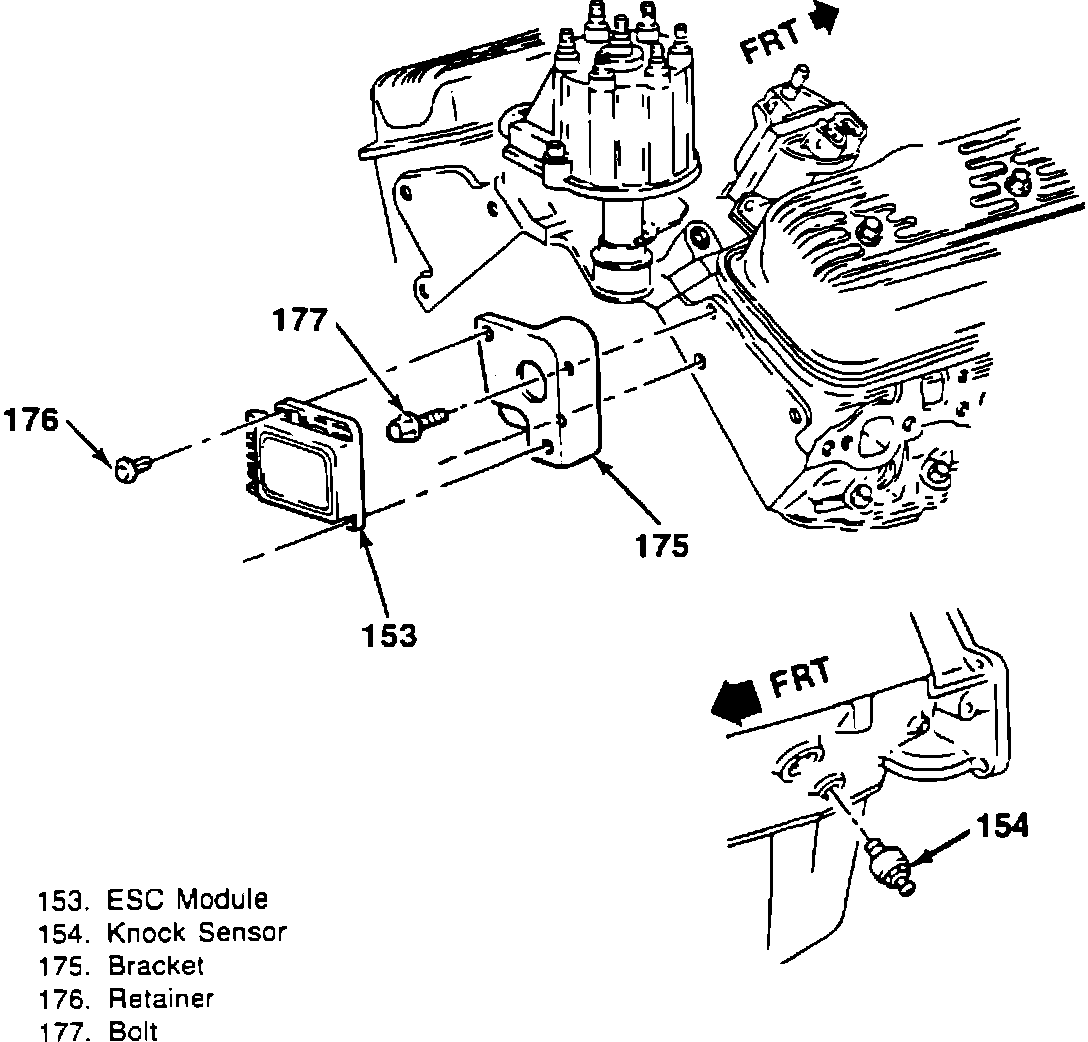

Electronic Spark Control On The 4.3L Engine:

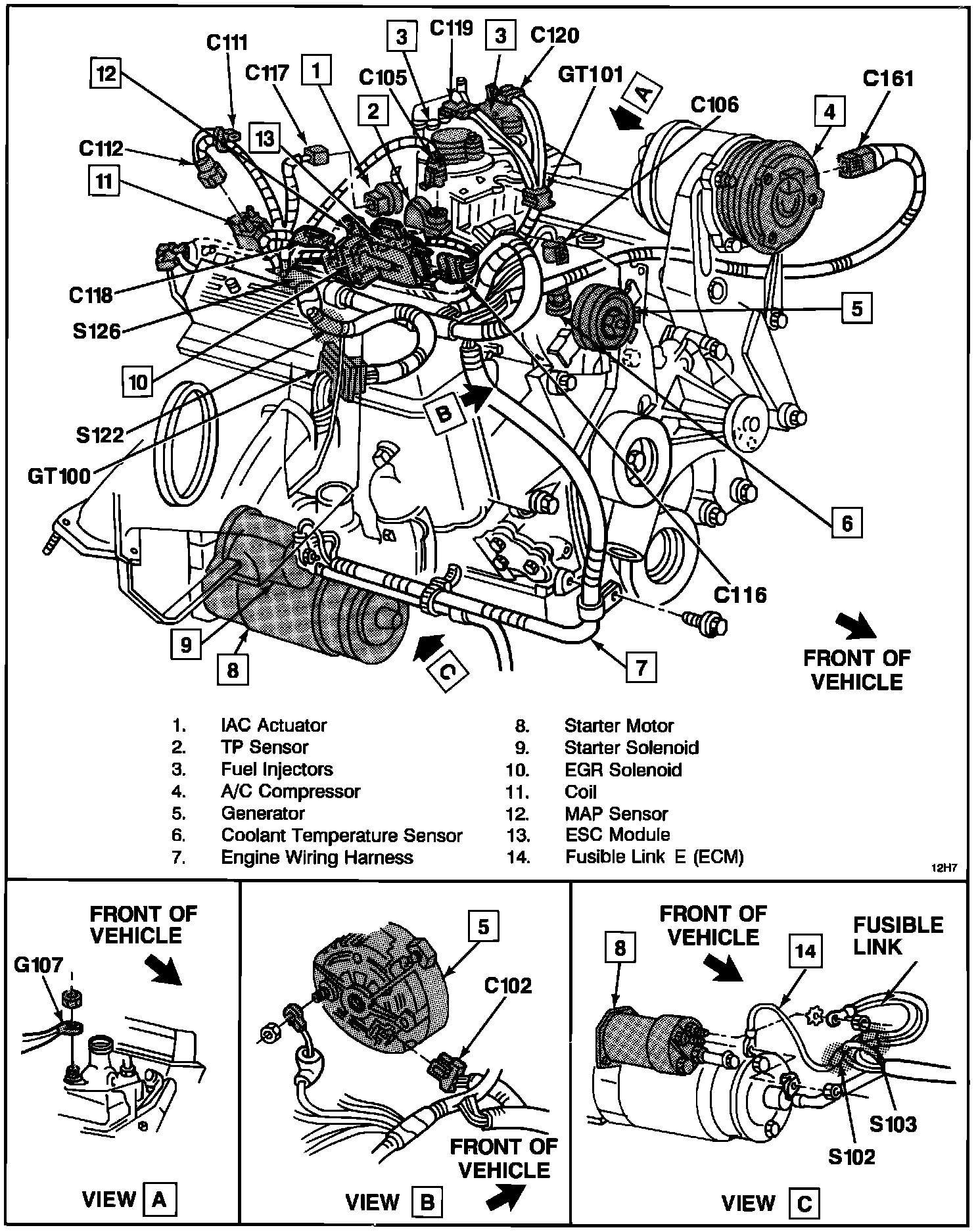

Engine Wiring, RH Side:
