Electronic/Engine Control Module (ECM)

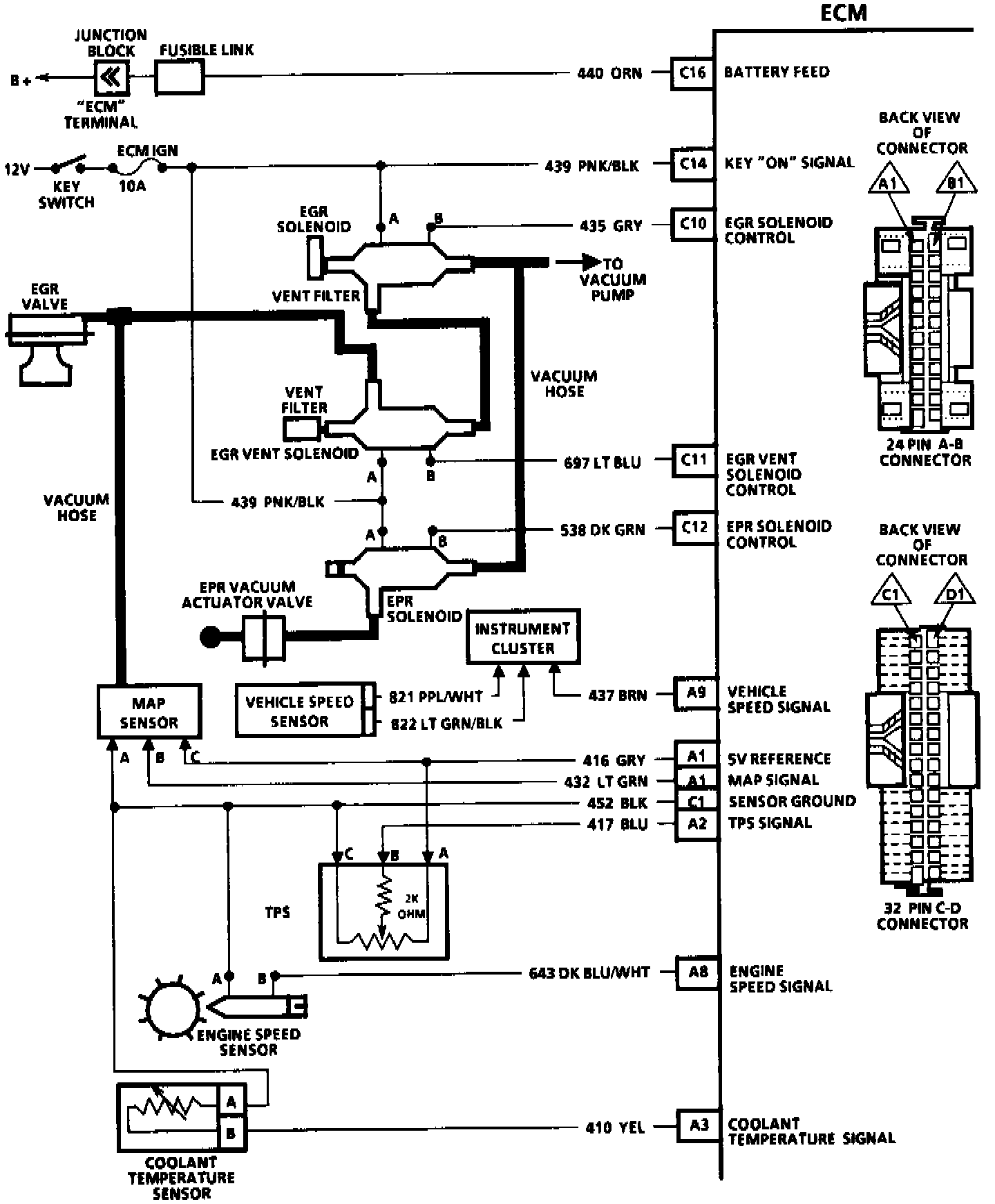

With 4L60 Automatic Transmission:

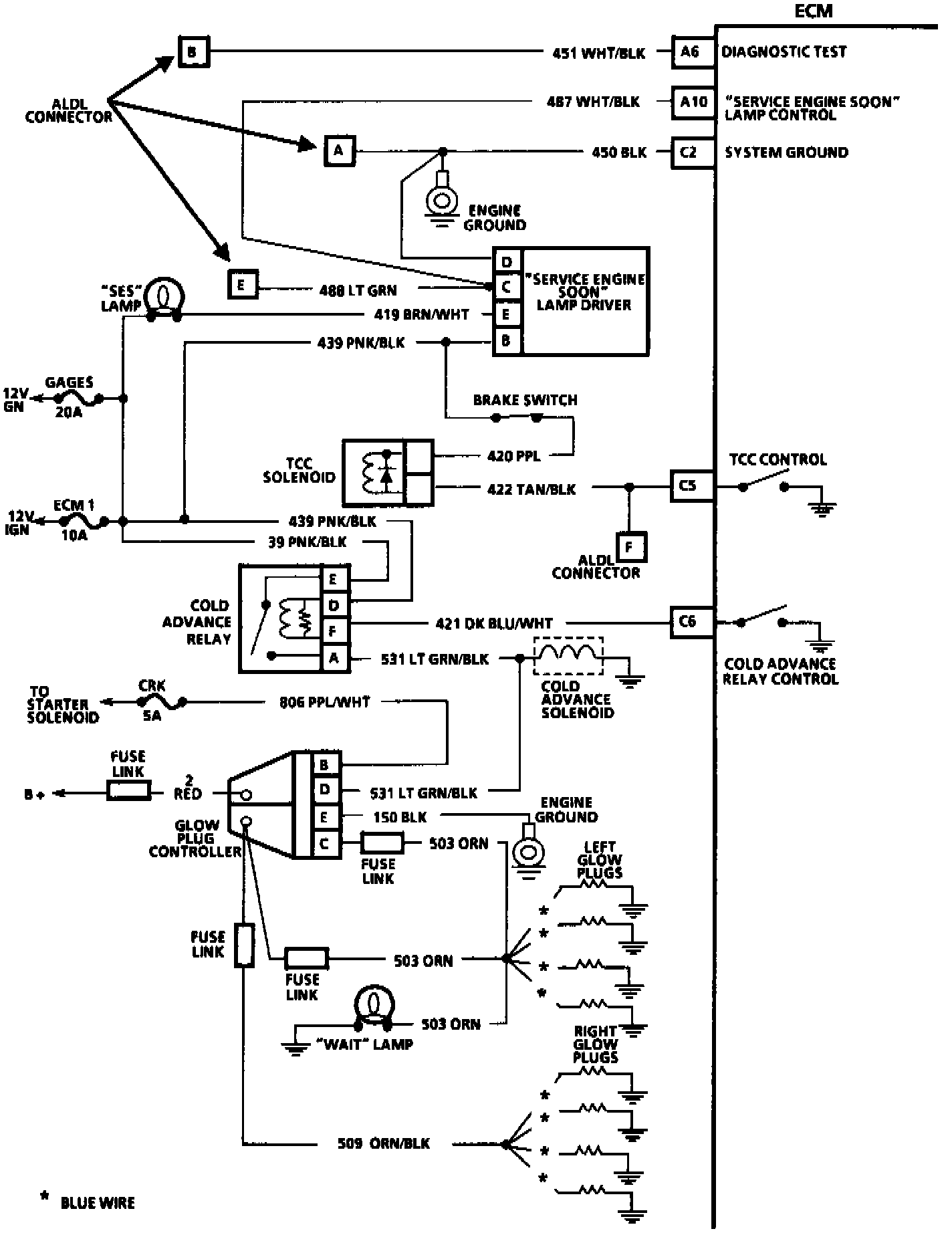

With 4L60 Automatic Transmission:
