Cruise Control Module
>>
With Automatic Transmission
With Automatic Transmission

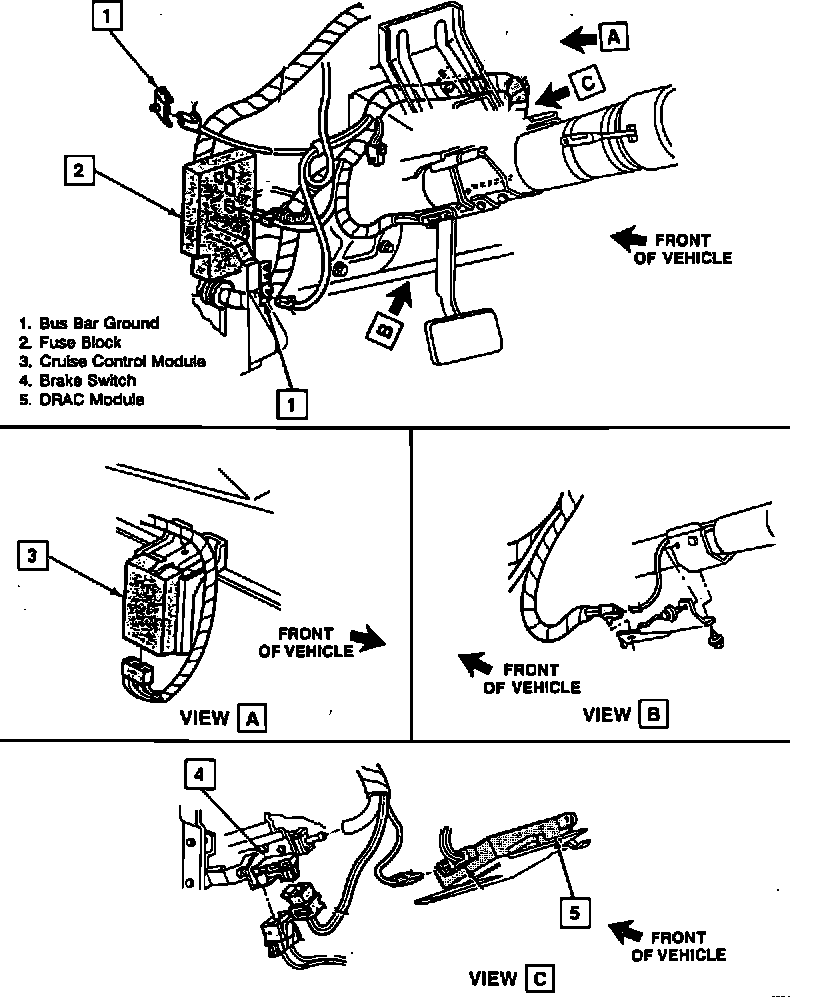

Cruise Control System Components:
Behind I/P, On LH Side Of Steering Column
Applicable to: R/V Series w/ Automatic Transmission
