Wheel Alignment Specifications

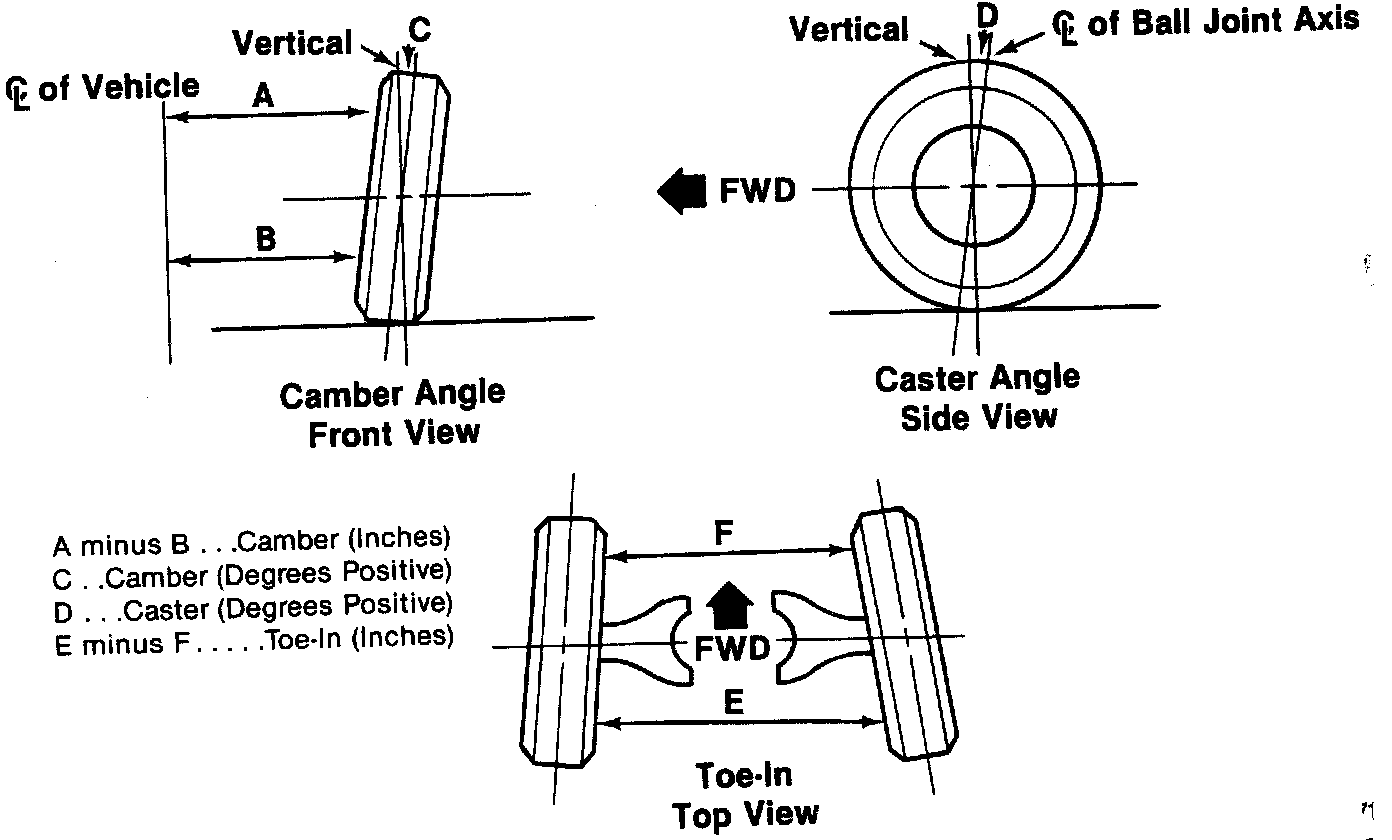

Caster,Camber and Toe Tolerances

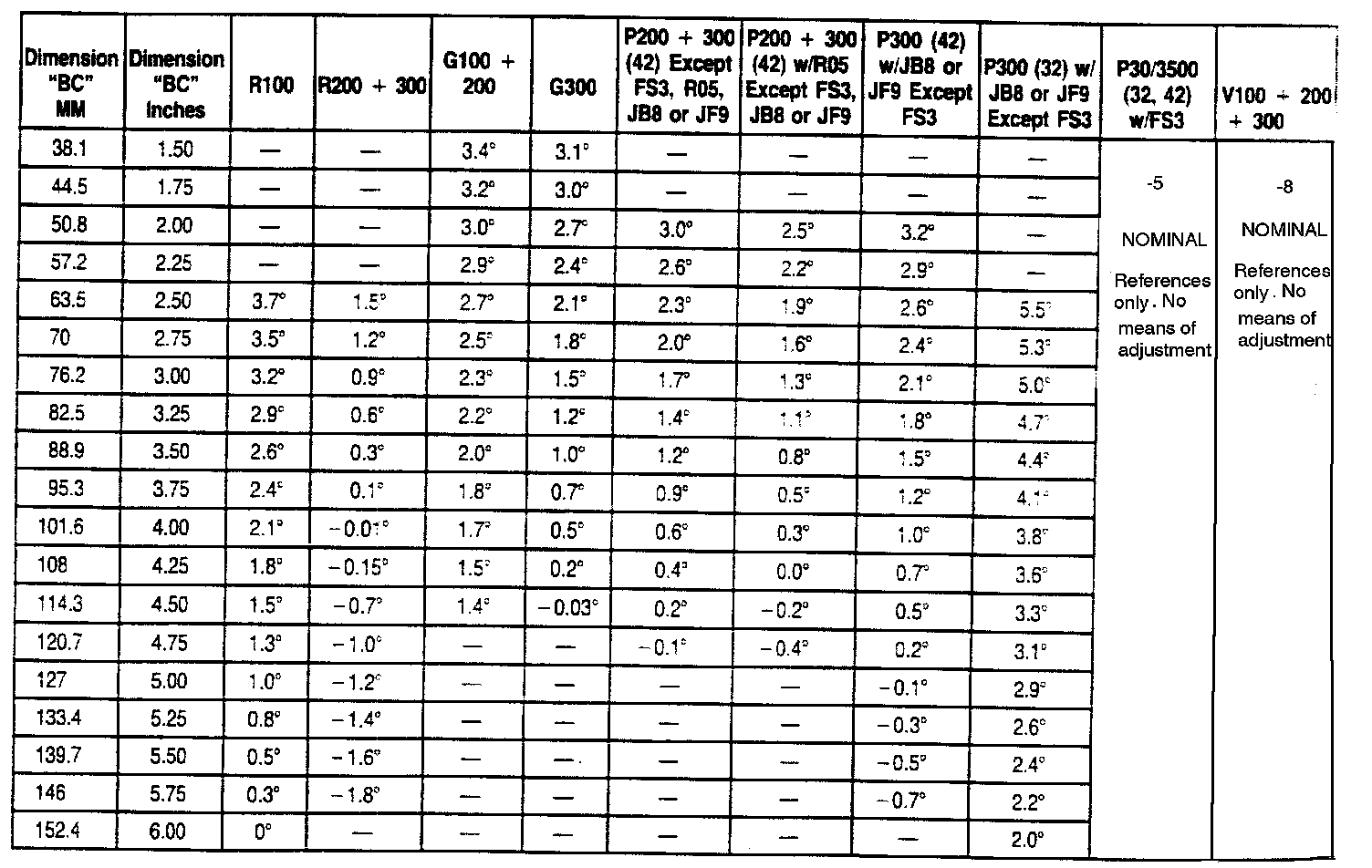

Caster Chart

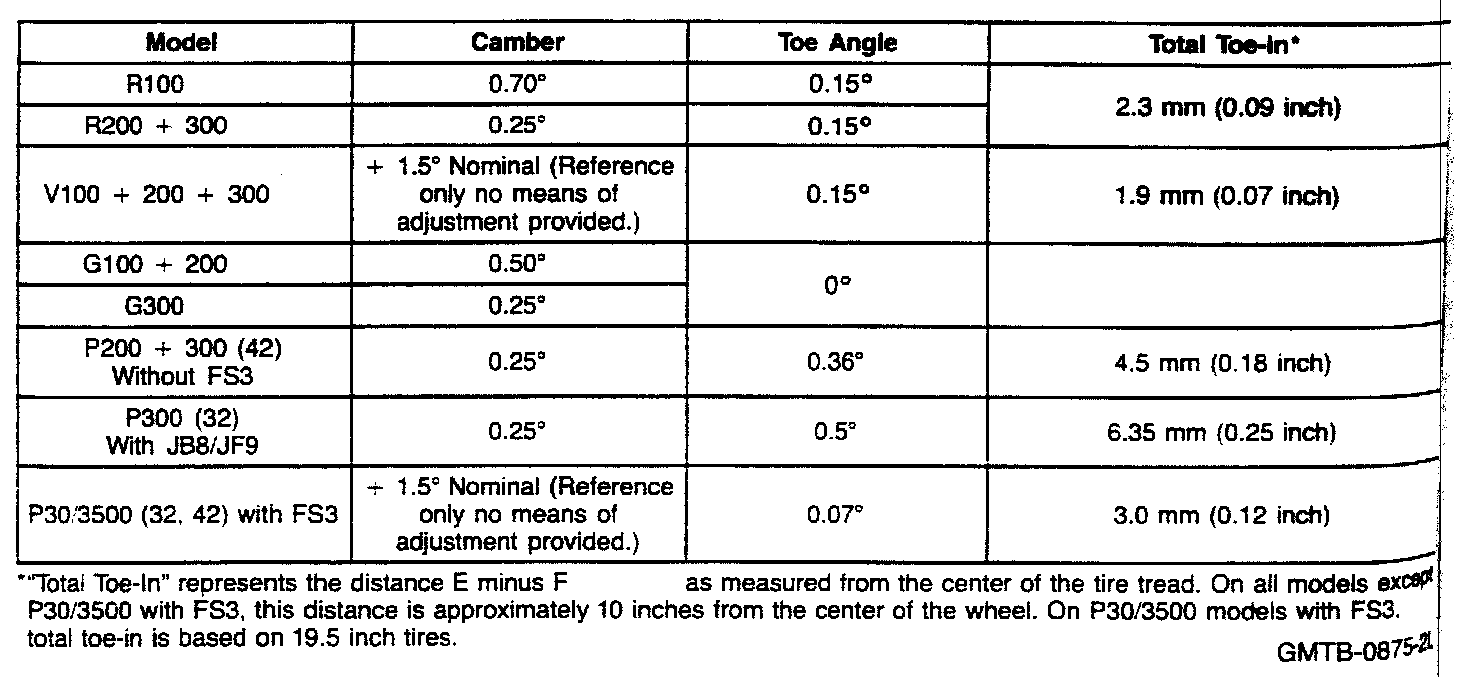

Alignment Specifications
