Swirl Valve Actuator - Removal

REMOVAL





1. Disconnect negative battery cable.
2. Remove the engine cover.
3. Drain the coolant.Service and Repair
4. Remove the strut tower support (2).
5. Remove the intake air housing and tube.Air Cleaner Body - Removal.
6. Remove the charge air cooler tube (4).
7. Remove the resonator.
8. Remove the EGR tube.

CAUTION: Observe the position of the turbocharger oil passage housing and gasket. Failure to properly position the gasket during assembly will result in immediate turbocharger failure after assembly.

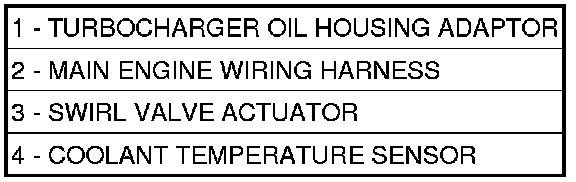

9. Remove the turbocharger (3).Turbocharger - Removal










10. Disconnect the engine harness and position aside.
11. Disconnect the swirl valve actuator connector.
12. Remove the swirl valve actuator (3) clips.
13. Remove the swirl valve actuator.
