Rear Bumper - 4-Door

Rear Bumper - 4-Door

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the rear bumper cover.
Refer to: Rear Bumper - 4-Door. Rear Bumper Cover - 4-Door

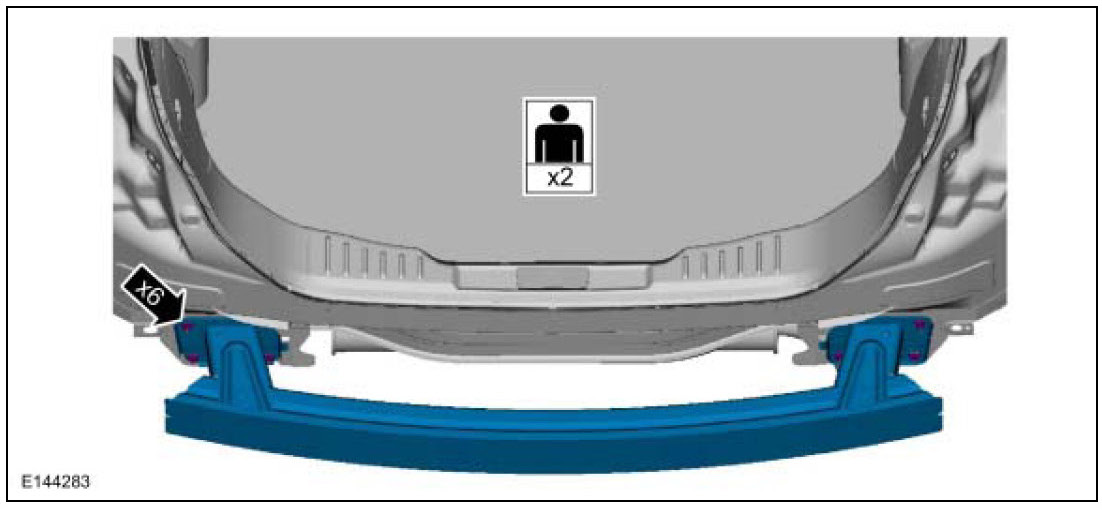

3. Torque: 25 Nm







Installation
1. To install, reverse the removal procedure.
