Front Bumper Cover - 2

Front Bumper Cover

DISASSEMBLY

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the front bumper cover.
Refer to: Front Bumper Cover. Removal and Replacement

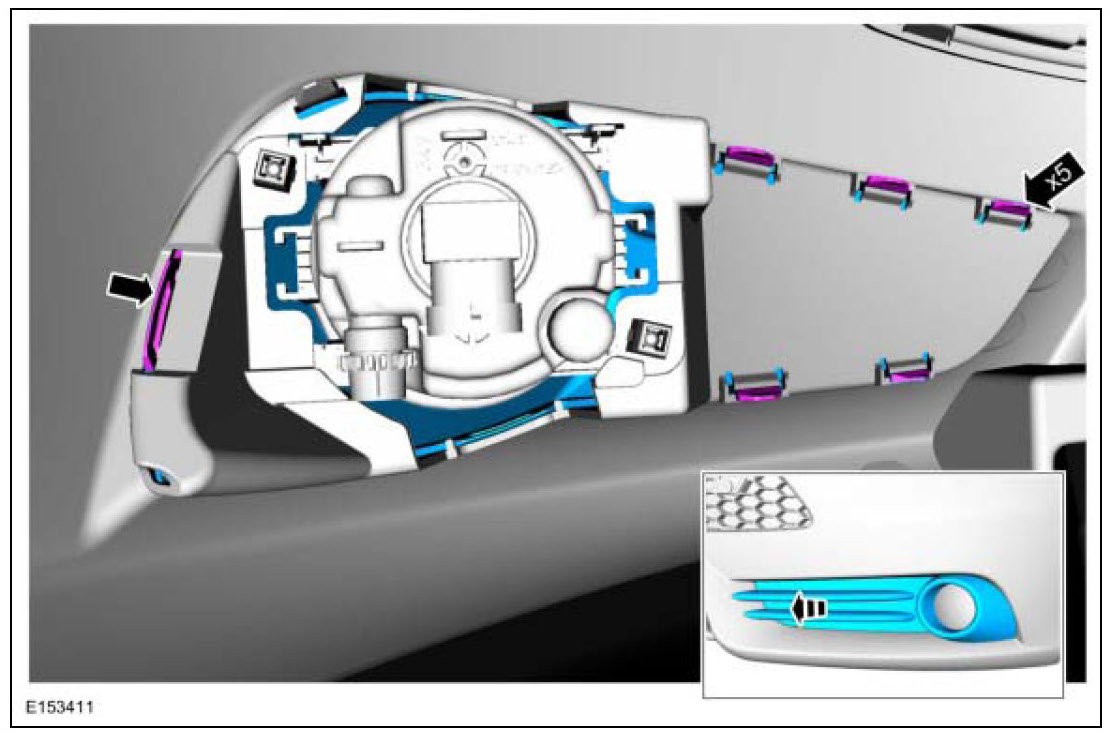

3. On both sides.

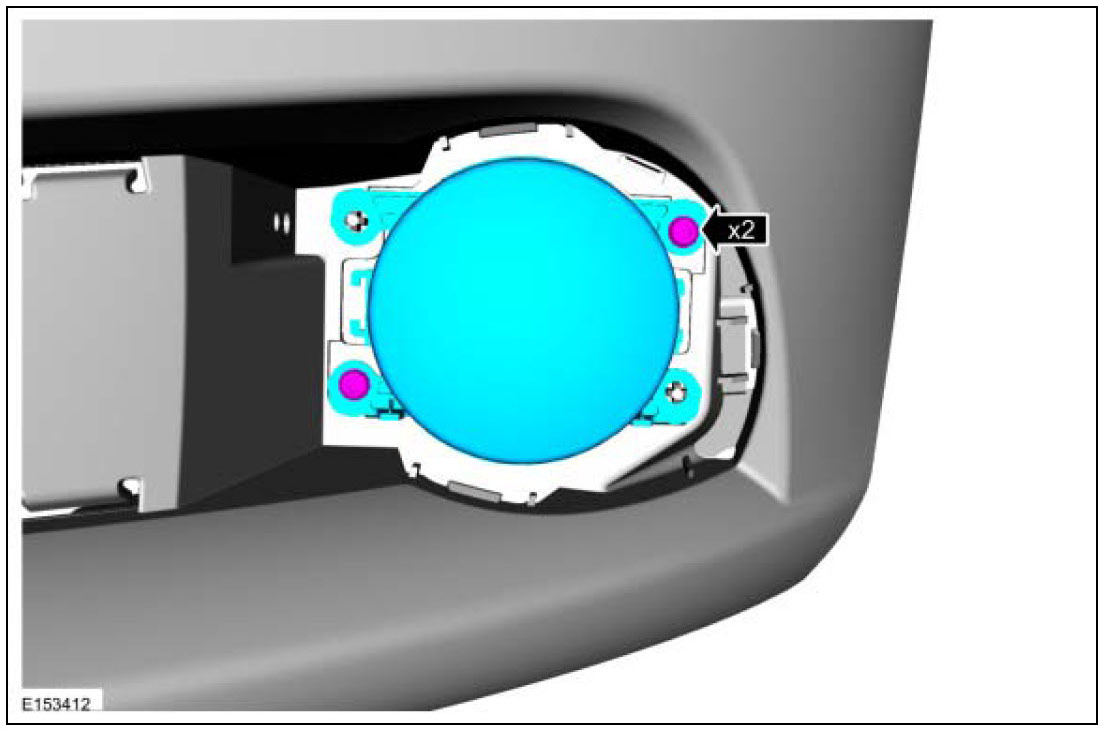

4. On both sides.

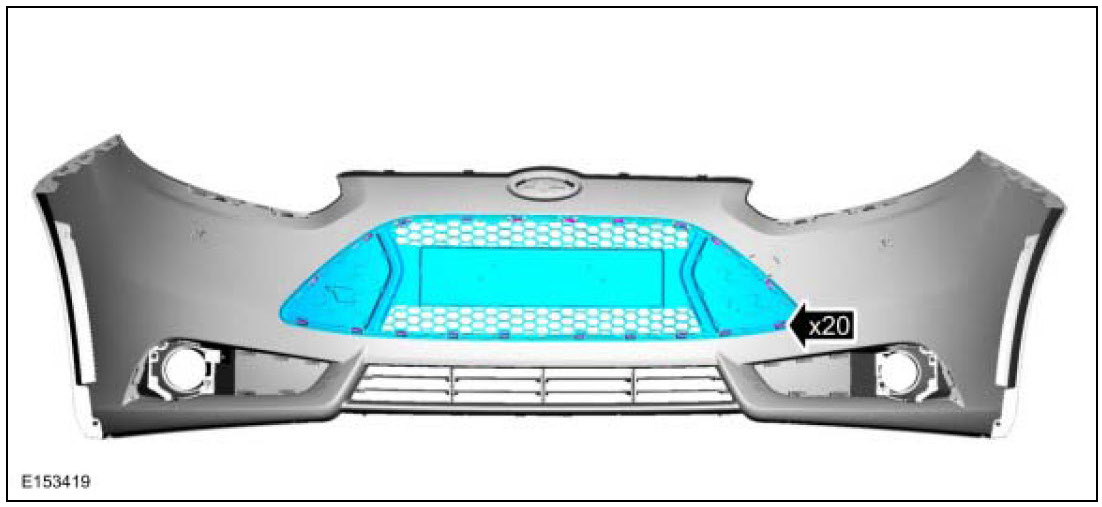

5.

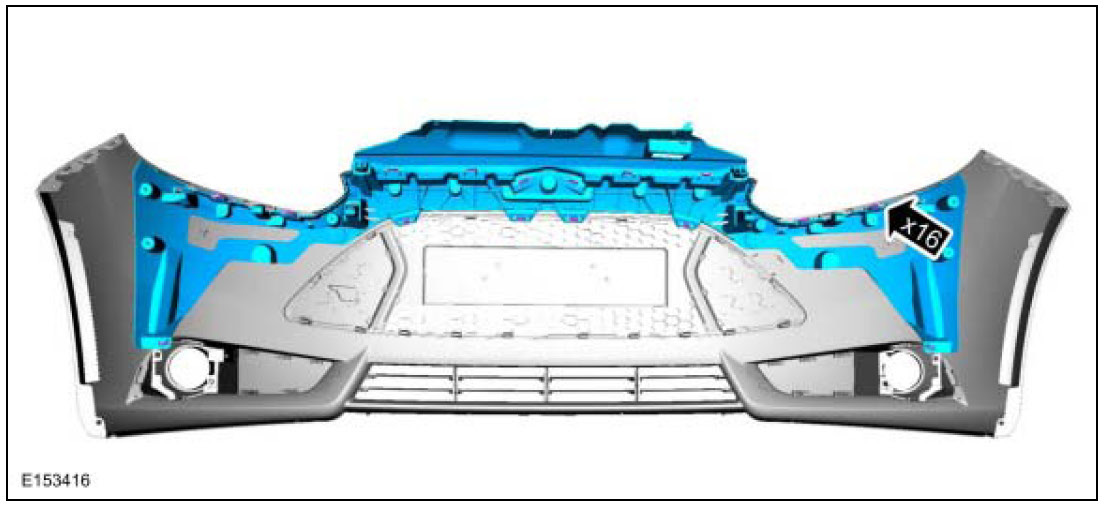

6.







ASSEMBLY
1. To assemble, reverse the disassembly procedure.
