Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Handles, Locks, Latches and Entry Systems - Without Intelligent Access (IA)
Handles, Locks, Latches and Entry Systems - Without Intelligent Access (IA)
Handles, Locks, Latches and Entry Systems - Without Intelligent Access (IA)

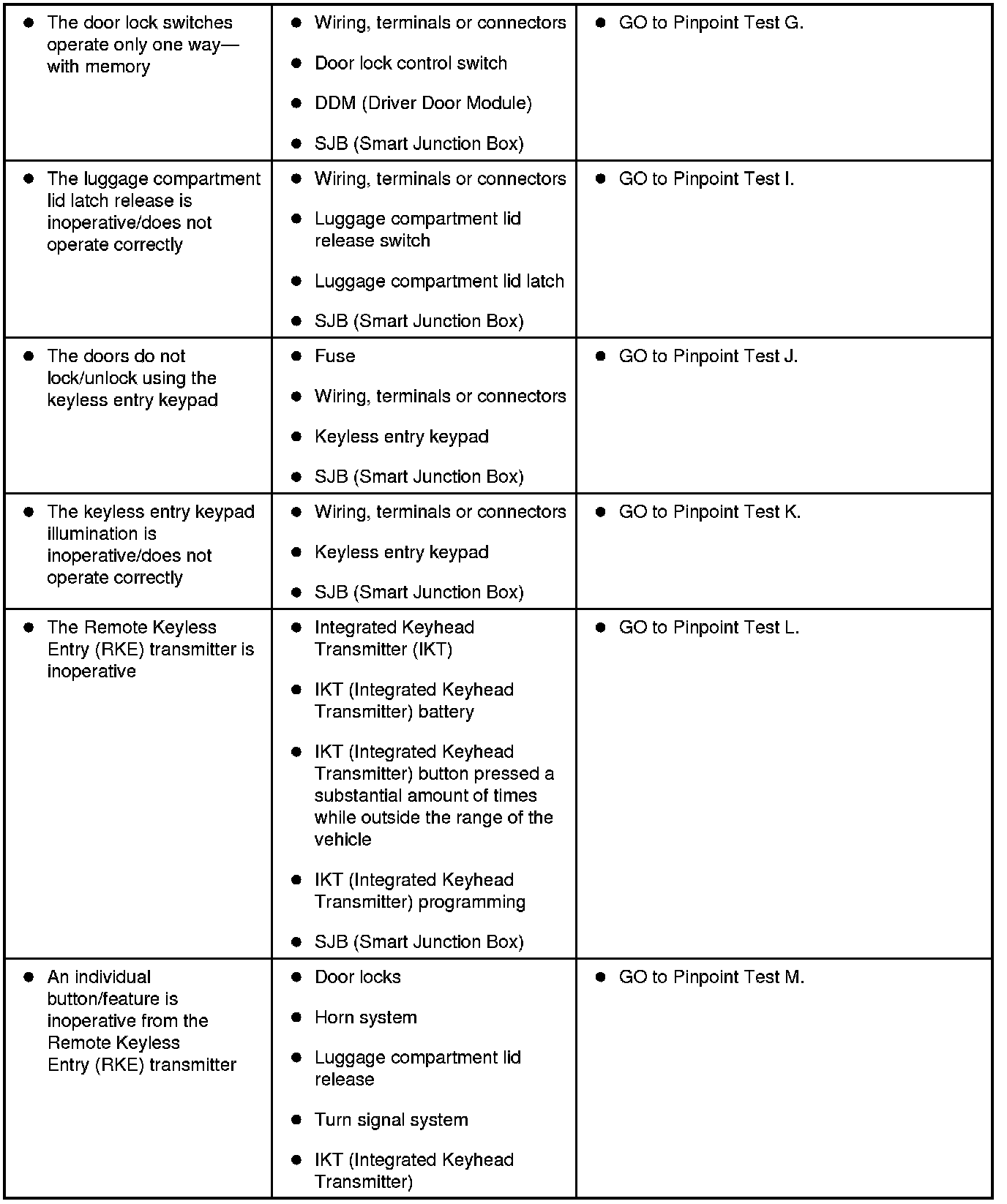

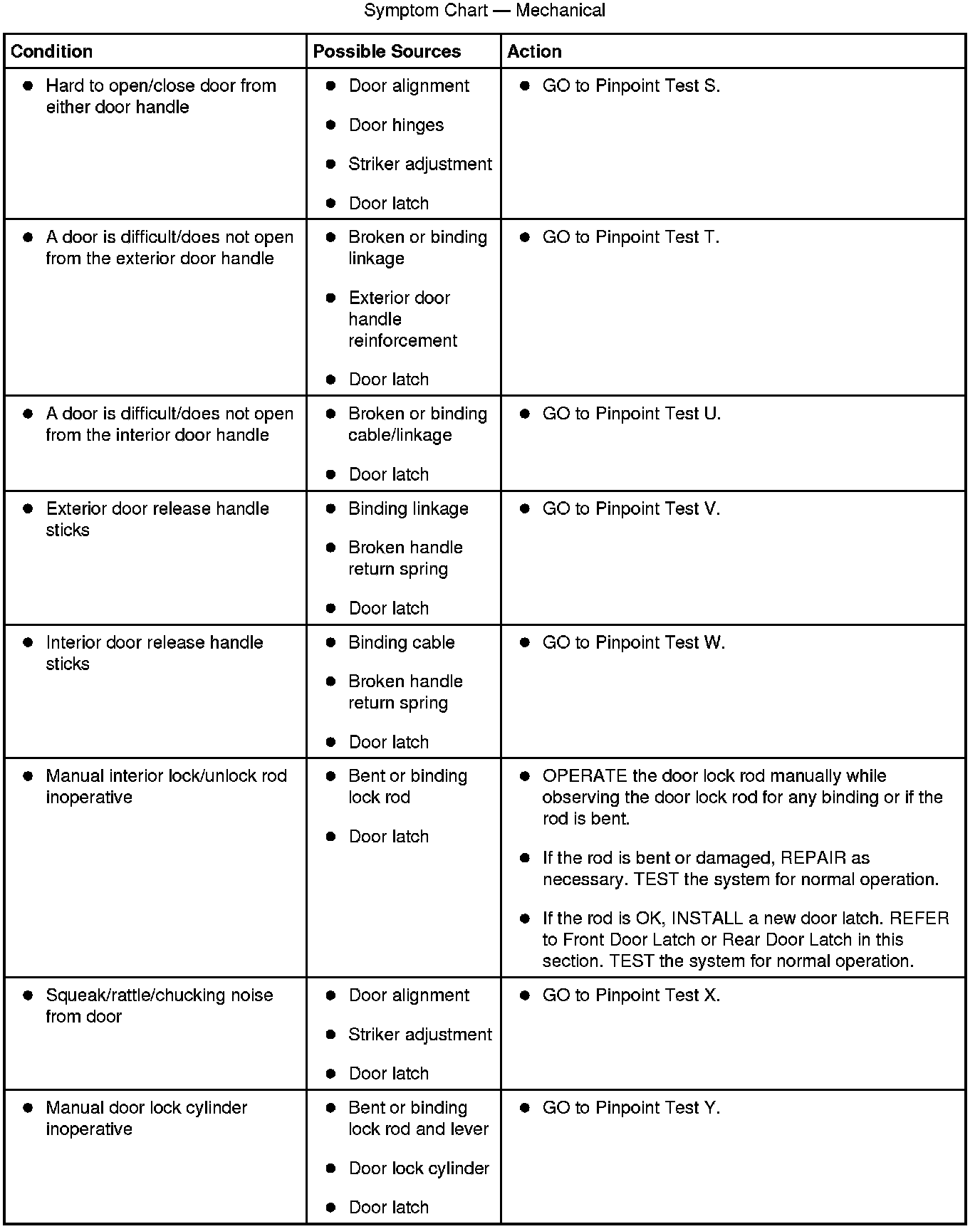

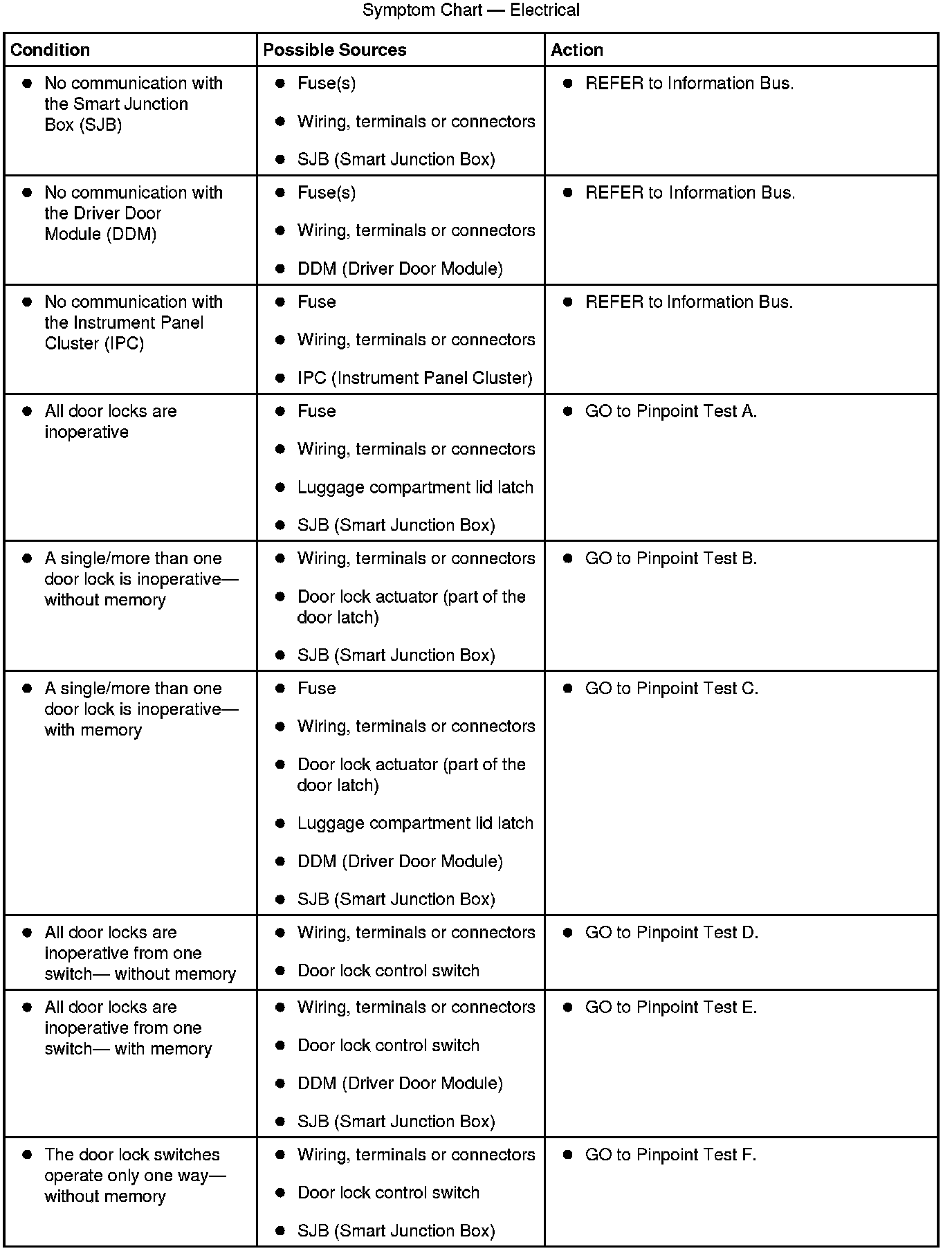

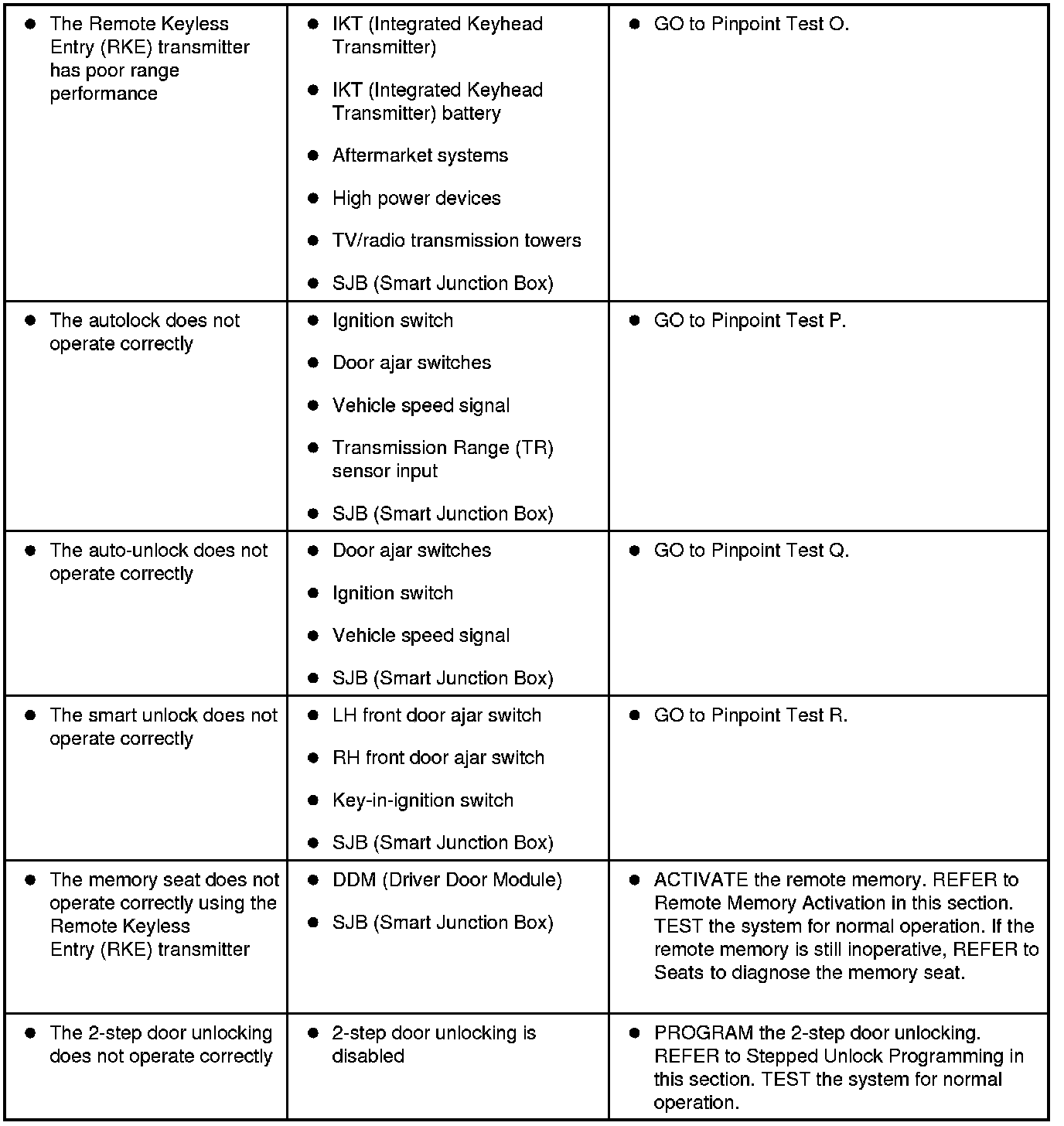

Symptom Chart
