A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
Anti-Lock Control
DTC Charts

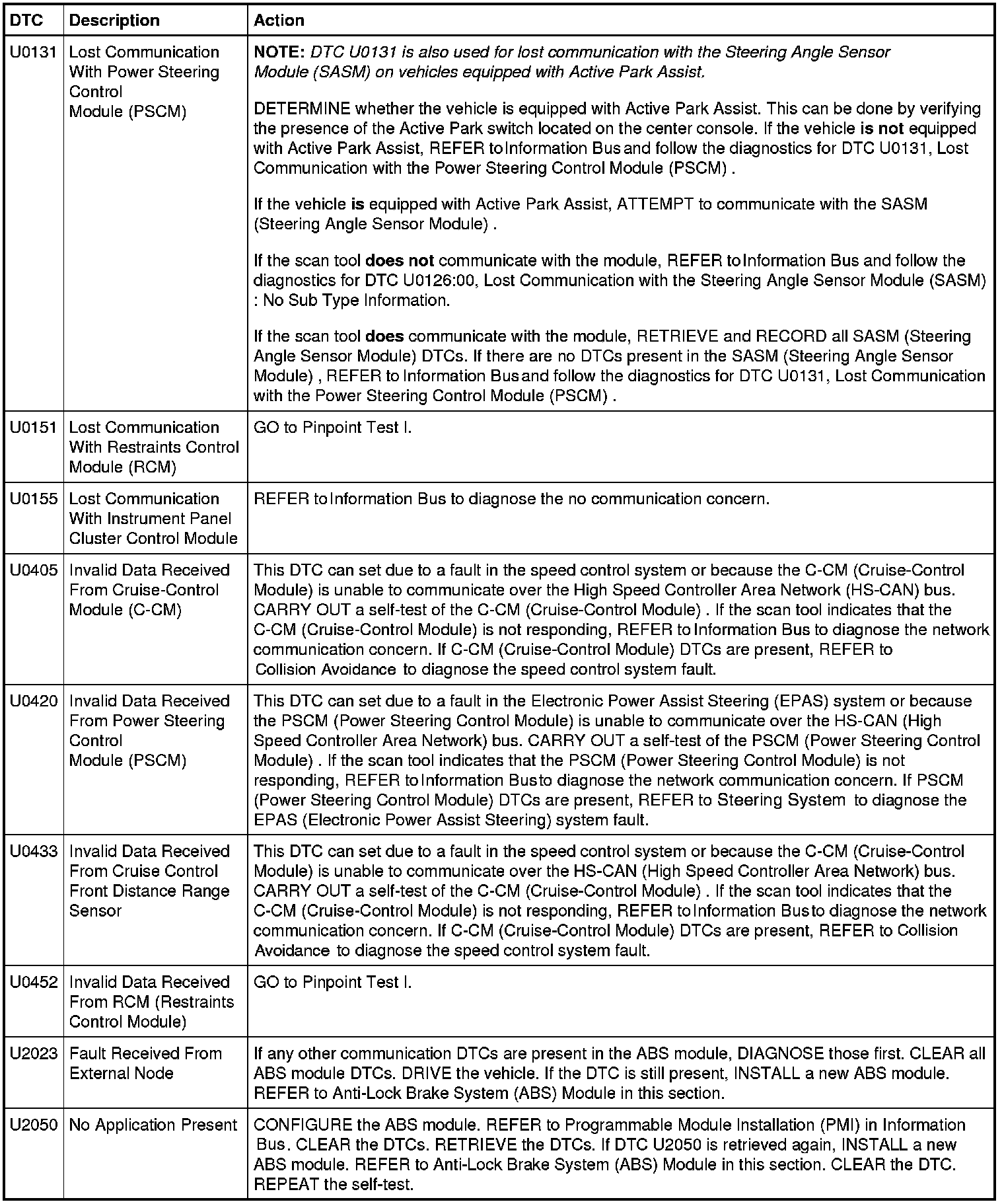

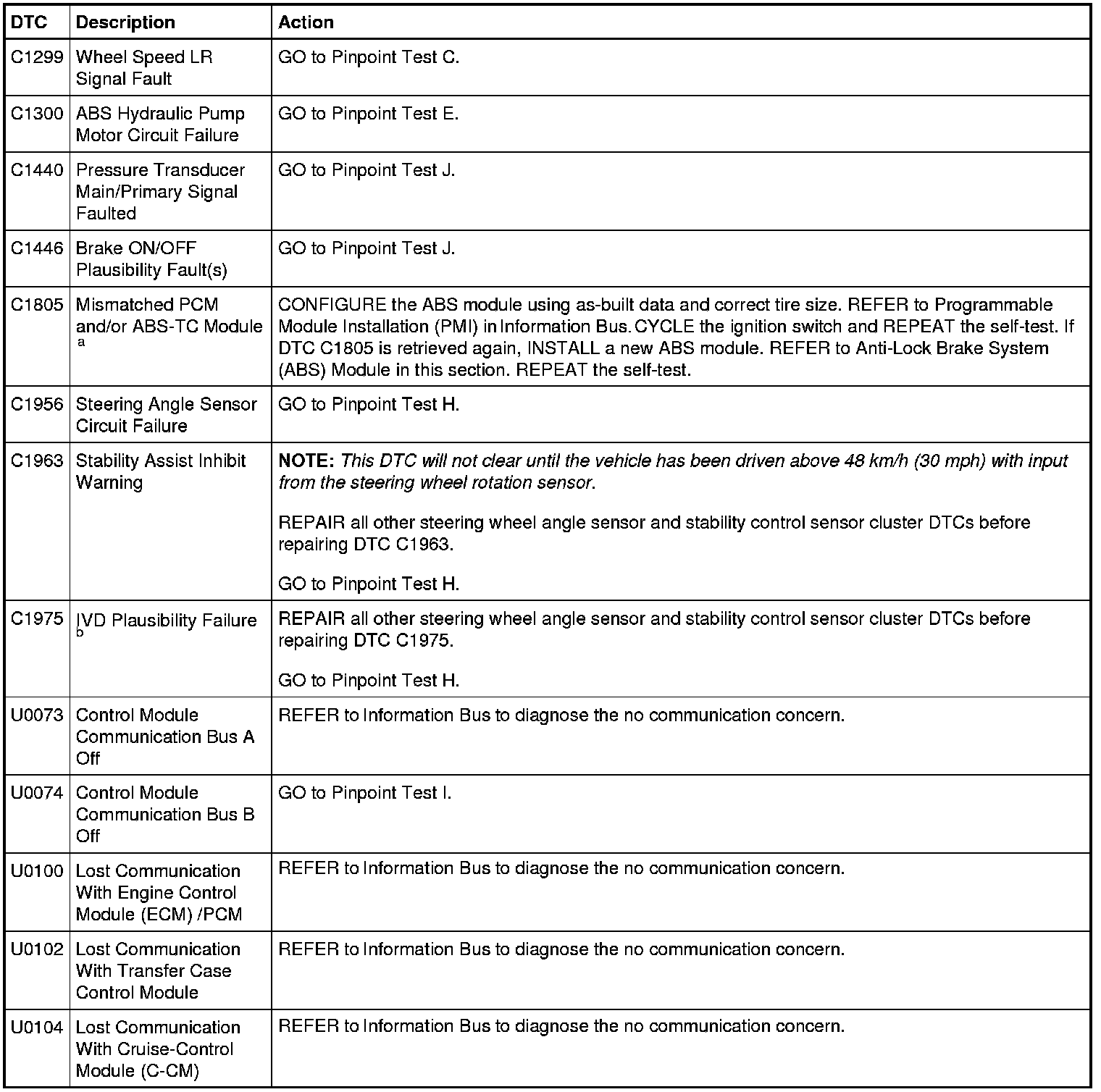

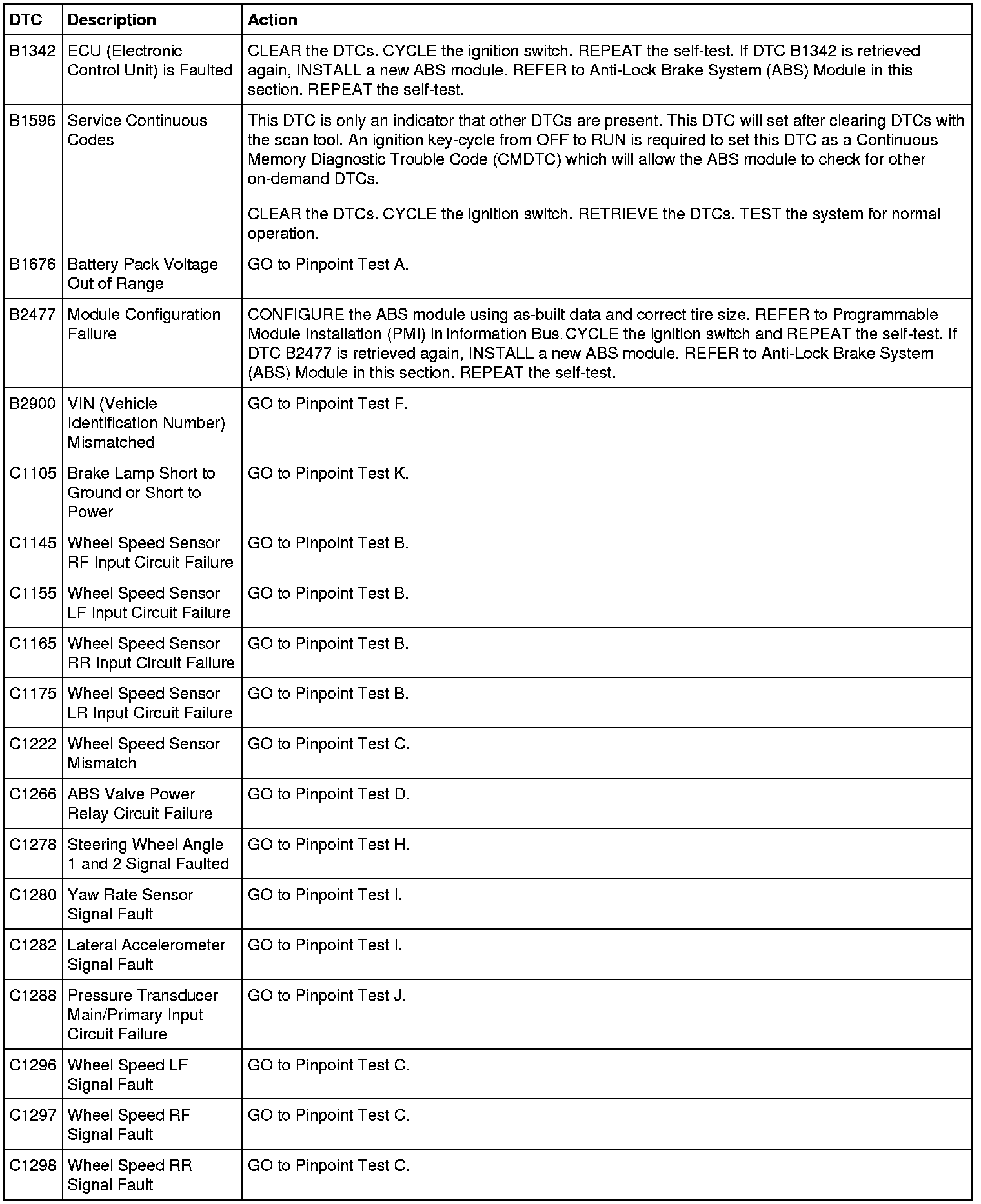

ABS Module DTC Chart
a Traction Control
b Interactive Vehicle Dynamics

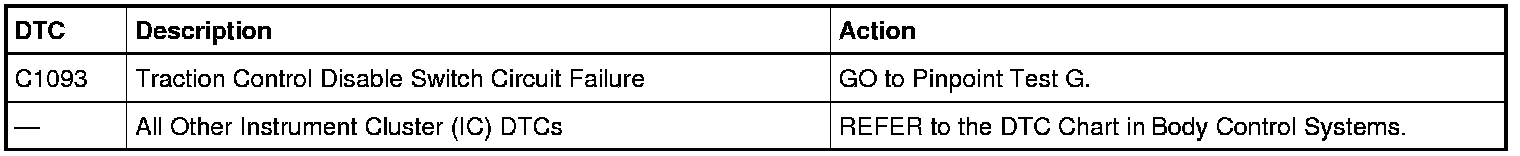

Instrument Cluster (IC) DTC Chart
