Home >> Ford >> 2012 >> Mustang V8-5.4L SC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Transaxle/Transmission - 6R80 >> Diagnostic Routines >> Torque Converter Operation Concerns 240 - 242 >> 242, Always Applied/Stalls Vehicle

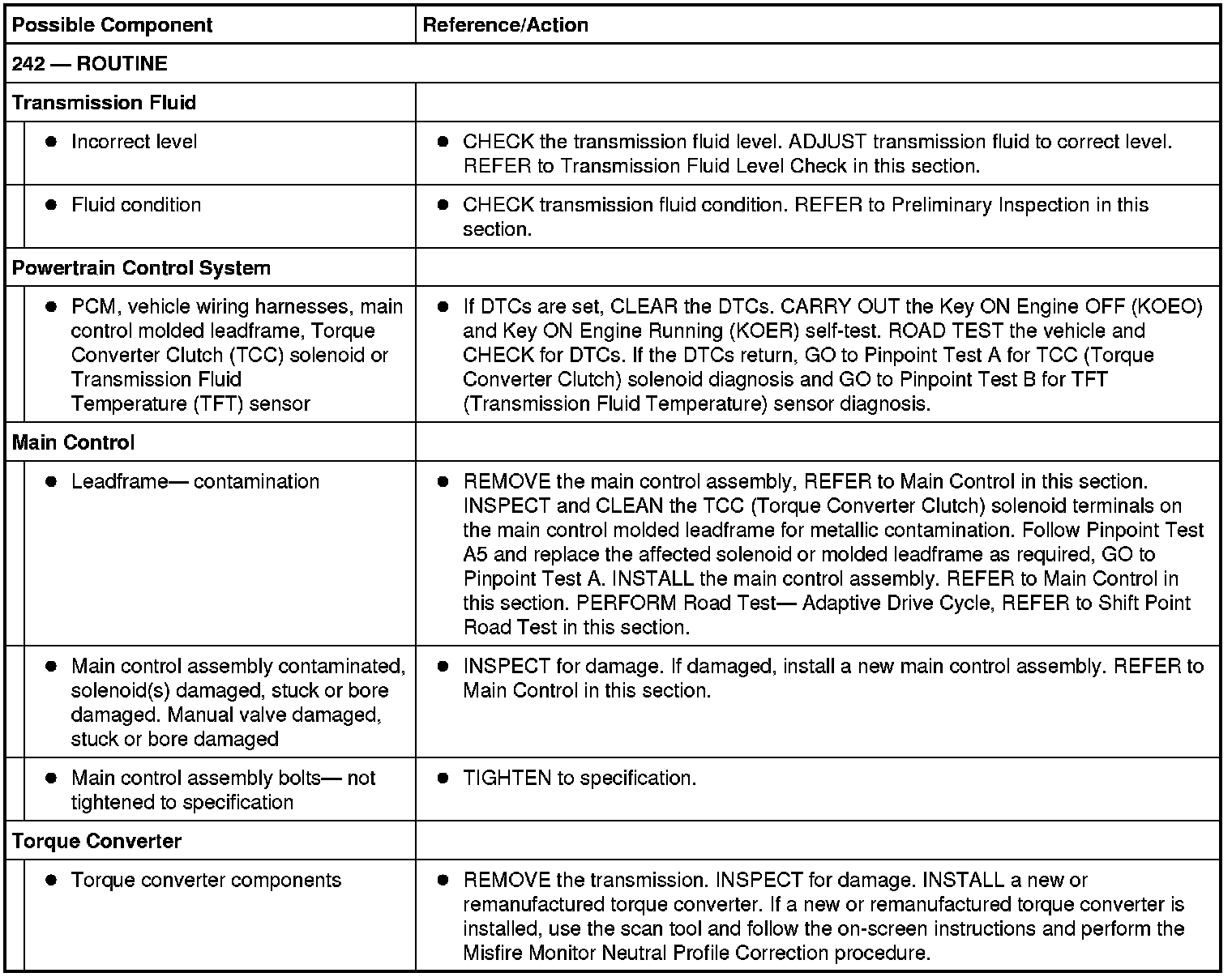

242, Always Applied/Stalls Vehicle




Diagnostic Routines

Torque Converter Operation Concerns: Always Applied/Stalls Vehicle
