208, Harsh Forward and Harsh Reverse

Diagnostic Routines

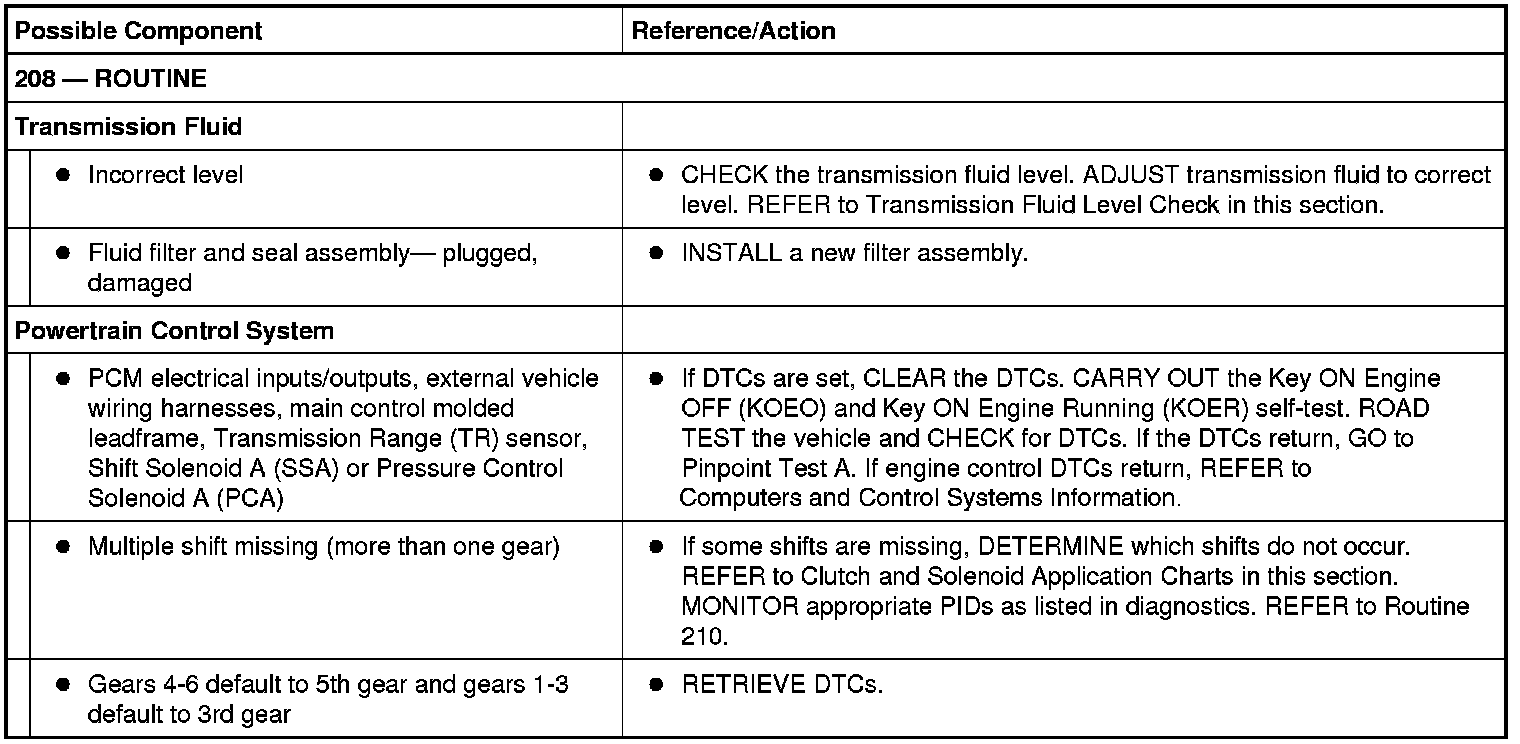

Engagement Concerns: Harsh Forward and Harsh Reverse
