A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Exterior Lighting
>>

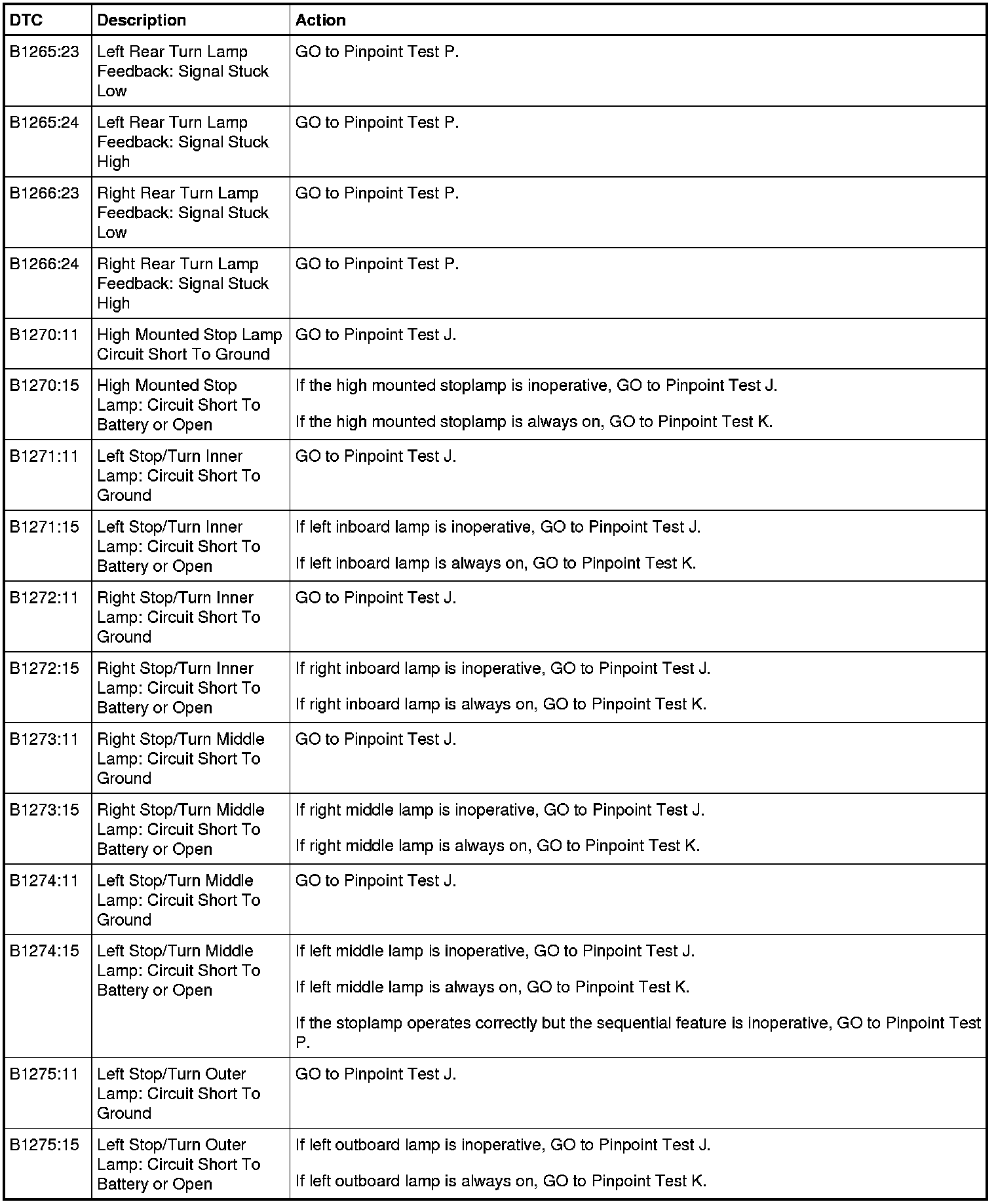

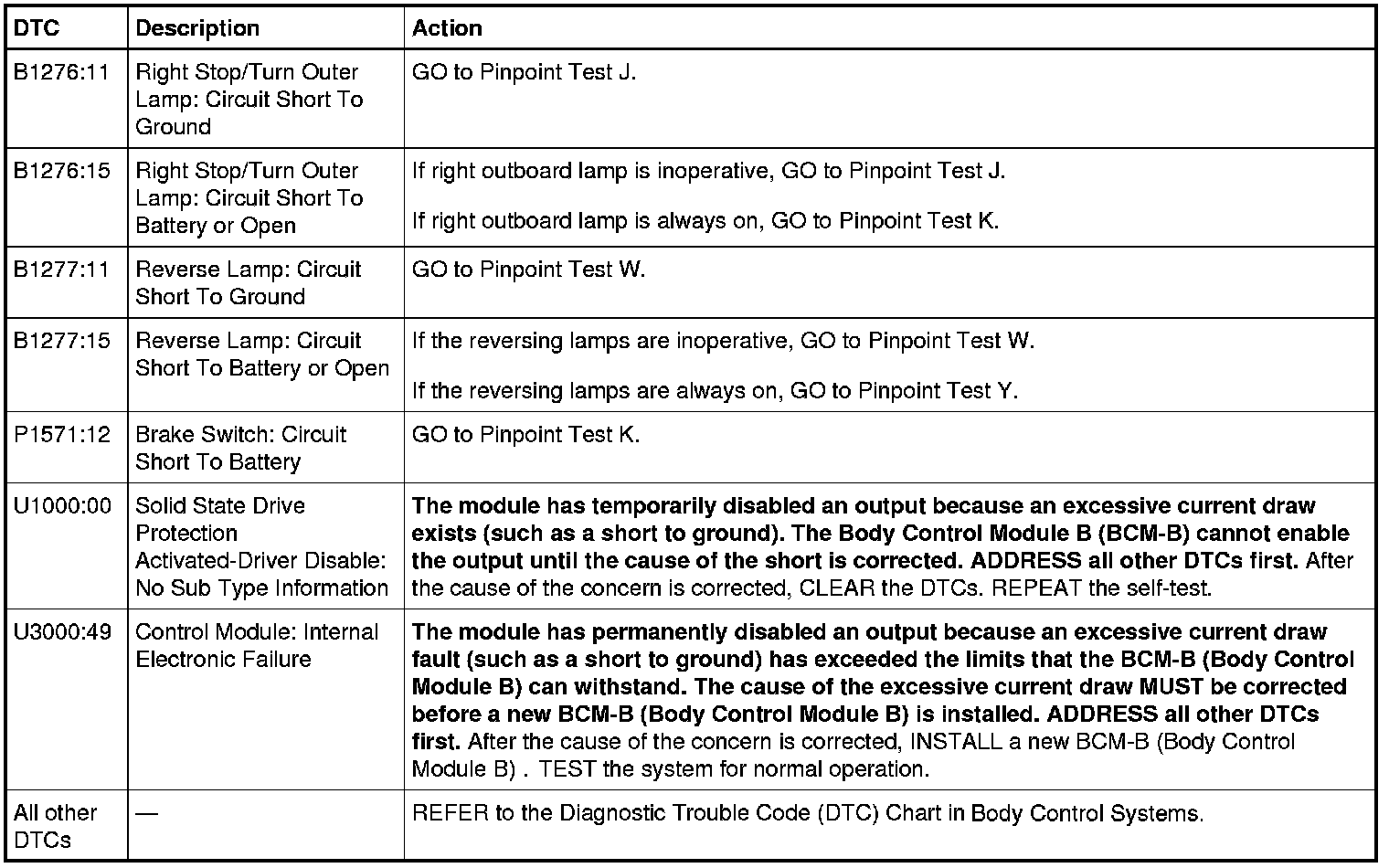

Body Control Module B (BCM-B) DTC Chart
Body Control Module B (BCM-B) DTC Chart
Diagnostic Trouble Code (DTC) Chart
Body Control Module B (BCM-B) DTC Chart
