Wiper Motor - Windshield

Wiper Motor - Windshield

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

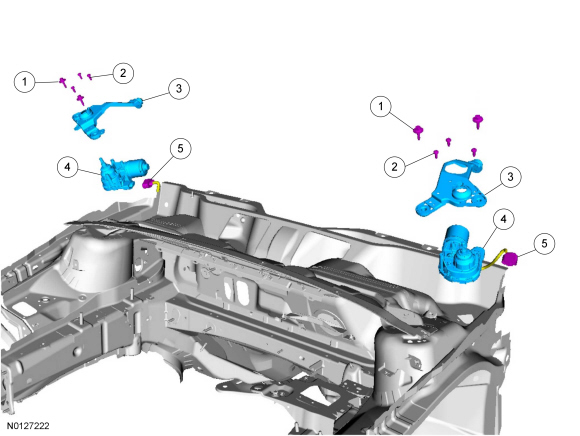

Exploded View









Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the cowl panel grille. REFER to Cowl Panel Grille .

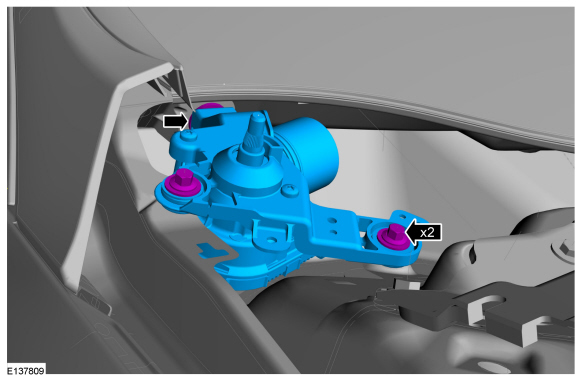

2.





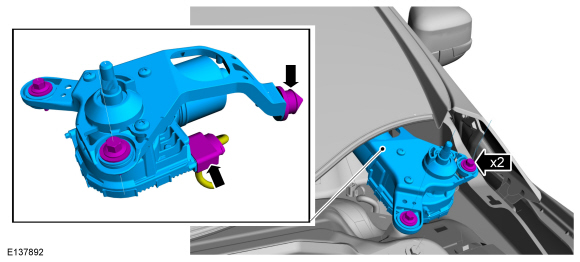

3.
- 7 Nm (62 lb-in).





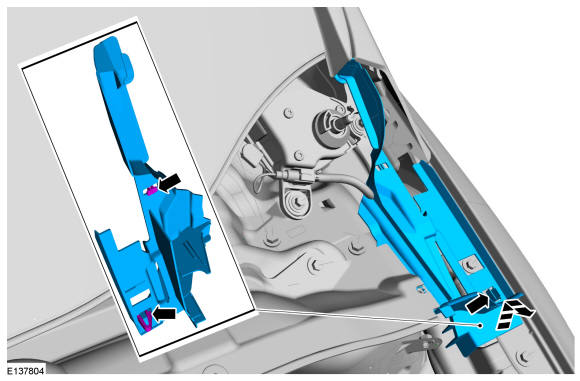

4.
- 9 Nm (80 lb-in).





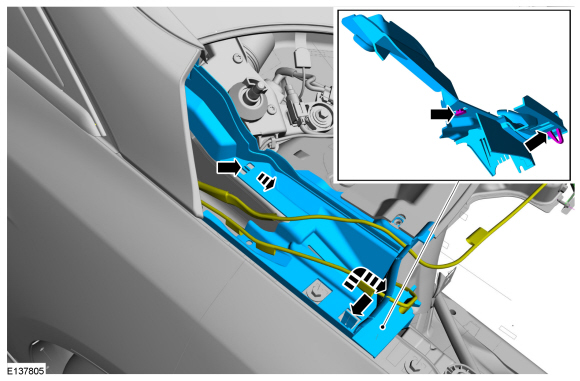

5.





6.





7.
- 7 Nm (62 lb-in).





8.
- 9 Nm (80 lb-in).





Installation

1. To install, reverse the removal procedure.

2. Initialize the wiper motors. REFER to Windshield Wiper Motor Initialization Testing and Inspection.
