U0140:00

Normal Operation and Fault Conditions

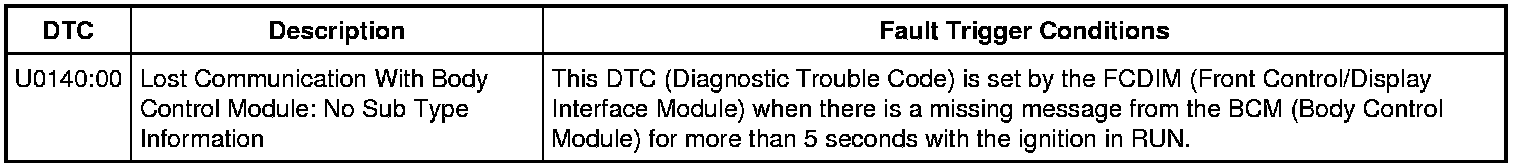

DTC Fault Trigger Conditions






Pinpoint Test

1. VERIFY THE CUSTOMER CONCERN

1. Ignition ON.

2. Verify there is an observable symptom present.

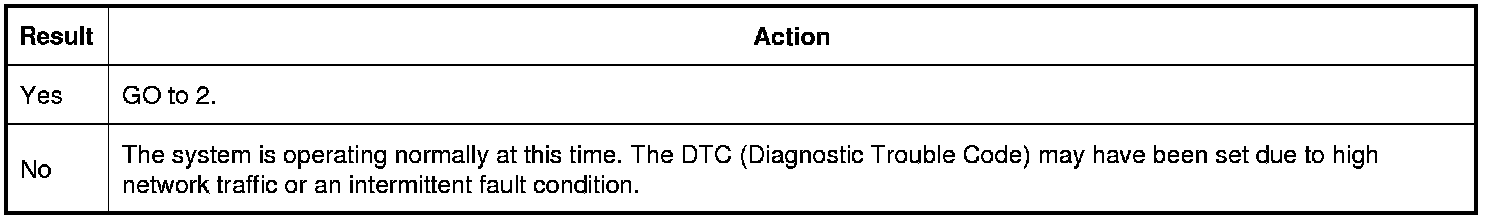

Is an observable symptom present?






2. CHECK FOR LOST COMMUNICATION DTCs (Diagnostic Trouble Codes)

1. Ignition ON.

2. Using a scan tool, clear continuous DTCs (Diagnostic Trouble Codes) from all modules.

3. Ignition OFF.

4. Ignition ON.

5. Wait at least 10 seconds.

6. Using a scan tool, retrieve all continuous DTCs (Diagnostic Trouble Codes) from all modules.

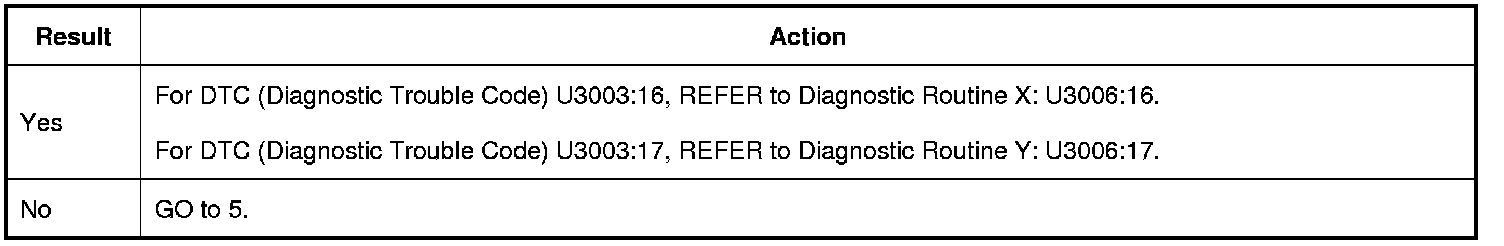

Is DTC (Diagnostic Trouble Code) U0140:00 set in any audio system module?






3. CHECK THE BCM (Body Control Module) FOR BATTERY VOLTAGE OUT-OF-RANGE DTCs (Diagnostic Trouble Codes)

1. Using a scan tool, perform the BCM (Body Control Module) self-test.

Are any low or high voltage DTCs (Diagnostic Trouble Codes) recorded in the BCM (Body Control Module)?






4. CHECK THE FCDIM (Front Control/Display Interface Module) FOR BATTERY VOLTAGE OUT-OF-RANGE DTCs (Diagnostic Trouble Codes)

1. Using a scan tool, perform the FCDIM (Front Control/Display Interface Module) self-test.

Are any low or high voltage DTCs (Diagnostic Trouble Codes) recorded in in the FCDIM (Front Control/Display Interface Module)?






5. CHECK FOR DTC (Diagnostic Trouble Code) U0140:00 SET IN MULTIPLE MODULES

1. Review the recorded results from the self-test.

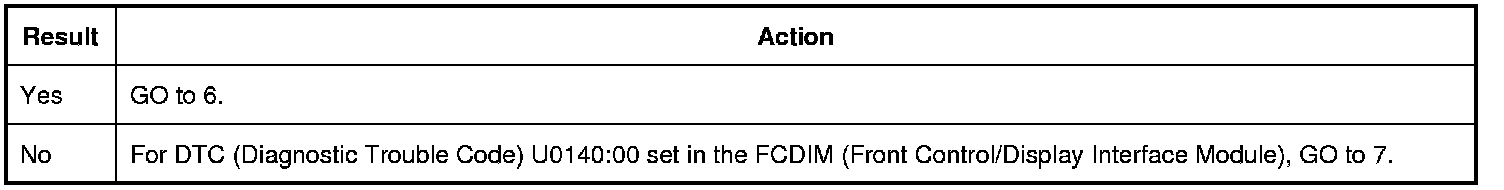

Is DTC (Diagnostic Trouble Code) U0140:00 set in more than one module?






6. CHECK FOR CORRECT BCM (Body Control Module) OPERATION

1. Disconnect and inspect all the BCM (Body Control Module) connectors.

2. Repair:

- corrosion (install new connector or terminals- clean module pins)
- damaged pins - install new terminals/pins
- pushed-out pins - install new pins as necessary

3. Reconnect the BCM (Body Control Module) connectors. Make sure they seat and latch correctly.

4. Operate the system and determine if the concern is still present.

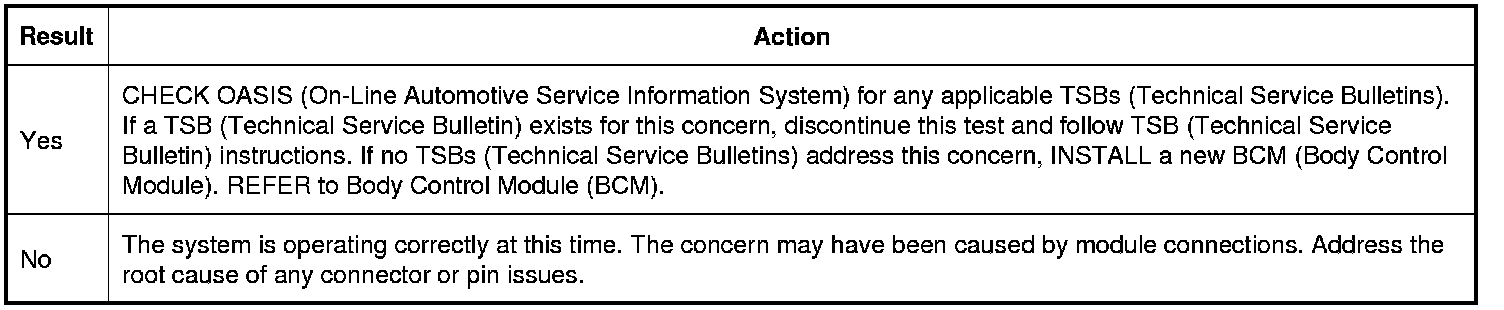

Is the concern still present?






7. CHECK FOR CORRECT FCDIM (Front Control/Display Interface Module) OPERATION

1. Ignition OFF.

2. Disconnect and inspect the FCDIM (Front Control/Display Interface Module) connector.

3. Repair:

- corrosion (install new connectors or terminals - clean module pins)
- damaged or bent pins - install new terminals pins
- pushed-out pins - install new pins as necessary

4. Reconnect the FCDIM (Front Control/Display Interface Module) connector. Make sure it seats and latches correctly.

5. Operate the system and determine if the concern is still present.

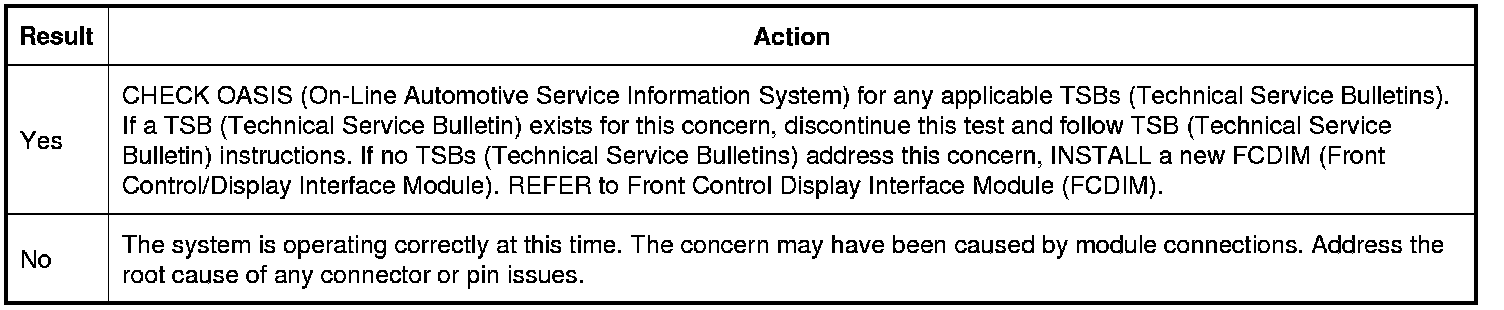

Is the concern still present?
