Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Instrumentation, Message Center and Warning Chimes
>>

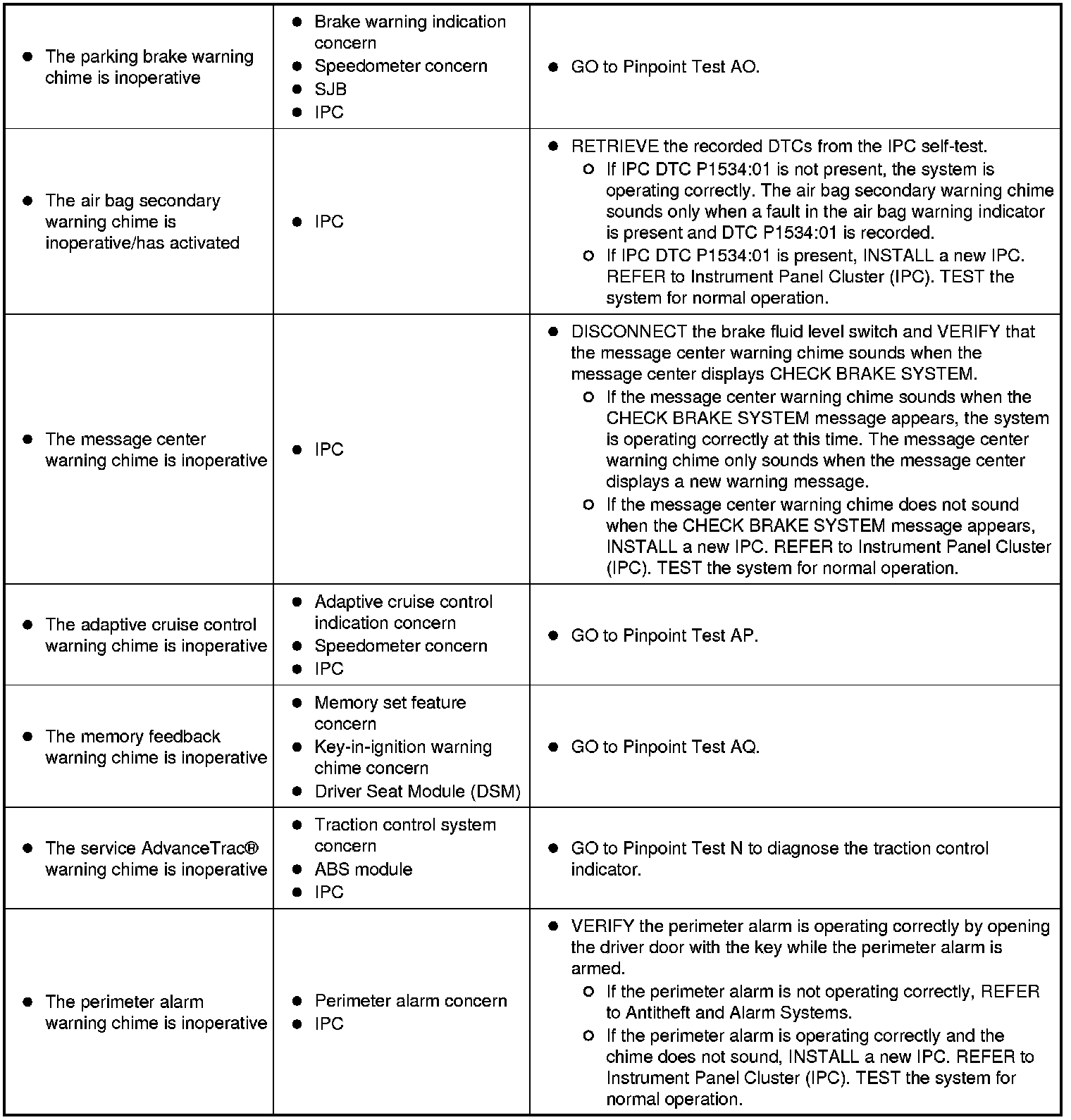

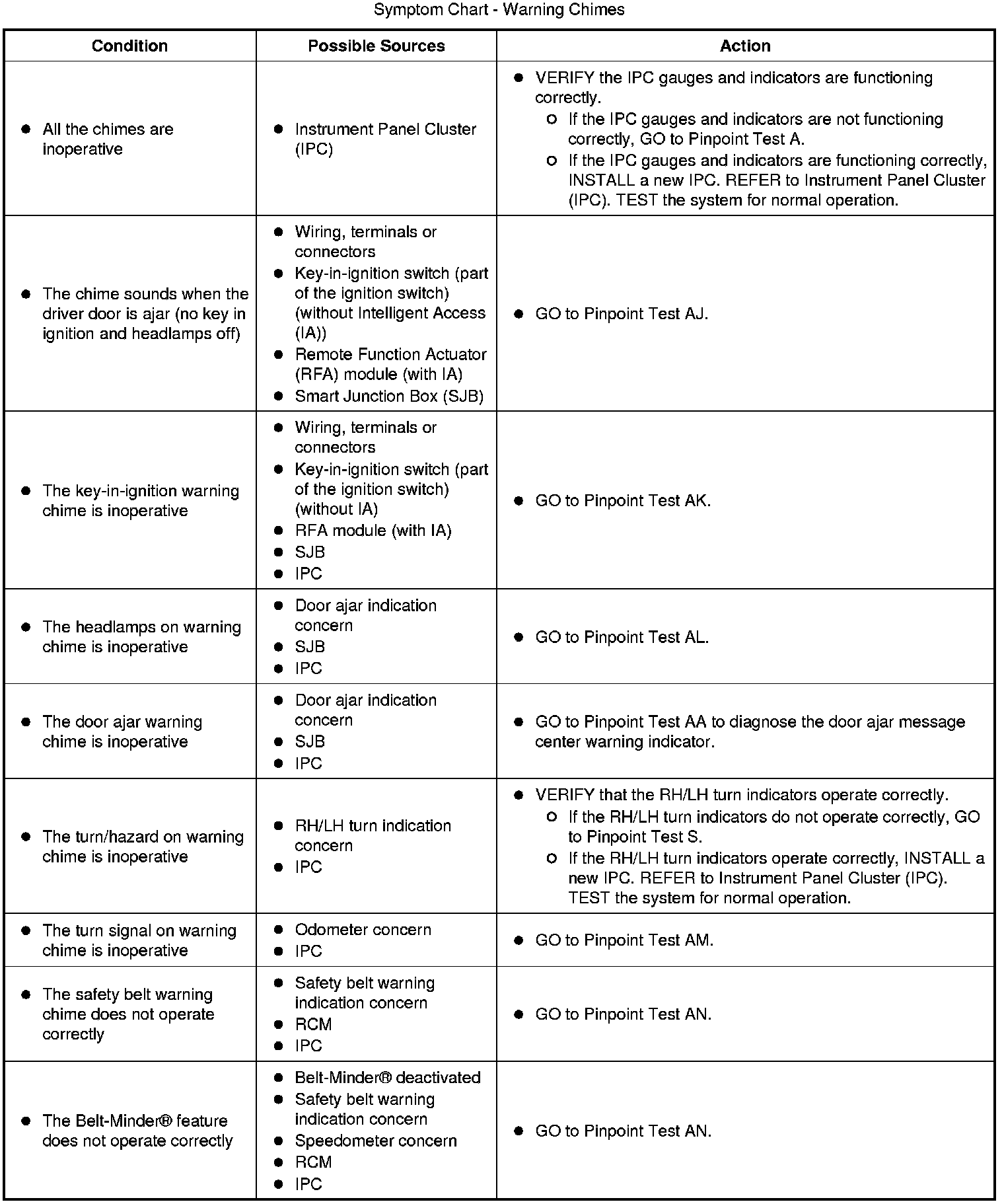

Symptom Chart - Warning Chimes
Symptom Chart - Warning Chimes
Instrumentation, Message Center and Warning Chimes
Symptom Charts
