Timing Adjustment

Timing Adjustment

NOTE: Any time a roof opening panel motor is removed, the cables/mechanisms can experience free-play movement. It is important that the cables do not move. They are timed to be parallel with each other. If one or both are moved in either direction, they must be re-timed.

NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.

1. Remove the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass.

2. Remove the roof opening panel motor. For additional information, refer to Roof Opening Panel Motor Roof Opening Panel Motor.

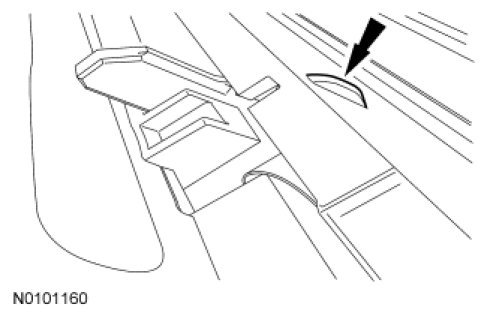

3. Using a flat-blade screwdriver, push on the back of the drive slide until it contacts the crimp on the guide.





4. Reinstall the roof opening panel motor, but do not carry out the roof opening panel motor initialization. For additional information, refer to Roof Opening Panel Motor Roof Opening Panel Motor. Programming and Relearning

5. Reinstall the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass.

6. Initialize the roof opening panel motor. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.
