Intake Manifold

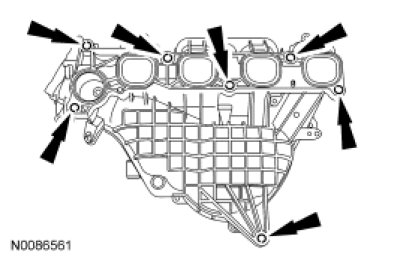

NOTE: The cylinder head side of the intake manifold is showing the location of the 7 bolts.

To install, tighten to 18 Nm (159 lb-in).
